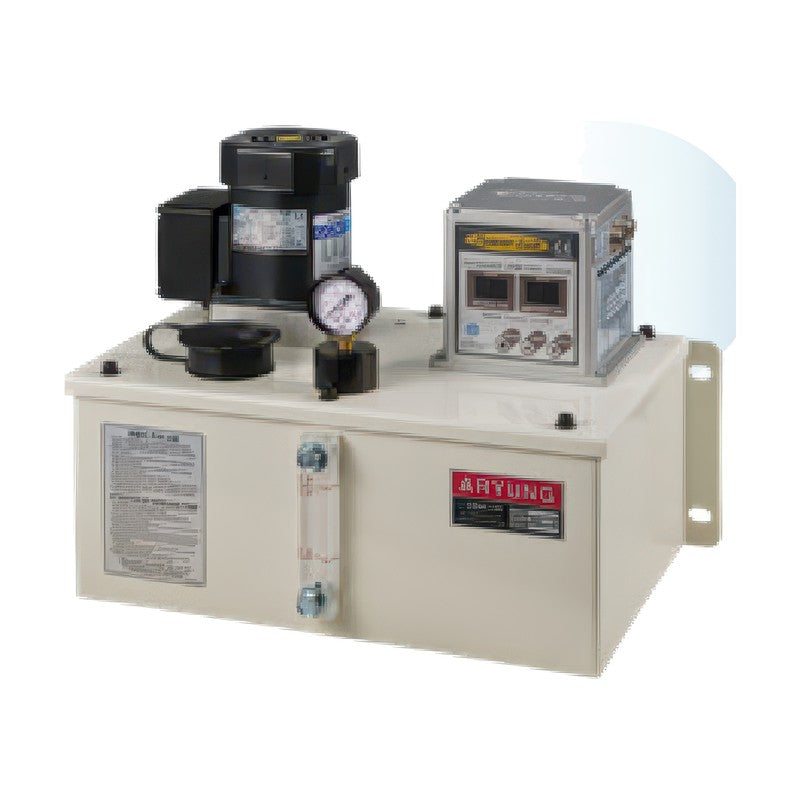

Aryung AMGP-03C/05C Digital Controller Oil Lubrication Unit (6-20 L Steel Tank)
Aryung AMGP-03C/05C Digital Controller Oil Lubrication Unit (6-20 L Steel Tank)
High-precision, high-flow motor gear pump unit with digital controller, designed to supply a fixed quantity of lubricant to each machine element.
Key features
- Used as a proportional pump or with ARD-340/350 and PVO metering valves as a quantitative pump (a pressure relief valve is required for quantitative use)
- Built-in relief valve for pressure adjustment; supplied with 6, 12 or 20 L steel tanks for wall (TY) or floor (TZ) mounting
- Includes FS-A level switch and PG-35K pressure gauge, pressure switch optional
- Intermittent duty only
Specifications
| Working pressure | 2.0 MPa |
|---|---|
| Pressure range | 0.8 ~ 2.5 MPa |
| Viscosity | 30 ~ 1000 cSt |
| Outlet | PT 1/8" (Ø6) |
| Motor | 3-phase 4-pole 50 W |
| Rated voltage / current 50 Hz | 200 V, 0.54 A |
| Rated voltage / current 60 Hz | 220 V, 0.6 A |
| J | 160 mm |
| AMGP-03C-T06 | Discharge volume: 250 (50 Hz) / 300 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200 V, 0.54 A | Rated voltage / current 60 Hz: 220 V, 0.6 A | Tank: 6.0 L | Net weight: 11 kg | A: 300 mm | B: 320 mm | C: 346 mm | D: 310 mm | E: 195 mm | F: 210 mm | G: 9.5 x 14.5 mm | H: 24 mm | J: 160 mm | |
| AMGP-03C-T12 | Discharge volume: 250 (50 Hz) / 300 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200 V, 0.54 A | Rated voltage / current 60 Hz: 220 V, 0.6 A | Tank: 12.0 L | Net weight: 13 kg | A: 363 mm | B: 386 mm | C: 416 mm | D: 373 mm | E: 234 mm | F: 240 mm | G: 11 x 16 mm | H: 24 mm | J: 160 mm | |
| AMGP-03C-T20 | Discharge volume: 250 (50 Hz) / 300 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200 V, 0.54 A | Rated voltage / current 60 Hz: 220 V, 0.6 A | Tank: 20.0 L | Net weight: 17 kg | A: 470 mm | B: 500 mm | C: 520 mm | D: 484 mm | E: 317 mm | F: 322 mm | G: 12 x 17 mm | H: 29 mm | J: 160 mm | |
| AMGP-05C-T06 | Discharge volume: 420 (50 Hz) / 500 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200 V, 0.54 A | Rated voltage / current 60 Hz: 220 V, 0.6 A | Tank: 6.0 L | Net weight: 11 kg | A: 300 mm | B: 320 mm | C: 346 mm | D: 310 mm | E: 195 mm | F: 210 mm | G: 9.5 x 14.5 mm | H: 24 mm | J: 160 mm | |
| AMGP-05C-T12 | Discharge volume: 420 (50 Hz) / 500 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200 V, 0.54 A | Rated voltage / current 60 Hz: 220 V, 0.6 A | Tank: 12.0 L | Net weight: 13 kg | A: 363 mm | B: 386 mm | C: 416 mm | D: 373 mm | E: 234 mm | F: 240 mm | G: 11 x 16 mm | H: 24 mm | J: 160 mm | |
| AMGP-05C-T20 | Discharge volume: 420 (50 Hz) / 500 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200 V, 0.54 A | Rated voltage / current 60 Hz: 220 V, 0.6 A | Tank: 20.0 L | Net weight: 17 kg | A: 470 mm | B: 500 mm | C: 520 mm | D: 484 mm | E: 317 mm | F: 322 mm | G: 12 x 17 mm | H: 29 mm | J: 160 mm |
Oil Lubrication PumpsAryung
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Aryung AMGP-03C/05C Digital Controller Oil Lubrication Unit (6-20 L Steel Tank)
Available part numbers (6)
AMGP-03C-T06, AMGP-03C-T12, AMGP-03C-T20, AMGP-05C-T06, AMGP-05C-T12, AMGP-05C-T20
How to order
Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Aryung
Oil Lubrication Pumps
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| AMGP-03C-T06 | Discharge volume: 250 (50 Hz) / 300 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200 V, 0.54 A | Rated voltage / current 60 Hz: 220 V, 0.6 A | Tank: 6.0 L | Net weight: 11 kg | A: 300 mm | B: 320 mm | C: 346 mm | D: 310 mm | E: 195 mm | F: 210 mm | G: 9.5 x 14.5 mm | H: 24 mm | J: 160 mm | ||
| AMGP-03C-T12 | Discharge volume: 250 (50 Hz) / 300 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200 V, 0.54 A | Rated voltage / current 60 Hz: 220 V, 0.6 A | Tank: 12.0 L | Net weight: 13 kg | A: 363 mm | B: 386 mm | C: 416 mm | D: 373 mm | E: 234 mm | F: 240 mm | G: 11 x 16 mm | H: 24 mm | J: 160 mm | ||
| AMGP-03C-T20 | Discharge volume: 250 (50 Hz) / 300 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200 V, 0.54 A | Rated voltage / current 60 Hz: 220 V, 0.6 A | Tank: 20.0 L | Net weight: 17 kg | A: 470 mm | B: 500 mm | C: 520 mm | D: 484 mm | E: 317 mm | F: 322 mm | G: 12 x 17 mm | H: 29 mm | J: 160 mm | ||
| AMGP-05C-T06 | Discharge volume: 420 (50 Hz) / 500 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200 V, 0.54 A | Rated voltage / current 60 Hz: 220 V, 0.6 A | Tank: 6.0 L | Net weight: 11 kg | A: 300 mm | B: 320 mm | C: 346 mm | D: 310 mm | E: 195 mm | F: 210 mm | G: 9.5 x 14.5 mm | H: 24 mm | J: 160 mm | ||
| AMGP-05C-T12 | Discharge volume: 420 (50 Hz) / 500 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200 V, 0.54 A | Rated voltage / current 60 Hz: 220 V, 0.6 A | Tank: 12.0 L | Net weight: 13 kg | A: 363 mm | B: 386 mm | C: 416 mm | D: 373 mm | E: 234 mm | F: 240 mm | G: 11 x 16 mm | H: 24 mm | J: 160 mm | ||
| AMGP-05C-T20 | Discharge volume: 420 (50 Hz) / 500 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200 V, 0.54 A | Rated voltage / current 60 Hz: 220 V, 0.6 A | Tank: 20.0 L | Net weight: 17 kg | A: 470 mm | B: 500 mm | C: 520 mm | D: 484 mm | E: 317 mm | F: 322 mm | G: 12 x 17 mm | H: 29 mm | J: 160 mm |
