• Aryung AMTP-1500-320LNVB Low-Noise Motor T-Rotor Trochoid Pump (1.5 kW, 39-46.8 L/min)
1 1

Aryung AMTP-1500-320LNVB Low-Noise Motor T-Rotor Trochoid Pump (1.5 kW, 39-46.8 L/min)

Aryung AMTP-1500-320LNVB Low-Noise Motor T-Rotor Trochoid Pump (1.5 kW, 39-46.8 L/min)

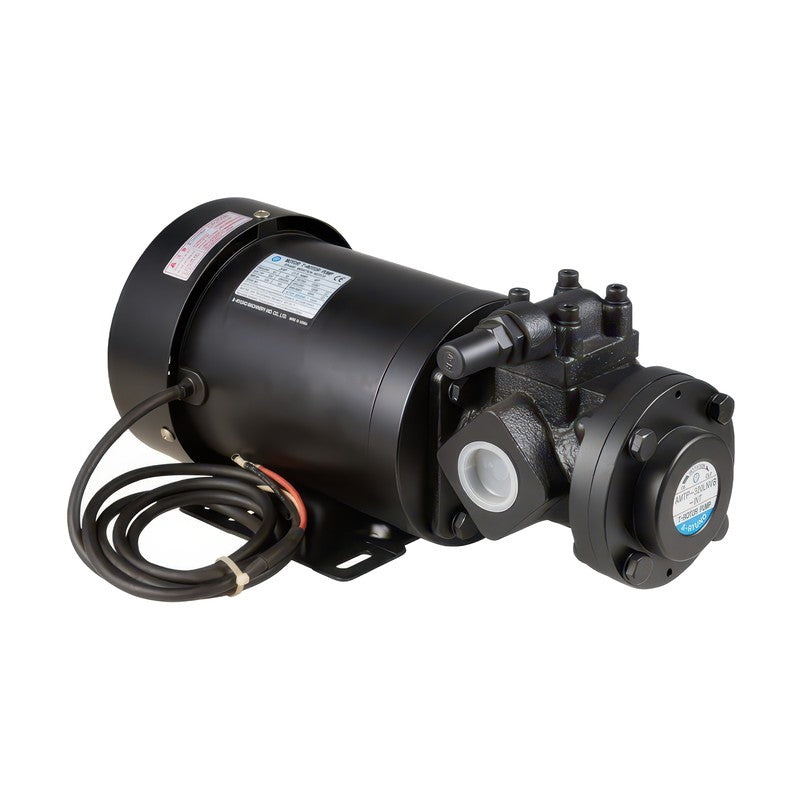

The AMTP-1500-320LNVB is a larger low-noise motor T-Rotor (trochoid) pump combining a 1.5 kW motor with the 320 pump and a pressure-adjustable relief valve.

Key features

  • Motor and pump combine and separate easily for maintenance and repair
  • Suitable for machine tool spindle oil circulation units, oil coolers and oil transfer lubrication devices. 3-phase 4-pole motor, insulation class F, IP44

Specifications

Flow @1500 rpm 39 L/min
Flow @1800 rpm 46.8 L/min
Max pressure 0.75 MPa
Motor 1.5 kW 3-phase 4P
Voltage 50Hz 200/380/415 V (6.3/3.3/3.1 A)
Voltage 60Hz 220/380/440 V (6.1/3.5/3.0 A)
Motor speed 1420 / 1720 rpm
Aryung AMTP-1500-320LNVB Low-Noise Motor T-Rotor Trochoid Pump (1.5 kW, 39-46.8 L/min) reference 2
AMTP-1500-320LNVB Flow @1500 rpm: 39 L/min | Flow @1800 rpm: 46.8 L/min | Max pressure: 0.75 MPa | Motor: 1.5 kW 3-phase 4P | Voltage 50Hz: 200/380/415 V (6.3/3.3/3.1 A) | Voltage 60Hz: 220/380/440 V (6.1/3.5/3.0 A) | Motor speed: 1420 / 1720 rpm
Trochoid PumpsAryung
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung AMTP-1500-320LNVB Low-Noise Motor T-Rotor Trochoid Pump (1.5 kW, 39-46.8 L/min)

Brand Aryung·Trochoid Pumps

Available part numbers (1)

AMTP-1500-320LNVB

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung AMTP-1500-320LNVB Low-Noise Motor T-Rotor Trochoid Pump (1.5 kW, 39-46.8 L/min) reference 2
0 selected
RFQ List (0)
Product codeSpec
AMTP-1500-320LNVBFlow @1500 rpm: 39 L/min | Flow @1800 rpm: 46.8 L/min | Max pressure: 0.75 MPa | Motor: 1.5 kW 3-phase 4P | Voltage 50Hz: 200/380/415 V (6.3/3.3/3.1 A) | Voltage 60Hz: 220/380/440 V (6.1/3.5/3.0 A) | Motor speed: 1420 / 1720 rpm
