Aryung AMTP-320/340 HFVB Motor T-Rotor Trochoid Pump (1.5/2.2 kW, 26-93.6 L/min)

Aryung AMTP-320/340 HFVB Motor T-Rotor Trochoid Pump (1.5/2.2 kW, 26-93.6 L/min)

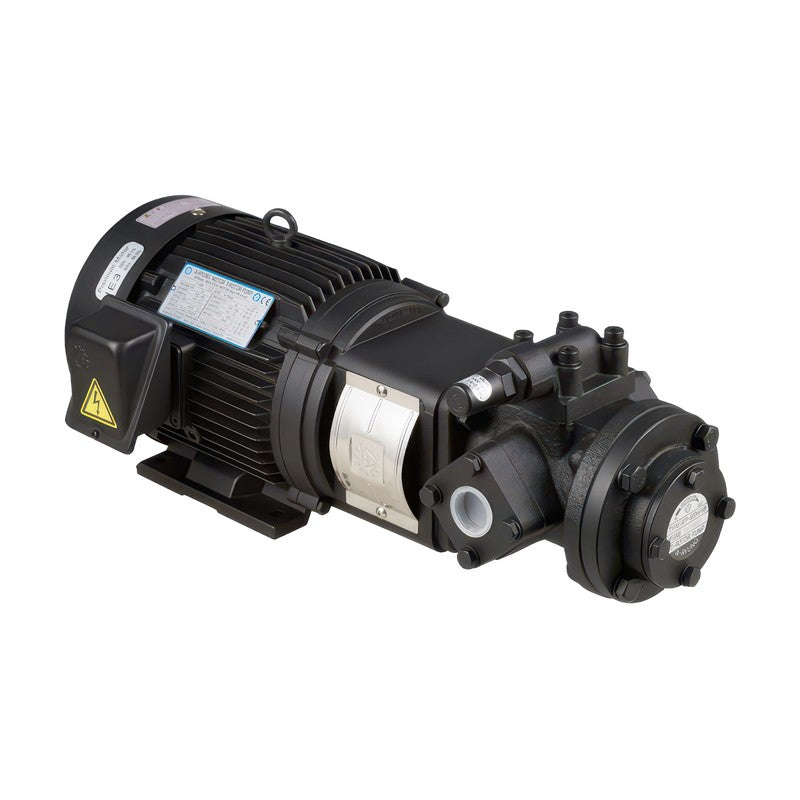

The AMTP-HFVB is a compact motor-and-pump unit using the flange-mounted ATP-320/340 T-Rotor (trochoid) pump; motor and pump combine and separate easily for maintenance.

Key features

  • With a fluorine (FKM) oil seal it can be used as a heat-medium pump up to 180 °C
  • A pressure-adjustable relief valve reduces load on motor and pump
  • Suitable for oil and fuel transfer and lubrication of machine tools and industrial machines. 3-phase motors 1.5 kW or 2.2 kW, 4-pole or 6-pole, insulation class F, IP44
Aryung AMTP-320/340 HFVB Motor T-Rotor Trochoid Pump (1.5/2.2 kW, 26-93.6 L/min) reference 2
AMTP-320HFVB Flow 4P 50/60Hz: 39 / 46.8 L/min | Max pressure 4P 1.5kW/2.2kW: 0.5 / 0.8 MPa | Flow 6P 50/60Hz: 26 / 31.2 L/min | Max pressure 6P 1.5kW/2.2kW: 0.8 / 1.2 MPa | Pump weight: 14.7 kg | Inlet/Outlet: PT 1" / PT 1"
AMTP-340HFVB Flow 4P 50/60Hz: 78 / 93.6 L/min | Max pressure 4P 1.5kW/2.2kW: 0.3 / 0.4 MPa | Flow 6P 50/60Hz: 52 / 62.4 L/min | Max pressure 6P 1.5kW/2.2kW: 0.4 / 0.6 MPa | Pump weight: 15.5 kg | Inlet/Outlet: PT 1 1/4" / PT 1"
Trochoid PumpsAryung
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung AMTP-320/340 HFVB Motor T-Rotor Trochoid Pump (1.5/2.2 kW, 26-93.6 L/min)

Brand Aryung·Trochoid Pumps

Available part numbers (2)

AMTP-320HFVB, AMTP-340HFVB

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung AMTP-320/340 HFVB Motor T-Rotor Trochoid Pump (1.5/2.2 kW, 26-93.6 L/min) reference 2
0 selected
RFQ List (0)
Product codeSpec
AMTP-320HFVBFlow 4P 50/60Hz: 39 / 46.8 L/min | Max pressure 4P 1.5kW/2.2kW: 0.5 / 0.8 MPa | Flow 6P 50/60Hz: 26 / 31.2 L/min | Max pressure 6P 1.5kW/2.2kW: 0.8 / 1.2 MPa | Pump weight: 14.7 kg | Inlet/Outlet: PT 1" / PT 1"
AMTP-340HFVBFlow 4P 50/60Hz: 78 / 93.6 L/min | Max pressure 4P 1.5kW/2.2kW: 0.3 / 0.4 MPa | Flow 6P 50/60Hz: 52 / 62.4 L/min | Max pressure 6P 1.5kW/2.2kW: 0.4 / 0.6 MPa | Pump weight: 15.5 kg | Inlet/Outlet: PT 1 1/4" / PT 1"
