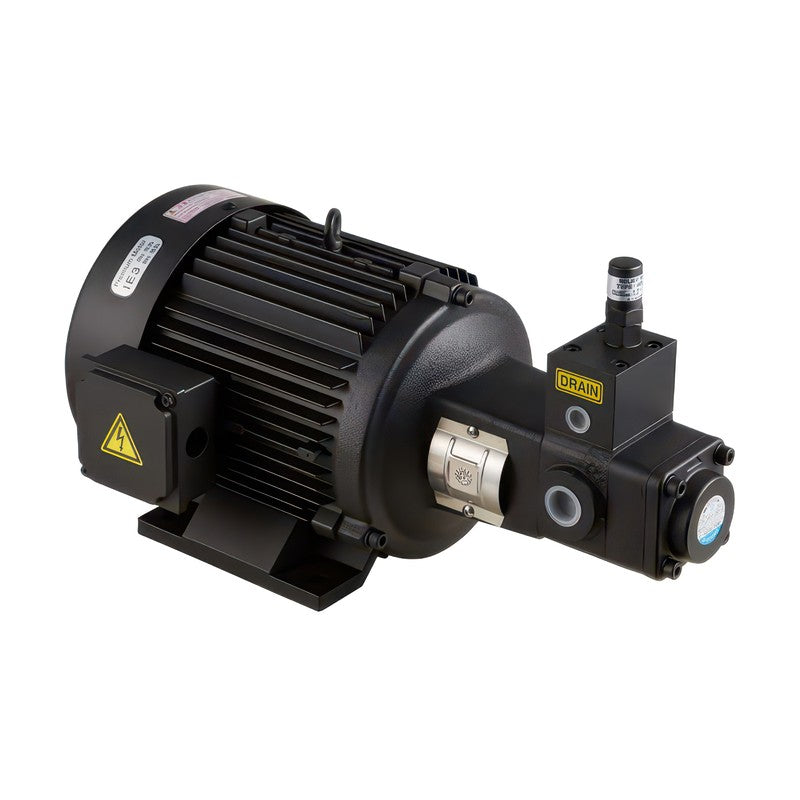

Aryung AMTP-CH Series Motor Trochoid Pump for High Pressure Coolant (3.0 kW, 30 bar)

Aryung AMTP-CH Series Motor Trochoid Pump for High Pressure Coolant (3.0 kW, 30 bar)

The AMTP-CH is a motor-integrated trochoid (internal gear) pump designed for high pressure coolant on machining centers and industrial machines.

Key features

  • It delivers 14 L/min (50 Hz) or 20 L/min (60 Hz) at up to 3.0 MPa with a 3.0 kW 4-pole motor
  • Available without valve, with pressure regulating valve (VB) or drain block (VD)
  • Always fit a suction filter of 150 mesh or finer; it can be combined with a cyclone filter system
  • Coolant 2-20 cSt at 40 °C, up to 80 °C; powder-alloy rotor (HRc 45), FKM/NBR oil seal, IP44, insulation class F

Specifications

Flow 50/60Hz 14 / 20 L/min
Max pressure 3.0 MPa
Motor 3.0 kW 3-phase 4P
Speed 50/60Hz 1420 / 1720 rpm
Voltage 50/60Hz 200/380 V / 220/380 V
Current 50/60Hz 15.2/8.8 A / 14.5/8.4 A
Valve options None / VB / VD
Viscosity 2-20 cSt at 40 °C
Aryung AMTP-CH Series Motor Trochoid Pump for High Pressure Coolant (3.0 kW, 30 bar) reference 2
AMTP-3000-216CH Flow 50/60Hz: 14 / 20 L/min | Max pressure: 3.0 MPa | Motor: 3.0 kW 3-phase 4P | Speed 50/60Hz: 1420 / 1720 rpm | Voltage 50/60Hz: 200/380 V / 220/380 V | Current 50/60Hz: 15.2/8.8 A / 14.5/8.4 A | Valve options: None / VB / VD | Viscosity: 2-20 cSt at 40 °C
High Pressure Coolant PumpsAryung
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung AMTP-CH Series Motor Trochoid Pump for High Pressure Coolant (3.0 kW, 30 bar)

Brand Aryung·High Pressure Coolant Pumps

Available part numbers (1)

AMTP-3000-216CH

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung AMTP-CH Series Motor Trochoid Pump for High Pressure Coolant (3.0 kW, 30 bar) reference 2
0 selected
RFQ List (0)
Product codeSpec
AMTP-3000-216CHFlow 50/60Hz: 14 / 20 L/min | Max pressure: 3.0 MPa | Motor: 3.0 kW 3-phase 4P | Speed 50/60Hz: 1420 / 1720 rpm | Voltage 50/60Hz: 200/380 V / 220/380 V | Current 50/60Hz: 15.2/8.8 A / 14.5/8.4 A | Valve options: None / VB / VD | Viscosity: 2-20 cSt at 40 °C
