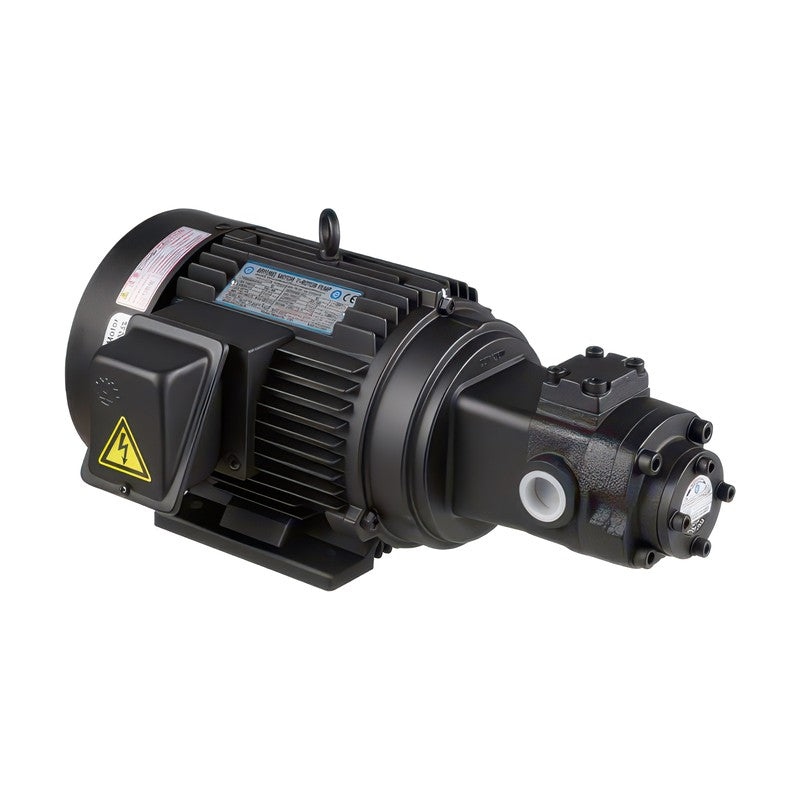

Aryung AMTP-HA Series Motor T-Rotor Trochoid Pump (400-1500 W, 6.3-35.6 L/min)

Aryung AMTP-HA Series Motor T-Rotor Trochoid Pump (400-1500 W, 6.3-35.6 L/min)

The AMTP-HA is a compact motor-and-pump unit using the ATP-HA T-Rotor (trochoid) pump, with few installation restrictions and easy combination and separation of motor and pump for maintenance.

Key features

  • Double oil seals give excellent durability, and an optional FKM seal allows heat-medium use up to 180 °C
  • Optional relief valve (VB) or drain block (VD)
  • Suitable for oil and fuel transfer, lubrication and hydraulic systems of machine tools and industrial machines. 3-phase 4-pole motors of 400 W, 750 W or 1500 W (200/380/415 V 50 Hz, 220/380/440 V 60 Hz), IP44
Aryung AMTP-HA Series Motor T-Rotor Trochoid Pump (400-1500 W, 6.3-35.6 L/min) reference 2Aryung AMTP-HA Series Motor T-Rotor Trochoid Pump (400-1500 W, 6.3-35.6 L/min) reference 3
AMTP-204HA Without relief valve | Flow @1500 rpm: 6.3 L/min | Flow @1800 rpm: 7.5 L/min | Max pressure 50Hz 400W/750W/1500W: 2.15 / 3.0 / 3.0 MPa | Max pressure 60Hz 400W/750W/1500W: 1.6 / 3.0 / 3.0 MPa | Pump weight: 3.6 kg | Dim B: 7 mm | Dim C: 82.5 mm | Inlet/Outlet: PT 1/2" / PT 1/2"
AMTP-204HAVB With relief valve | Flow @1500 rpm: 6.3 L/min | Flow @1800 rpm: 7.5 L/min | Max pressure 50Hz 400W/750W/1500W: 2.15 / 3.0 / 3.0 MPa | Max pressure 60Hz 400W/750W/1500W: 1.6 / 3.0 / 3.0 MPa | Pump weight: 3.6 kg | Dim B: 7 mm | Dim C: 82.5 mm | Inlet/Outlet: PT 1/2" / PT 1/2"
AMTP-204HAVD With relief valve drain block | Flow @1500 rpm: 6.3 L/min | Flow @1800 rpm: 7.5 L/min | Max pressure 50Hz 400W/750W/1500W: 2.15 / 3.0 / 3.0 MPa | Max pressure 60Hz 400W/750W/1500W: 1.6 / 3.0 / 3.0 MPa | Pump weight: 3.6 kg | Dim B: 7 mm | Dim C: 82.5 mm | Inlet/Outlet: PT 1/2" / PT 1/2"
AMTP-206HA Without relief valve | Flow @1500 rpm: 9.0 L/min | Flow @1800 rpm: 10.8 L/min | Max pressure 50Hz 400W/750W/1500W: 0.7 / 2.5 / 2.5 MPa | Max pressure 60Hz 400W/750W/1500W: 0.7 / 2.35 / 2.5 MPa | Pump weight: 3.6 kg | Dim B: 10 mm | Dim C: 85.5 mm | Inlet/Outlet: PT 1/2" / PT 1/2"
AMTP-206HAVB With relief valve | Flow @1500 rpm: 9.0 L/min | Flow @1800 rpm: 10.8 L/min | Max pressure 50Hz 400W/750W/1500W: 0.7 / 2.5 / 2.5 MPa | Max pressure 60Hz 400W/750W/1500W: 0.7 / 2.35 / 2.5 MPa | Pump weight: 3.6 kg | Dim B: 10 mm | Dim C: 85.5 mm | Inlet/Outlet: PT 1/2" / PT 1/2"
AMTP-206HAVD With relief valve drain block | Flow @1500 rpm: 9.0 L/min | Flow @1800 rpm: 10.8 L/min | Max pressure 50Hz 400W/750W/1500W: 0.7 / 2.5 / 2.5 MPa | Max pressure 60Hz 400W/750W/1500W: 0.7 / 2.35 / 2.5 MPa | Pump weight: 3.6 kg | Dim B: 10 mm | Dim C: 85.5 mm | Inlet/Outlet: PT 1/2" / PT 1/2"
AMTP-208HA Without relief valve | Flow @1500 rpm: 12.6 L/min | Flow @1800 rpm: 15.1 L/min | Max pressure 50Hz 400W/750W/1500W: 0.45 / 2.3 / 2.5 MPa | Max pressure 60Hz 400W/750W/1500W: 0.4 / 1.75 / 2.5 MPa | Pump weight: 3.7 kg | Dim B: 14 mm | Dim C: 89.5 mm | Inlet/Outlet: PT 1/2" / PT 1/2"
AMTP-208HAVB With relief valve | Flow @1500 rpm: 12.6 L/min | Flow @1800 rpm: 15.1 L/min | Max pressure 50Hz 400W/750W/1500W: 0.45 / 2.3 / 2.5 MPa | Max pressure 60Hz 400W/750W/1500W: 0.4 / 1.75 / 2.5 MPa | Pump weight: 3.7 kg | Dim B: 14 mm | Dim C: 89.5 mm | Inlet/Outlet: PT 1/2" / PT 1/2"
AMTP-208HAVD With relief valve drain block | Flow @1500 rpm: 12.6 L/min | Flow @1800 rpm: 15.1 L/min | Max pressure 50Hz 400W/750W/1500W: 0.45 / 2.3 / 2.5 MPa | Max pressure 60Hz 400W/750W/1500W: 0.4 / 1.75 / 2.5 MPa | Pump weight: 3.7 kg | Dim B: 14 mm | Dim C: 89.5 mm | Inlet/Outlet: PT 1/2" / PT 1/2"
AMTP-210HA Without relief valve | Flow @1500 rpm: 15.3 L/min | Flow @1800 rpm: 18.3 L/min | Max pressure 50Hz 400W/750W/1500W: 0.35 / 1.55 / 2.5 MPa | Max pressure 60Hz 400W/750W/1500W: 0.25 / 1.15 / 2.5 MPa | Pump weight: 3.8 kg | Dim B: 17 mm | Dim C: 92.5 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
AMTP-210HAVB With relief valve | Flow @1500 rpm: 15.3 L/min | Flow @1800 rpm: 18.3 L/min | Max pressure 50Hz 400W/750W/1500W: 0.35 / 1.55 / 2.5 MPa | Max pressure 60Hz 400W/750W/1500W: 0.25 / 1.15 / 2.5 MPa | Pump weight: 3.8 kg | Dim B: 17 mm | Dim C: 92.5 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
AMTP-210HAVD With relief valve drain block | Flow @1500 rpm: 15.3 L/min | Flow @1800 rpm: 18.3 L/min | Max pressure 50Hz 400W/750W/1500W: 0.35 / 1.55 / 2.5 MPa | Max pressure 60Hz 400W/750W/1500W: 0.25 / 1.15 / 2.5 MPa | Pump weight: 3.8 kg | Dim B: 17 mm | Dim C: 92.5 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
AMTP-212HA Without relief valve | Flow @1500 rpm: 18.0 L/min | Flow @1800 rpm: 21.6 L/min | Max pressure 50Hz 400W/750W/1500W: 0.2 / 1.35 / 2.0 MPa | Max pressure 60Hz 400W/750W/1500W: - / 0.85 / 2.0 MPa | Pump weight: 4.0 kg | Dim B: 20 mm | Dim C: 95.5 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
AMTP-212HAVB With relief valve | Flow @1500 rpm: 18.0 L/min | Flow @1800 rpm: 21.6 L/min | Max pressure 50Hz 400W/750W/1500W: 0.2 / 1.35 / 2.0 MPa | Max pressure 60Hz 400W/750W/1500W: - / 0.85 / 2.0 MPa | Pump weight: 4.0 kg | Dim B: 20 mm | Dim C: 95.5 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
AMTP-212HAVD With relief valve drain block | Flow @1500 rpm: 18.0 L/min | Flow @1800 rpm: 21.6 L/min | Max pressure 50Hz 400W/750W/1500W: 0.2 / 1.35 / 2.0 MPa | Max pressure 60Hz 400W/750W/1500W: - / 0.85 / 2.0 MPa | Pump weight: 4.0 kg | Dim B: 20 mm | Dim C: 95.5 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
AMTP-216HA Without relief valve | Flow @1500 rpm: 24.3 L/min | Flow @1800 rpm: 29.1 L/min | Max pressure 50Hz 400W/750W/1500W: - / 0.85 / 2.0 MPa | Max pressure 60Hz 400W/750W/1500W: - / 0.55 / 1.95 MPa | Pump weight: 4.2 kg | Dim B: 27 mm | Dim C: 102.5 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
AMTP-216HAVB With relief valve | Flow @1500 rpm: 24.3 L/min | Flow @1800 rpm: 29.1 L/min | Max pressure 50Hz 400W/750W/1500W: - / 0.85 / 2.0 MPa | Max pressure 60Hz 400W/750W/1500W: - / 0.55 / 1.95 MPa | Pump weight: 4.2 kg | Dim B: 27 mm | Dim C: 102.5 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
AMTP-216HAVD With relief valve drain block | Flow @1500 rpm: 24.3 L/min | Flow @1800 rpm: 29.1 L/min | Max pressure 50Hz 400W/750W/1500W: - / 0.85 / 2.0 MPa | Max pressure 60Hz 400W/750W/1500W: - / 0.55 / 1.95 MPa | Pump weight: 4.2 kg | Dim B: 27 mm | Dim C: 102.5 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
AMTP-220HA Without relief valve | Flow @1500 rpm: 29.7 L/min | Flow @1800 rpm: 35.6 L/min | Max pressure 50Hz 400W/750W/1500W: - / 0.55 / 1.55 MPa | Max pressure 60Hz 400W/750W/1500W: - / 0.35 / 1.4 MPa | Pump weight: 4.5 kg | Dim B: 33 mm | Dim C: 108.5 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
AMTP-220HAVB With relief valve | Flow @1500 rpm: 29.7 L/min | Flow @1800 rpm: 35.6 L/min | Max pressure 50Hz 400W/750W/1500W: - / 0.55 / 1.55 MPa | Max pressure 60Hz 400W/750W/1500W: - / 0.35 / 1.4 MPa | Pump weight: 4.5 kg | Dim B: 33 mm | Dim C: 108.5 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
AMTP-220HAVD With relief valve drain block | Flow @1500 rpm: 29.7 L/min | Flow @1800 rpm: 35.6 L/min | Max pressure 50Hz 400W/750W/1500W: - / 0.55 / 1.55 MPa | Max pressure 60Hz 400W/750W/1500W: - / 0.35 / 1.4 MPa | Pump weight: 4.5 kg | Dim B: 33 mm | Dim C: 108.5 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
Trochoid PumpsAryung
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung AMTP-HA Series Motor T-Rotor Trochoid Pump (400-1500 W, 6.3-35.6 L/min)

Brand Aryung·Trochoid Pumps

Available part numbers (21)

AMTP-204HA, AMTP-204HAVB, AMTP-204HAVD, AMTP-206HA, AMTP-206HAVB, AMTP-206HAVD, AMTP-208HA, AMTP-208HAVB, AMTP-208HAVD, AMTP-210HA + 11 more — see full table ↓
