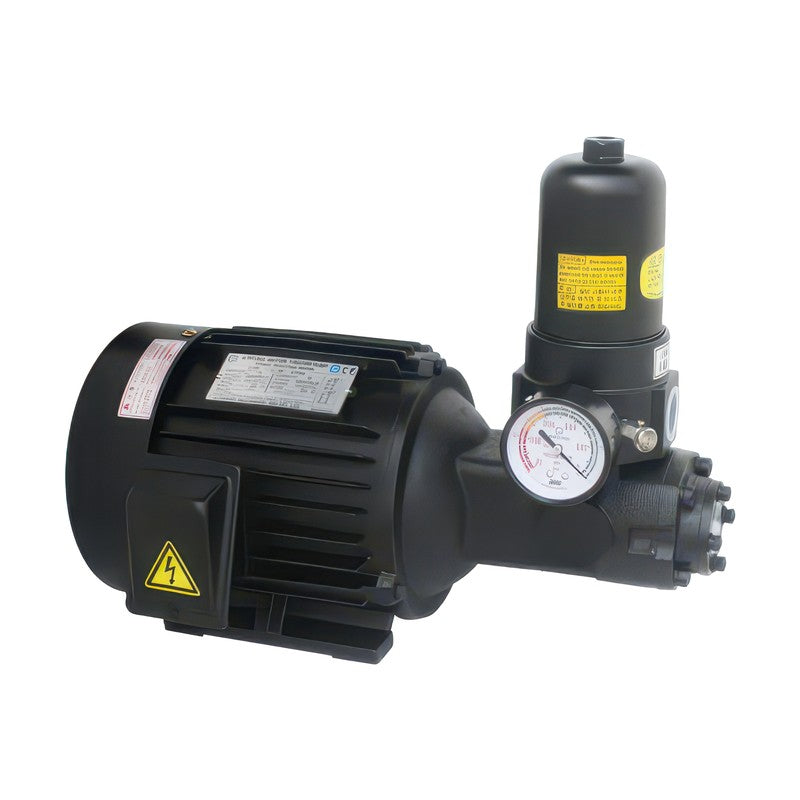

Aryung AMTP-HAVBF Series Motor T-Rotor Trochoid Pump with Built-in Suction Filter (6.3-35.6 L/min)

Aryung AMTP-HAVBF Series Motor T-Rotor Trochoid Pump with Built-in Suction Filter (6.3-35.6 L/min)

The AMTP-HAVBF motor T-Rotor (trochoid) pump has its own built-in suction filter, so no separate filter device is needed; it always handles clean fluid, preventing rotor wear and extending pump life.

Key features

  • The filter has a vacuum gauge (green normal, yellow caution, red clean/replace) and a washable, reusable element
  • Double oil seals and a pressure-adjustable relief valve are standard
  • Suitable for oil and fuel transfer and lubrication of machine tools and industrial machines. 3-phase 4-pole motors 400/750/1500 W, IP44
Aryung AMTP-HAVBF Series Motor T-Rotor Trochoid Pump with Built-in Suction Filter (6.3-35.6 L/min) reference 2
AMTP-204HAVBF With relief valve and built-in suction filter | Flow @1500 rpm: 6.3 L/min | Flow @1800 rpm: 7.5 L/min | Max pressure 50Hz 400W/750W/1500W: 1.5 / 1.5 / 1.5 MPa | Max pressure 60Hz 400W/750W/1500W: 1.5 / 1.5 / 1.5 MPa | Pump weight: 7.2 kg | Dim B: 7 mm | Dim C: 94.5 mm | Inlet/Outlet: PT 1/2" / PT 1/2"
AMTP-206HAVBF With relief valve and built-in suction filter | Flow @1500 rpm: 9.0 L/min | Flow @1800 rpm: 10.8 L/min | Max pressure 50Hz 400W/750W/1500W: 0.7 / 1.5 / 1.5 MPa | Max pressure 60Hz 400W/750W/1500W: 0.7 / 1.5 / 1.5 MPa | Pump weight: 7.2 kg | Dim B: 10 mm | Dim C: 97.5 mm | Inlet/Outlet: PT 1/2" / PT 1/2"
AMTP-208HAVBF With relief valve and built-in suction filter | Flow @1500 rpm: 12.6 L/min | Flow @1800 rpm: 15.1 L/min | Max pressure 50Hz 400W/750W/1500W: 0.45 / 1.5 / 1.5 MPa | Max pressure 60Hz 400W/750W/1500W: 0.4 / 1.5 / 1.5 MPa | Pump weight: 7.3 kg | Dim B: 14 mm | Dim C: 101.5 mm | Inlet/Outlet: PT 1/2" / PT 1/2"
AMTP-210HAVBF With relief valve and built-in suction filter | Flow @1500 rpm: 15.3 L/min | Flow @1800 rpm: 18.3 L/min | Max pressure 50Hz 400W/750W/1500W: 0.35 / 1.5 / 1.5 MPa | Max pressure 60Hz 400W/750W/1500W: 0.25 / 1.15 / 1.5 MPa | Pump weight: 7.4 kg | Dim B: 17 mm | Dim C: 104.5 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
AMTP-212HAVBF With relief valve and built-in suction filter | Flow @1500 rpm: 18.0 L/min | Flow @1800 rpm: 21.6 L/min | Max pressure 50Hz 400W/750W/1500W: 0.2 / 1.5 / 1.5 MPa | Max pressure 60Hz 400W/750W/1500W: - / 0.85 / 1.5 MPa | Pump weight: 7.6 kg | Dim B: 20 mm | Dim C: 107.5 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
AMTP-216HAVBF With relief valve and built-in suction filter | Flow @1500 rpm: 24.3 L/min | Flow @1800 rpm: 29.1 L/min | Max pressure 50Hz 400W/750W/1500W: - / 0.85 / 1.5 MPa | Max pressure 60Hz 400W/750W/1500W: - / 0.55 / 1.5 MPa | Pump weight: 7.8 kg | Dim B: 27 mm | Dim C: 114.5 mm | Inlet/Outlet: PT 1" / PT 1"
AMTP-220HAVBF With relief valve and built-in suction filter | Flow @1500 rpm: 29.7 L/min | Flow @1800 rpm: 35.6 L/min | Max pressure 50Hz 400W/750W/1500W: - / 0.55 / 1.5 MPa | Max pressure 60Hz 400W/750W/1500W: - / 0.35 / 1.4 MPa | Pump weight: 8.1 kg | Dim B: 33 mm | Dim C: 120.5 mm | Inlet/Outlet: PT 1" / PT 1"
Trochoid PumpsAryung
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung AMTP-HAVBF Series Motor T-Rotor Trochoid Pump with Built-in Suction Filter (6.3-35.6 L/min)

Brand Aryung·Trochoid Pumps

Available part numbers (7)

AMTP-204HAVBF, AMTP-206HAVBF, AMTP-208HAVBF, AMTP-210HAVBF, AMTP-212HAVBF, AMTP-216HAVBF, AMTP-220HAVBF

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung AMTP-HAVBF Series Motor T-Rotor Trochoid Pump with Built-in Suction Filter (6.3-35.6 L/min) reference 2
0 selected
RFQ List (0)
Product codeSpec
AMTP-204HAVBFWith relief valve and built-in suction filter | Flow @1500 rpm: 6.3 L/min | Flow @1800 rpm: 7.5 L/min | Max pressure 50Hz 400W/750W/1500W: 1.5 / 1.5 / 1.5 MPa | Max pressure 60Hz 400W/750W/1500W: 1.5 / 1.5 / 1.5 MPa | Pump weight: 7.2 kg | Dim B: 7 mm | Dim C: 94.5 mm | Inlet/Outlet: PT 1/2" / PT 1/2"
AMTP-206HAVBFWith relief valve and built-in suction filter | Flow @1500 rpm: 9.0 L/min | Flow @1800 rpm: 10.8 L/min | Max pressure 50Hz 400W/750W/1500W: 0.7 / 1.5 / 1.5 MPa | Max pressure 60Hz 400W/750W/1500W: 0.7 / 1.5 / 1.5 MPa | Pump weight: 7.2 kg | Dim B: 10 mm | Dim C: 97.5 mm | Inlet/Outlet: PT 1/2" / PT 1/2"
AMTP-208HAVBFWith relief valve and built-in suction filter | Flow @1500 rpm: 12.6 L/min | Flow @1800 rpm: 15.1 L/min | Max pressure 50Hz 400W/750W/1500W: 0.45 / 1.5 / 1.5 MPa | Max pressure 60Hz 400W/750W/1500W: 0.4 / 1.5 / 1.5 MPa | Pump weight: 7.3 kg | Dim B: 14 mm | Dim C: 101.5 mm | Inlet/Outlet: PT 1/2" / PT 1/2"
AMTP-210HAVBFWith relief valve and built-in suction filter | Flow @1500 rpm: 15.3 L/min | Flow @1800 rpm: 18.3 L/min | Max pressure 50Hz 400W/750W/1500W: 0.35 / 1.5 / 1.5 MPa | Max pressure 60Hz 400W/750W/1500W: 0.25 / 1.15 / 1.5 MPa | Pump weight: 7.4 kg | Dim B: 17 mm | Dim C: 104.5 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
AMTP-212HAVBFWith relief valve and built-in suction filter | Flow @1500 rpm: 18.0 L/min | Flow @1800 rpm: 21.6 L/min | Max pressure 50Hz 400W/750W/1500W: 0.2 / 1.5 / 1.5 MPa | Max pressure 60Hz 400W/750W/1500W: - / 0.85 / 1.5 MPa | Pump weight: 7.6 kg | Dim B: 20 mm | Dim C: 107.5 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
AMTP-216HAVBFWith relief valve and built-in suction filter | Flow @1500 rpm: 24.3 L/min | Flow @1800 rpm: 29.1 L/min | Max pressure 50Hz 400W/750W/1500W: - / 0.85 / 1.5 MPa | Max pressure 60Hz 400W/750W/1500W: - / 0.55 / 1.5 MPa | Pump weight: 7.8 kg | Dim B: 27 mm | Dim C: 114.5 mm | Inlet/Outlet: PT 1" / PT 1"
AMTP-220HAVBFWith relief valve and built-in suction filter | Flow @1500 rpm: 29.7 L/min | Flow @1800 rpm: 35.6 L/min | Max pressure 50Hz 400W/750W/1500W: - / 0.55 / 1.5 MPa | Max pressure 60Hz 400W/750W/1500W: - / 0.35 / 1.4 MPa | Pump weight: 8.1 kg | Dim B: 33 mm | Dim C: 120.5 mm | Inlet/Outlet: PT 1" / PT 1"
