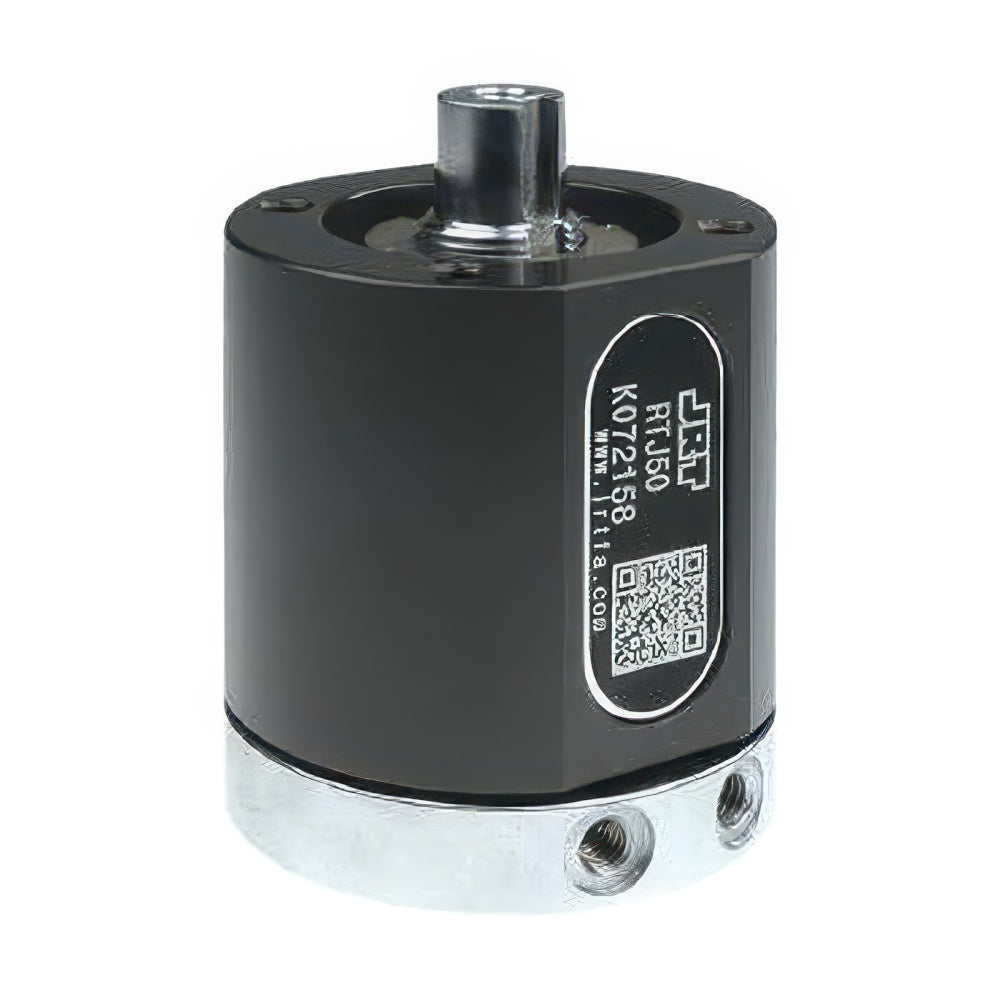

JRT RTJ Rotary Joint (Air Rotation Supply Unit)

JRT RTJ Rotary Joint (Air Rotation Supply Unit)

Rotary air distributor that supplies air to continuously rotating pneumatic actuators while preventing air-hose twisting.

Key features

  • Supplies air to rotating pneumatic equipment without hose entanglement
  • For low-speed rotation below 100 rpm due to packing characteristics
  • Simple structure for easy mounting
  • Two built-in ball bearings; no extra bearing needed when combined with grippers
  • Note: RTJ is not a rotary cylinder

Specifications

Operating pressure 3 to 7 bar
Ambient temperature -5 to 60 °C
Max. speed 100 rpm
Media Air
Type General type
RTJ50 Outer diameter: 50 mm | Weight: 0.44 kg | Port size: 2x2-M5 | Max. payload: 2.4 kg | Load torque (0-5 bar): 0.2 to 0.4 N·m
RTJ70S Outer diameter: 70 mm | Weight: 1.46 kg | Port size: 2-M5 (rotating side), 2-PF(G)1/8 (fixed side) | Max. payload: 4 kg | Load torque (0-5 bar): 0.45 to 0.7 N·m
Rotary JointsJRT
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JRT RTJ Rotary Joint (Air Rotation Supply Unit)

Brand JRT·Rotary Joints

Available part numbers (2)

RTJ50, RTJ70S

How to order

Send the JRT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RTJ50Outer diameter: 50 mm | Weight: 0.44 kg | Port size: 2x2-M5 | Max. payload: 2.4 kg | Load torque (0-5 bar): 0.2 to 0.4 N·m
RTJ70SOuter diameter: 70 mm | Weight: 1.46 kg | Port size: 2-M5 (rotating side), 2-PF(G)1/8 (fixed side) | Max. payload: 4 kg | Load torque (0-5 bar): 0.45 to 0.7 N·m
