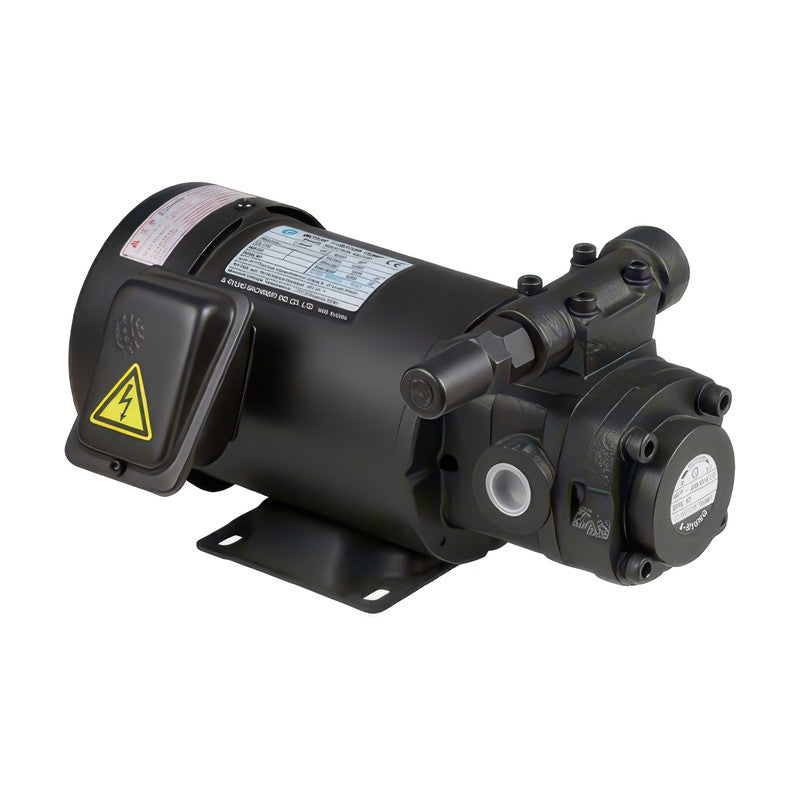

Aryung AMTP-LN Series Low-Noise Motor T-Rotor Trochoid Pump (200-700 W, 6.3-35.6 L/min)

Aryung AMTP-LN Series Low-Noise Motor T-Rotor Trochoid Pump (200-700 W, 6.3-35.6 L/min)

The AMTP-LN is a compact motor T-Rotor (trochoid) pump with a low-noise structure; motor and pump combine and separate easily for maintenance and repair.

Key features

  • A pressure-adjustable relief valve is fitted in standard (VA), output-side (VB) or drain (VT) configuration
  • Suitable for machine tool spindle oil circulation units, oil coolers and oil transfer lubrication devices
  • Handles oils of 2-100 cSt at 40 °C, up to 80 °C with NBR seal (180 °C with FKM). 3-phase 4-pole motors 200/400/700 W, IP44
Aryung AMTP-LN Series Low-Noise Motor T-Rotor Trochoid Pump (200-700 W, 6.3-35.6 L/min) reference 2
AMTP-204LNVA Relief valve standard type | Flow @1500 rpm: 6.3 L/min | Flow @1800 rpm: 7.5 L/min | Max pressure 50Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Relief valve: standard type | Dim B: 7 mm | Dim C: 125 mm | Port: PT 1/2"
AMTP-204LNVB Relief valve output side | Flow @1500 rpm: 6.3 L/min | Flow @1800 rpm: 7.5 L/min | Max pressure 50Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Relief valve: output side | Dim B: 7 mm | Dim C: 69 mm | Port: PT 1/2"
AMTP-204LNVT Relief valve drain type | Flow @1500 rpm: 6.3 L/min | Flow @1800 rpm: 7.5 L/min | Max pressure 50Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Relief valve: drain type | Dim B: 7 mm | Dim C: 69 mm | Port: PT 1/2"
AMTP-206LNVA Relief valve standard type | Flow @1500 rpm: 9.0 L/min | Flow @1800 rpm: 10.8 L/min | Max pressure 50Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Relief valve: standard type | Dim B: 10 mm | Dim C: 125 mm | Port: PT 1/2"
AMTP-206LNVB Relief valve output side | Flow @1500 rpm: 9.0 L/min | Flow @1800 rpm: 10.8 L/min | Max pressure 50Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Relief valve: output side | Dim B: 10 mm | Dim C: 72 mm | Port: PT 1/2"
AMTP-206LNVT Relief valve drain type | Flow @1500 rpm: 9.0 L/min | Flow @1800 rpm: 10.8 L/min | Max pressure 50Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Relief valve: drain type | Dim B: 10 mm | Dim C: 72 mm | Port: PT 1/2"
AMTP-208LNVA Relief valve standard type | Flow @1500 rpm: 12.6 L/min | Flow @1800 rpm: 15.1 L/min | Max pressure 50Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Relief valve: standard type | Dim B: 14 mm | Dim C: 125 mm | Port: PT 1/2"
AMTP-208LNVB Relief valve output side | Flow @1500 rpm: 12.6 L/min | Flow @1800 rpm: 15.1 L/min | Max pressure 50Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Relief valve: output side | Dim B: 14 mm | Dim C: 76 mm | Port: PT 1/2"
AMTP-208LNVT Relief valve drain type | Flow @1500 rpm: 12.6 L/min | Flow @1800 rpm: 15.1 L/min | Max pressure 50Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: 0.4 / 0.6 / 0.6 MPa | Relief valve: drain type | Dim B: 14 mm | Dim C: 76 mm | Port: PT 1/2"
AMTP-210LNVA Relief valve standard type | Flow @1500 rpm: 15.3 L/min | Flow @1800 rpm: 18.3 L/min | Max pressure 50Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Relief valve: standard type | Dim B: 17 mm | Dim C: 125 mm | Port: PT 3/4"
AMTP-210LNVB Relief valve output side | Flow @1500 rpm: 15.3 L/min | Flow @1800 rpm: 18.3 L/min | Max pressure 50Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Relief valve: output side | Dim B: 17 mm | Dim C: 79 mm | Port: PT 3/4"
AMTP-210LNVT Relief valve drain type | Flow @1500 rpm: 15.3 L/min | Flow @1800 rpm: 18.3 L/min | Max pressure 50Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Relief valve: drain type | Dim B: 17 mm | Dim C: 79 mm | Port: PT 3/4"
AMTP-212LNVA Relief valve standard type | Flow @1500 rpm: 18.0 L/min | Flow @1800 rpm: 21.6 L/min | Max pressure 50Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Relief valve: standard type | Dim B: 20 mm | Dim C: 125 mm | Port: PT 3/4"
AMTP-212LNVB Relief valve output side | Flow @1500 rpm: 18.0 L/min | Flow @1800 rpm: 21.6 L/min | Max pressure 50Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Relief valve: output side | Dim B: 20 mm | Dim C: 82 mm | Port: PT 3/4"
AMTP-212LNVT Relief valve drain type | Flow @1500 rpm: 18.0 L/min | Flow @1800 rpm: 21.6 L/min | Max pressure 50Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Relief valve: drain type | Dim B: 20 mm | Dim C: 82 mm | Port: PT 3/4"
AMTP-216LNVA Relief valve standard type | Flow @1500 rpm: 24.3 L/min | Flow @1800 rpm: 29.1 L/min | Max pressure 50Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Relief valve: standard type | Dim B: 27 mm | Dim C: 125 mm | Port: PT 3/4"
AMTP-216LNVB Relief valve output side | Flow @1500 rpm: 24.3 L/min | Flow @1800 rpm: 29.1 L/min | Max pressure 50Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Relief valve: output side | Dim B: 27 mm | Dim C: 89 mm | Port: PT 3/4"
AMTP-216LNVT Relief valve drain type | Flow @1500 rpm: 24.3 L/min | Flow @1800 rpm: 29.1 L/min | Max pressure 50Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: - / 0.6 / 0.6 MPa | Relief valve: drain type | Dim B: 27 mm | Dim C: 89 mm | Port: PT 3/4"
AMTP-220LNVA Relief valve standard type | Flow @1500 rpm: 29.7 L/min | Flow @1800 rpm: 35.6 L/min | Max pressure 50Hz 200W/400W/700W: - / - / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: - / - / 0.6 MPa | Relief valve: standard type | Dim B: 33 mm | Dim C: 125 mm | Port: PT 3/4"
AMTP-220LNVB Relief valve output side | Flow @1500 rpm: 29.7 L/min | Flow @1800 rpm: 35.6 L/min | Max pressure 50Hz 200W/400W/700W: - / - / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: - / - / 0.6 MPa | Relief valve: output side | Dim B: 33 mm | Dim C: 95 mm | Port: PT 3/4"
AMTP-220LNVT Relief valve drain type | Flow @1500 rpm: 29.7 L/min | Flow @1800 rpm: 35.6 L/min | Max pressure 50Hz 200W/400W/700W: - / - / 0.6 MPa | Max pressure 60Hz 200W/400W/700W: - / - / 0.6 MPa | Relief valve: drain type | Dim B: 33 mm | Dim C: 95 mm | Port: PT 3/4"
Trochoid PumpsAryung
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung AMTP-LN Series Low-Noise Motor T-Rotor Trochoid Pump (200-700 W, 6.3-35.6 L/min)

Brand Aryung·Trochoid Pumps

Available part numbers (21)

AMTP-204LNVA, AMTP-204LNVB, AMTP-204LNVT, AMTP-206LNVA, AMTP-206LNVB, AMTP-206LNVT, AMTP-208LNVA, AMTP-208LNVB, AMTP-208LNVT, AMTP-210LNVA + 11 more — see full table ↓

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung AMTP-LN Series Low-Noise Motor T-Rotor Trochoid Pump (200-700 W, 6.3-35.6 L/min) reference 2
