• Aryung AMTP-MS/MT Series Compact Motor T-Rotor Trochoid Pump (100/200 W, 2.4-8.1 L/min)
1 1

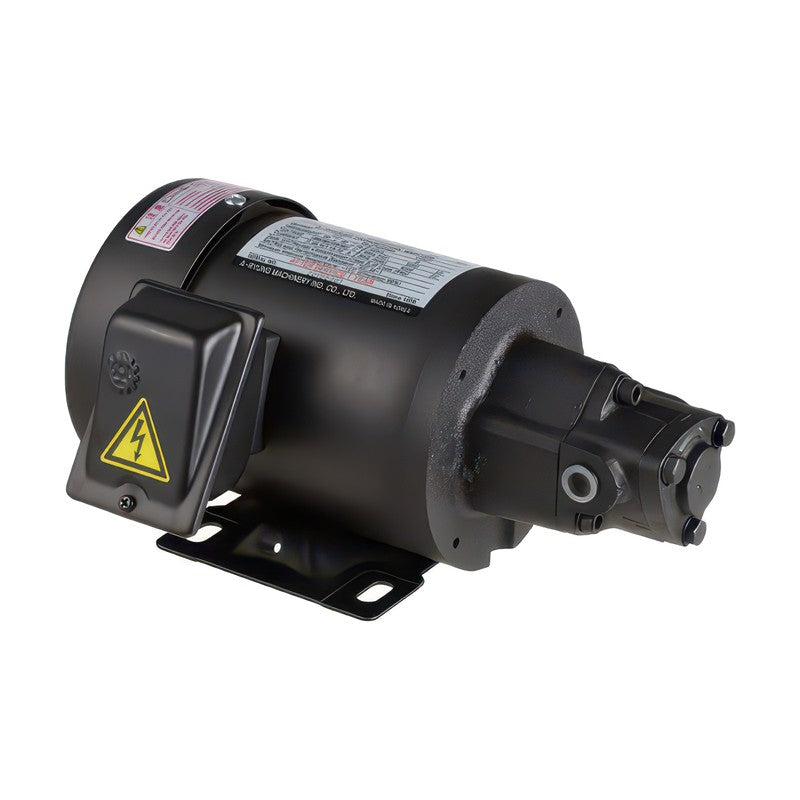

Aryung AMTP-MS/MT Series Compact Motor T-Rotor Trochoid Pump (100/200 W, 2.4-8.1 L/min)

Aryung AMTP-MS/MT Series Compact Motor T-Rotor Trochoid Pump (100/200 W, 2.4-8.1 L/min)

The AMTP-MS (3-phase) and AMTP-MT (1-phase) are compact motor-integrated T-Rotor (trochoid) pumps; motor and pump combine and separate easily for simple maintenance.

Key features

  • An optional pressure-adjustable relief valve (VB) and flange mounting (F) are available
  • Suitable for lubrication and fluid transfer on machine tools and industrial machines
  • Motor output 100 W or 200 W, 4-pole, IP44, insulation class B; 3-phase 200/380 V 50 Hz and 220/380/440 V 60 Hz, 1-phase 220 V 60 Hz (200 W)
  • Oils 20-220 cSt at 40 °C, up to 80 °C (NBR seal, FKM optional)
Aryung AMTP-MS/MT Series Compact Motor T-Rotor Trochoid Pump (100/200 W, 2.4-8.1 L/min) reference 2Aryung AMTP-MS/MT Series Compact Motor T-Rotor Trochoid Pump (100/200 W, 2.4-8.1 L/min) reference 3
AMTP-11MS 3-phase motor | Flow @1500 rpm: 2.4 L/min | Flow @1800 rpm: 2.9 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: - | Motor: 3-phase | Net weight: 8.2 / 8.5 kg | Dim A: 27.5 mm | Dim TL: 265 mm | Inlet/Outlet: PT 1/8" / PT 1/8"
AMTP-11MT 1-phase motor | Flow @1500 rpm: 2.4 L/min | Flow @1800 rpm: 2.9 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: - | Motor: 1-phase | Net weight: 8.2 / 8.5 kg | Dim A: 27.5 mm | Dim TL: 265 mm | Inlet/Outlet: PT 1/8" / PT 1/8"
AMTP-11MSVB 3-phase motor, with relief valve | Flow @1500 rpm: 2.4 L/min | Flow @1800 rpm: 2.9 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: - | Motor: 3-phase | Net weight: 8.2 / 8.5 kg | Dim A: 27.5 mm | Dim TL: 278.5 mm | Inlet/Outlet: PT 1/8" / PT 1/8"
AMTP-11MTVB 1-phase motor, with relief valve | Flow @1500 rpm: 2.4 L/min | Flow @1800 rpm: 2.9 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: - | Motor: 1-phase | Net weight: 8.2 / 8.5 kg | Dim A: 27.5 mm | Dim TL: 278.5 mm | Inlet/Outlet: PT 1/8" / PT 1/8"
AMTP-12MS 3-phase motor | Flow @1500 rpm: 3.7 L/min | Flow @1800 rpm: 4.5 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: 0.5 MPa | Motor: 3-phase | Net weight: 8.2 / 8.6 kg | Dim A: 30.5 mm | Dim TL: 268 mm | Inlet/Outlet: PT 1/4" / PT 1/4"
AMTP-12MT 1-phase motor | Flow @1500 rpm: 3.7 L/min | Flow @1800 rpm: 4.5 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: 0.5 MPa | Motor: 1-phase | Net weight: 8.2 / 8.6 kg | Dim A: 30.5 mm | Dim TL: 268 mm | Inlet/Outlet: PT 1/4" / PT 1/4"
AMTP-12MSVB 3-phase motor, with relief valve | Flow @1500 rpm: 3.7 L/min | Flow @1800 rpm: 4.5 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: 0.5 MPa | Motor: 3-phase | Net weight: 8.2 / 8.6 kg | Dim A: 30.5 mm | Dim TL: 281.5 mm | Inlet/Outlet: PT 1/4" / PT 1/4"
AMTP-12MTVB 1-phase motor, with relief valve | Flow @1500 rpm: 3.7 L/min | Flow @1800 rpm: 4.5 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: 0.5 MPa | Motor: 1-phase | Net weight: 8.2 / 8.6 kg | Dim A: 30.5 mm | Dim TL: 281.5 mm | Inlet/Outlet: PT 1/4" / PT 1/4"
AMTP-13MS 3-phase motor | Flow @1500 rpm: 6.7 L/min | Flow @1800 rpm: 8.1 L/min | Max pressure 100W: - | Max pressure 200W: 0.5 MPa | Motor: 3-phase | Net weight: 8.6 / 8.7 kg | Dim A: 45 mm | Dim TL: 282.5 mm | Inlet/Outlet: PT 3/8" / PT 3/8"
AMTP-13MT 1-phase motor | Flow @1500 rpm: 6.7 L/min | Flow @1800 rpm: 8.1 L/min | Max pressure 100W: - | Max pressure 200W: 0.5 MPa | Motor: 1-phase | Net weight: 8.6 / 8.7 kg | Dim A: 45 mm | Dim TL: 282.5 mm | Inlet/Outlet: PT 3/8" / PT 3/8"
AMTP-13MSVB 3-phase motor, with relief valve | Flow @1500 rpm: 6.7 L/min | Flow @1800 rpm: 8.1 L/min | Max pressure 100W: - | Max pressure 200W: 0.5 MPa | Motor: 3-phase | Net weight: 8.6 / 8.7 kg | Dim A: 45 mm | Dim TL: 296 mm | Inlet/Outlet: PT 3/8" / PT 3/8"
AMTP-13MTVB 1-phase motor, with relief valve | Flow @1500 rpm: 6.7 L/min | Flow @1800 rpm: 8.1 L/min | Max pressure 100W: - | Max pressure 200W: 0.5 MPa | Motor: 1-phase | Net weight: 8.6 / 8.7 kg | Dim A: 45 mm | Dim TL: 296 mm | Inlet/Outlet: PT 3/8" / PT 3/8"
AMTP-12MSFVB 3-phase motor, flange mount, with relief valve | Flow @1500 rpm: 3.7 L/min | Flow @1800 rpm: 4.5 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: 0.5 MPa | Motor: 3-phase | Net weight: 8.2 / 8.6 kg | Dim A: 30.5 mm | Dim TL: 249 mm | Inlet/Outlet: PT 1/4" / PT 1/4"
AMTP-13MSFVB 3-phase motor, flange mount, with relief valve | Flow @1500 rpm: 6.7 L/min | Flow @1800 rpm: 8.1 L/min | Max pressure 100W: - | Max pressure 200W: 0.5 MPa | Motor: 3-phase | Net weight: 8.6 / 8.7 kg | Dim A: 45 mm | Dim TL: 264 mm | Inlet/Outlet: PT 3/8" / PT 3/8"
Trochoid PumpsAryung
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung AMTP-MS/MT Series Compact Motor T-Rotor Trochoid Pump (100/200 W, 2.4-8.1 L/min)

Brand Aryung·Trochoid Pumps

Available part numbers (14)

AMTP-11MS, AMTP-11MT, AMTP-11MSVB, AMTP-11MTVB, AMTP-12MS, AMTP-12MT, AMTP-12MSVB, AMTP-12MTVB, AMTP-13MS, AMTP-13MT + 4 more — see full table ↓

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung AMTP-MS/MT Series Compact Motor T-Rotor Trochoid Pump (100/200 W, 2.4-8.1 L/min) reference 2Aryung AMTP-MS/MT Series Compact Motor T-Rotor Trochoid Pump (100/200 W, 2.4-8.1 L/min) reference 3
0 selected
RFQ List (0)
Product codeSpec
AMTP-11MS3-phase motor | Flow @1500 rpm: 2.4 L/min | Flow @1800 rpm: 2.9 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: - | Motor: 3-phase | Net weight: 8.2 / 8.5 kg | Dim A: 27.5 mm | Dim TL: 265 mm | Inlet/Outlet: PT 1/8" / PT 1/8"
AMTP-11MT1-phase motor | Flow @1500 rpm: 2.4 L/min | Flow @1800 rpm: 2.9 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: - | Motor: 1-phase | Net weight: 8.2 / 8.5 kg | Dim A: 27.5 mm | Dim TL: 265 mm | Inlet/Outlet: PT 1/8" / PT 1/8"
AMTP-11MSVB3-phase motor, with relief valve | Flow @1500 rpm: 2.4 L/min | Flow @1800 rpm: 2.9 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: - | Motor: 3-phase | Net weight: 8.2 / 8.5 kg | Dim A: 27.5 mm | Dim TL: 278.5 mm | Inlet/Outlet: PT 1/8" / PT 1/8"
AMTP-11MTVB1-phase motor, with relief valve | Flow @1500 rpm: 2.4 L/min | Flow @1800 rpm: 2.9 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: - | Motor: 1-phase | Net weight: 8.2 / 8.5 kg | Dim A: 27.5 mm | Dim TL: 278.5 mm | Inlet/Outlet: PT 1/8" / PT 1/8"
AMTP-12MS3-phase motor | Flow @1500 rpm: 3.7 L/min | Flow @1800 rpm: 4.5 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: 0.5 MPa | Motor: 3-phase | Net weight: 8.2 / 8.6 kg | Dim A: 30.5 mm | Dim TL: 268 mm | Inlet/Outlet: PT 1/4" / PT 1/4"
AMTP-12MT1-phase motor | Flow @1500 rpm: 3.7 L/min | Flow @1800 rpm: 4.5 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: 0.5 MPa | Motor: 1-phase | Net weight: 8.2 / 8.6 kg | Dim A: 30.5 mm | Dim TL: 268 mm | Inlet/Outlet: PT 1/4" / PT 1/4"
AMTP-12MSVB3-phase motor, with relief valve | Flow @1500 rpm: 3.7 L/min | Flow @1800 rpm: 4.5 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: 0.5 MPa | Motor: 3-phase | Net weight: 8.2 / 8.6 kg | Dim A: 30.5 mm | Dim TL: 281.5 mm | Inlet/Outlet: PT 1/4" / PT 1/4"
AMTP-12MTVB1-phase motor, with relief valve | Flow @1500 rpm: 3.7 L/min | Flow @1800 rpm: 4.5 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: 0.5 MPa | Motor: 1-phase | Net weight: 8.2 / 8.6 kg | Dim A: 30.5 mm | Dim TL: 281.5 mm | Inlet/Outlet: PT 1/4" / PT 1/4"
AMTP-13MS3-phase motor | Flow @1500 rpm: 6.7 L/min | Flow @1800 rpm: 8.1 L/min | Max pressure 100W: - | Max pressure 200W: 0.5 MPa | Motor: 3-phase | Net weight: 8.6 / 8.7 kg | Dim A: 45 mm | Dim TL: 282.5 mm | Inlet/Outlet: PT 3/8" / PT 3/8"
AMTP-13MT1-phase motor | Flow @1500 rpm: 6.7 L/min | Flow @1800 rpm: 8.1 L/min | Max pressure 100W: - | Max pressure 200W: 0.5 MPa | Motor: 1-phase | Net weight: 8.6 / 8.7 kg | Dim A: 45 mm | Dim TL: 282.5 mm | Inlet/Outlet: PT 3/8" / PT 3/8"
AMTP-13MSVB3-phase motor, with relief valve | Flow @1500 rpm: 6.7 L/min | Flow @1800 rpm: 8.1 L/min | Max pressure 100W: - | Max pressure 200W: 0.5 MPa | Motor: 3-phase | Net weight: 8.6 / 8.7 kg | Dim A: 45 mm | Dim TL: 296 mm | Inlet/Outlet: PT 3/8" / PT 3/8"
AMTP-13MTVB1-phase motor, with relief valve | Flow @1500 rpm: 6.7 L/min | Flow @1800 rpm: 8.1 L/min | Max pressure 100W: - | Max pressure 200W: 0.5 MPa | Motor: 1-phase | Net weight: 8.6 / 8.7 kg | Dim A: 45 mm | Dim TL: 296 mm | Inlet/Outlet: PT 3/8" / PT 3/8"
AMTP-12MSFVB3-phase motor, flange mount, with relief valve | Flow @1500 rpm: 3.7 L/min | Flow @1800 rpm: 4.5 L/min | Max pressure 100W: 0.5 MPa | Max pressure 200W: 0.5 MPa | Motor: 3-phase | Net weight: 8.2 / 8.6 kg | Dim A: 30.5 mm | Dim TL: 249 mm | Inlet/Outlet: PT 1/4" / PT 1/4"
AMTP-13MSFVB3-phase motor, flange mount, with relief valve | Flow @1500 rpm: 6.7 L/min | Flow @1800 rpm: 8.1 L/min | Max pressure 100W: - | Max pressure 200W: 0.5 MPa | Motor: 3-phase | Net weight: 8.6 / 8.7 kg | Dim A: 45 mm | Dim TL: 264 mm | Inlet/Outlet: PT 3/8" / PT 3/8"
