• Aryung AOL-4 Air-Oil Lubrication Unit
1 1

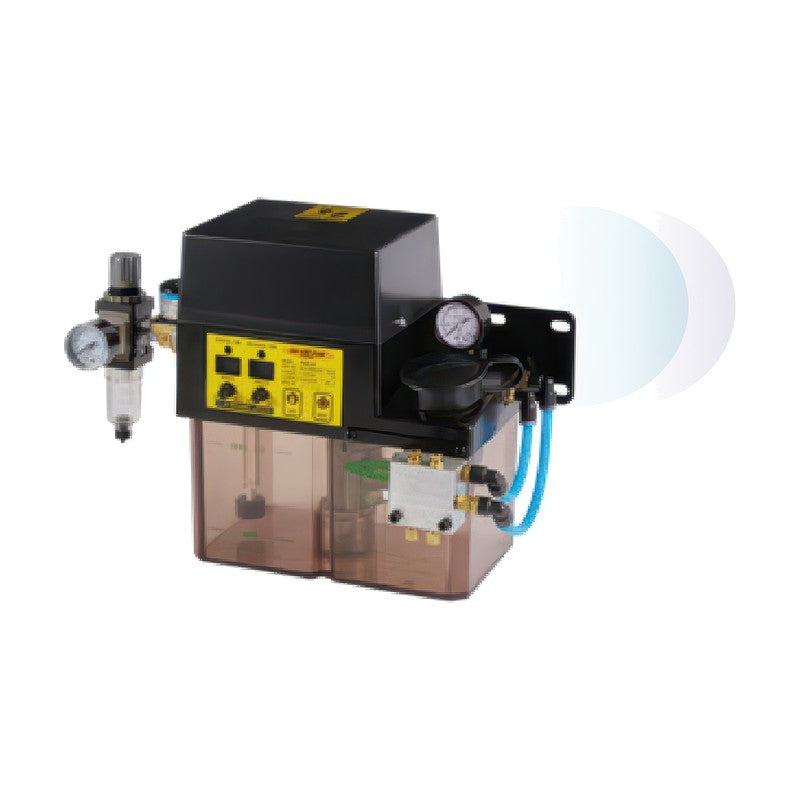

Aryung AOL-4 Air-Oil Lubrication Unit

Aryung AOL-4 Air-Oil Lubrication Unit

Air-oil lubrication unit giving excellent lubrication and cooling of super-high-speed spindle bearings.

Key features

  • Intermittent lubrication is supplied automatically by the built-in digital controller, and operating abnormalities are easy to detect and identify
  • The mixing valve that mixes and sprays air and oil is a fixed-quantity distribution valve, well suited to high-speed precision machinery

Specifications

Discharge volume 0.01 ~ 0.06 cc/stroke
Discharge points (air+oil) 2 ~ 5
Air pressure 0.3 ~ 0.5 MPa
Viscosity 10 ~ 100 cSt
Lubrication method measuring
Control method digital
Air inlet PT 1/4" (Ø8)
Air-oil outlet M8x1.0p (Ø4)
Aryung AOL-4 Air-Oil Lubrication Unit reference 2
AOL-4 Discharge volume: 0.01 ~ 0.06 cc/stroke | Discharge points (air+oil): 2 ~ 5 | Air pressure: 0.3 ~ 0.5 MPa | Viscosity: 10 ~ 100 cSt | Lubrication method: measuring | Control method: digital | Air inlet: PT 1/4" (Ø8) | Air-oil outlet: M8x1.0p (Ø4)
Oil Mist LubricationAryung
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung AOL-4 Air-Oil Lubrication Unit

Brand Aryung·Oil Mist Lubrication

Available part numbers (1)

AOL-4

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung AOL-4 Air-Oil Lubrication Unit reference 2
0 selected
RFQ List (0)
Product codeSpec
AOL-4Discharge volume: 0.01 ~ 0.06 cc/stroke | Discharge points (air+oil): 2 ~ 5 | Air pressure: 0.3 ~ 0.5 MPa | Viscosity: 10 ~ 100 cSt | Lubrication method: measuring | Control method: digital | Air inlet: PT 1/4" (Ø8) | Air-oil outlet: M8x1.0p (Ø4)
