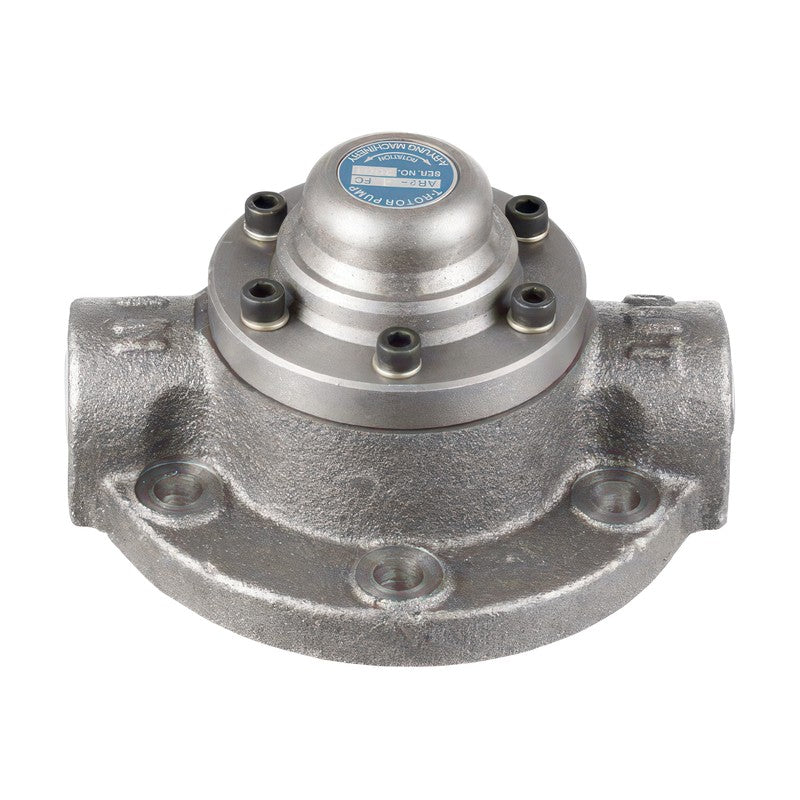

Aryung AR2-FC Series Reversible T-Rotor Trochoid Pump (4-21.6 L/min)

Aryung AR2-FC Series Reversible T-Rotor Trochoid Pump (4-21.6 L/min)

The AR2-FC is a reversible T-Rotor (trochoid) pump with constant suction and discharge directions regardless of the direction of rotation.

Key features

  • It is suited to supplying lubricating oil to reducers, refrigerators, compressors, railway vehicles, ship engines and machine tools
  • Handles oils of 20-220 cSt at 40 °C up to 80 °C
  • Cast iron body and cover, steel shaft, powder-steel rotor and NBR oil seal (13 x 30 x 8 mm)

Specifications

Allowable pressure 0.5 MPa
Speed range 500-2000 rpm
Aryung AR2-FC Series Reversible T-Rotor Trochoid Pump (4-21.6 L/min) reference 2
AR2-4FC Displacement: 4 cm3/rev | Flow @1000 rpm: 4 L/min | Flow @1800 rpm: 7.2 L/min | Allowable pressure: 0.5 MPa | Speed range: 500-2000 rpm | Weight: 4.6 kg | Dim A: 49 mm | Dim TL: 92 mm | Inlet/Outlet: PT 1/2" / PT 3/8"
AR2-8FC Displacement: 8 cm3/rev | Flow @1000 rpm: 8 L/min | Flow @1800 rpm: 14.4 L/min | Allowable pressure: 0.5 MPa | Speed range: 500-2000 rpm | Weight: 4.9 kg | Dim A: 59 mm | Dim TL: 102 mm | Inlet/Outlet: PT 3/4" / PT 1/2"
AR2-12FC Displacement: 12 cm3/rev | Flow @1000 rpm: 12 L/min | Flow @1800 rpm: 21.6 L/min | Allowable pressure: 0.5 MPa | Speed range: 500-2000 rpm | Weight: 5.2 kg | Dim A: 69 mm | Dim TL: 112 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
Trochoid PumpsAryung
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung AR2-FC Series Reversible T-Rotor Trochoid Pump (4-21.6 L/min)

Brand Aryung·Trochoid Pumps

Available part numbers (3)

AR2-4FC, AR2-8FC, AR2-12FC

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung AR2-FC Series Reversible T-Rotor Trochoid Pump (4-21.6 L/min) reference 2
0 selected
RFQ List (0)
Product codeSpec
AR2-4FCDisplacement: 4 cm3/rev | Flow @1000 rpm: 4 L/min | Flow @1800 rpm: 7.2 L/min | Allowable pressure: 0.5 MPa | Speed range: 500-2000 rpm | Weight: 4.6 kg | Dim A: 49 mm | Dim TL: 92 mm | Inlet/Outlet: PT 1/2" / PT 3/8"
AR2-8FCDisplacement: 8 cm3/rev | Flow @1000 rpm: 8 L/min | Flow @1800 rpm: 14.4 L/min | Allowable pressure: 0.5 MPa | Speed range: 500-2000 rpm | Weight: 4.9 kg | Dim A: 59 mm | Dim TL: 102 mm | Inlet/Outlet: PT 3/4" / PT 1/2"
AR2-12FCDisplacement: 12 cm3/rev | Flow @1000 rpm: 12 L/min | Flow @1800 rpm: 21.6 L/min | Allowable pressure: 0.5 MPa | Speed range: 500-2000 rpm | Weight: 5.2 kg | Dim A: 69 mm | Dim TL: 112 mm | Inlet/Outlet: PT 3/4" / PT 3/4"
