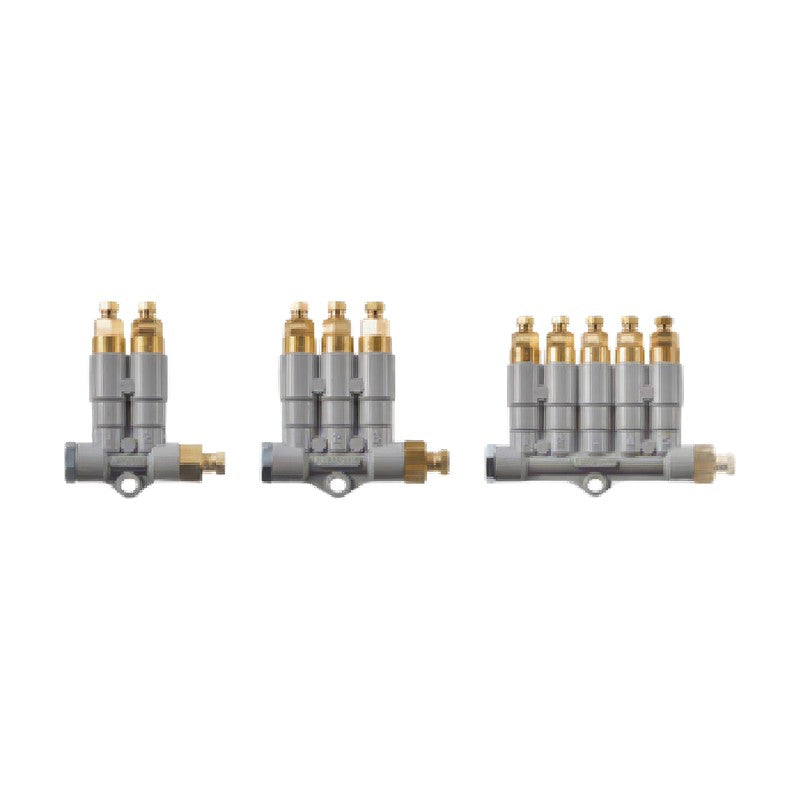

Aryung ARD-340/350 Series Measuring Distributor (2-5 Points)

Aryung ARD-340/350 Series Measuring Distributor (2-5 Points)

Fixed-quantity piston metering distributor for intermittent oil supply systems.

Key features

  • When the pump starts, the piston delivers the metered oil at main-line pressure (0.8-3.0 MPa) to the lubrication point; when pressure is released the piston returns and refills
  • Small flow error makes it suitable for precision lubrication systems
  • Each outlet takes a valve flow code 1-7 (0.03-0.6 cc) specified at order; main pipe M10x1.0p, branch M8x1.0p

Specifications

Working pressure 0.8 ~ 3.0 MPa
Main pipe M10x1.0p
Branch pipe M8x1.0p
Aryung ARD-340/350 Series Measuring Distributor (2-5 Points) reference 2Aryung ARD-340/350 Series Measuring Distributor (2-5 Points) reference 3
ARD-342 Series: 340 | Discharge points: 2 | Working pressure: 0.8 ~ 3.0 MPa | Main pipe: M10x1.0p | Branch pipe: M8x1.0p | Net weight: 115 g | A: 48 mm | B: 24 mm | C: - | D: 17 mm
ARD-343 Series: 340 | Discharge points: 3 | Working pressure: 0.8 ~ 3.0 MPa | Main pipe: M10x1.0p | Branch pipe: M8x1.0p | Net weight: 163 g | A: 65 mm | B: 32.5 mm | C: 17 mm | D: 34 mm
ARD-345 Series: 340 | Discharge points: 5 | Working pressure: 0.8 ~ 3.0 MPa | Main pipe: M10x1.0p | Branch pipe: M8x1.0p | Net weight: 249 g | A: 99 mm | B: 49.5 mm | C: 51 mm | D: 68 mm
ARD-352 Series: 350 | Discharge points: 2 | Working pressure: 0.8 ~ 3.0 MPa | Main pipe: M10x1.0p | Branch pipe: M8x1.0p | Net weight: 239 g | A: 45 mm | B: 22.5 mm | C: - | D: 17 mm
ARD-353 Series: 350 | Discharge points: 3 | Working pressure: 0.8 ~ 3.0 MPa | Main pipe: M10x1.0p | Branch pipe: M8x1.0p | Net weight: 314 g | A: 62 mm | B: 31 mm | C: - | D: 34 mm
ARD-355 Series: 350 | Discharge points: 5 | Working pressure: 0.8 ~ 3.0 MPa | Main pipe: M10x1.0p | Branch pipe: M8x1.0p | Net weight: 464 g | A: 95 mm | B: 47.5 mm | C: - | D: 68 mm
Lubrication DistributorsAryung
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung ARD-340/350 Series Measuring Distributor (2-5 Points)

Brand Aryung·Lubrication Distributors

Available part numbers (6)

ARD-342, ARD-343, ARD-345, ARD-352, ARD-353, ARD-355
