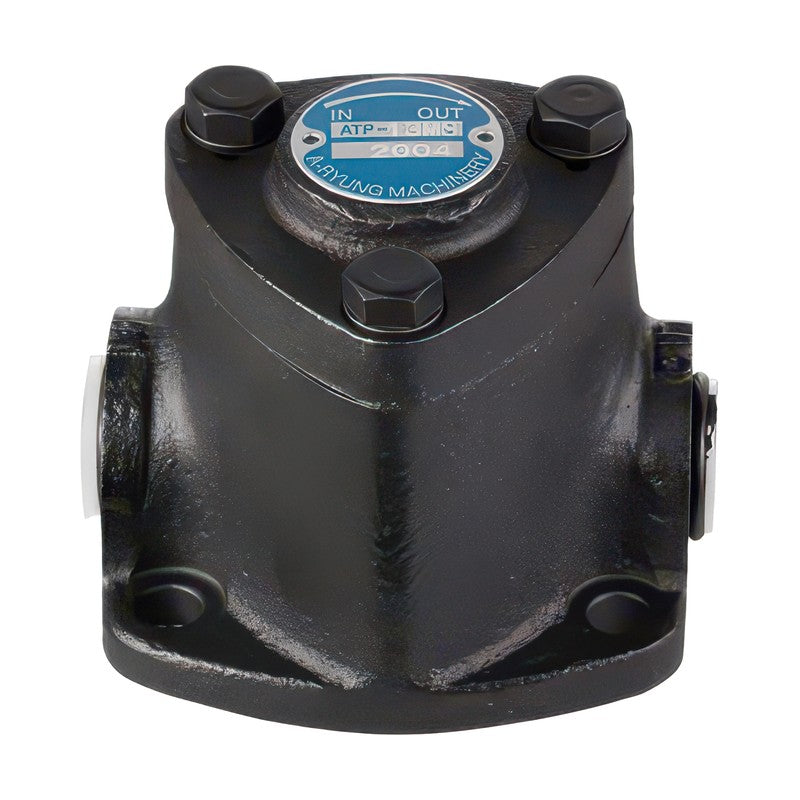

Aryung ATP-S / ATP-SVB Series Small T-Rotor Trochoid Pump (2.4-8.1 L/min)

Aryung ATP-S / ATP-SVB Series Small T-Rotor Trochoid Pump (2.4-8.1 L/min)

The ATP-S is a small T-Rotor (trochoid) gear pump mainly used to supply lubricating oil to machine tools, industrial machines and agricultural machines.

Key features

  • It rotates in one specified direction and can be driven by machine power or an electric motor
  • SVB versions have a built-in relief valve for easy pressure adjustment
  • Handles oils of 20-220 cSt at 40 °C up to 80 °C; cast iron body and cover, steel shaft, powder-steel rotor, NBR oil seal (8 x 22 x 7 mm)

Specifications

Allowable pressure 0.5 MPa
Speed range 300-2000 rpm
Aryung ATP-S / ATP-SVB Series Small T-Rotor Trochoid Pump (2.4-8.1 L/min) reference 2Aryung ATP-S / ATP-SVB Series Small T-Rotor Trochoid Pump (2.4-8.1 L/min) reference 3
ATP-11S Displacement: 1.6 cm3/rev | Flow @1500 rpm: 2.4 L/min | Flow @1800 rpm: 2.9 L/min | Allowable pressure: 0.5 MPa | Speed range: 300-2000 rpm | Relief valve: No | Weight: 0.7 kg | Dim A: 25.5 mm | Dim B: 11.5 mm | Dim C: 10 mm | Dim TL: 61 mm | Inlet/Outlet: PT 1/8" / PT 1/8"
ATP-12S Displacement: 2.5 cm3/rev | Flow @1500 rpm: 3.7 L/min | Flow @1800 rpm: 4.5 L/min | Allowable pressure: 0.5 MPa | Speed range: 300-2000 rpm | Relief valve: No | Weight: 0.8 kg | Dim A: 30.5 mm | Dim B: 11.5 mm | Dim C: 10 mm | Dim TL: 66 mm | Inlet/Outlet: PT 1/4" / PT 1/4"
ATP-13S Displacement: 4.5 cm3/rev | Flow @1500 rpm: 6.7 L/min | Flow @1800 rpm: 8.1 L/min | Allowable pressure: 0.5 MPa | Speed range: 300-2000 rpm | Relief valve: No | Weight: 1.0 kg | Dim A: 45 mm | Dim B: 5 mm | Dim C: 14.5 mm | Dim TL: 78.5 mm | Inlet/Outlet: PT 3/8" / PT 3/8"
ATP-11SVB With relief valve | Displacement: 1.6 cm3/rev | Flow @1500 rpm: 2.4 L/min | Flow @1800 rpm: 2.9 L/min | Allowable pressure: 0.5 MPa | Speed range: 300-2000 rpm | Relief valve: Yes | Weight: 1.0 kg | Dim A: 25.5 mm | Dim B: 11.5 mm | Dim C: 10 mm | Dim TL: 74 mm | Inlet/Outlet: PT 1/8" / PT 1/8"
ATP-12SVB With relief valve | Displacement: 2.5 cm3/rev | Flow @1500 rpm: 3.7 L/min | Flow @1800 rpm: 4.5 L/min | Allowable pressure: 0.5 MPa | Speed range: 300-2000 rpm | Relief valve: Yes | Weight: 1.0 kg | Dim A: 30.5 mm | Dim B: 11.5 mm | Dim C: 10 mm | Dim TL: 79 mm | Inlet/Outlet: PT 1/4" / PT 1/4"
ATP-13SVB With relief valve | Displacement: 4.5 cm3/rev | Flow @1500 rpm: 6.7 L/min | Flow @1800 rpm: 8.1 L/min | Allowable pressure: 0.5 MPa | Speed range: 300-2000 rpm | Relief valve: Yes | Weight: 1.1 kg | Dim A: 45 mm | Dim B: 5 mm | Dim C: 14.5 mm | Dim TL: 91.5 mm | Inlet/Outlet: PT 3/8" / PT 3/8"
Trochoid PumpsAryung
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung ATP-S / ATP-SVB Series Small T-Rotor Trochoid Pump (2.4-8.1 L/min)

Brand Aryung·Trochoid Pumps

Available part numbers (6)

ATP-11S, ATP-12S, ATP-13S, ATP-11SVB, ATP-12SVB, ATP-13SVB

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung ATP-S / ATP-SVB Series Small T-Rotor Trochoid Pump (2.4-8.1 L/min) reference 2Aryung ATP-S / ATP-SVB Series Small T-Rotor Trochoid Pump (2.4-8.1 L/min) reference 3
0 selected
RFQ List (0)
Product codeSpec
ATP-11SDisplacement: 1.6 cm3/rev | Flow @1500 rpm: 2.4 L/min | Flow @1800 rpm: 2.9 L/min | Allowable pressure: 0.5 MPa | Speed range: 300-2000 rpm | Relief valve: No | Weight: 0.7 kg | Dim A: 25.5 mm | Dim B: 11.5 mm | Dim C: 10 mm | Dim TL: 61 mm | Inlet/Outlet: PT 1/8" / PT 1/8"
ATP-12SDisplacement: 2.5 cm3/rev | Flow @1500 rpm: 3.7 L/min | Flow @1800 rpm: 4.5 L/min | Allowable pressure: 0.5 MPa | Speed range: 300-2000 rpm | Relief valve: No | Weight: 0.8 kg | Dim A: 30.5 mm | Dim B: 11.5 mm | Dim C: 10 mm | Dim TL: 66 mm | Inlet/Outlet: PT 1/4" / PT 1/4"
ATP-13SDisplacement: 4.5 cm3/rev | Flow @1500 rpm: 6.7 L/min | Flow @1800 rpm: 8.1 L/min | Allowable pressure: 0.5 MPa | Speed range: 300-2000 rpm | Relief valve: No | Weight: 1.0 kg | Dim A: 45 mm | Dim B: 5 mm | Dim C: 14.5 mm | Dim TL: 78.5 mm | Inlet/Outlet: PT 3/8" / PT 3/8"
ATP-11SVBWith relief valve | Displacement: 1.6 cm3/rev | Flow @1500 rpm: 2.4 L/min | Flow @1800 rpm: 2.9 L/min | Allowable pressure: 0.5 MPa | Speed range: 300-2000 rpm | Relief valve: Yes | Weight: 1.0 kg | Dim A: 25.5 mm | Dim B: 11.5 mm | Dim C: 10 mm | Dim TL: 74 mm | Inlet/Outlet: PT 1/8" / PT 1/8"
ATP-12SVBWith relief valve | Displacement: 2.5 cm3/rev | Flow @1500 rpm: 3.7 L/min | Flow @1800 rpm: 4.5 L/min | Allowable pressure: 0.5 MPa | Speed range: 300-2000 rpm | Relief valve: Yes | Weight: 1.0 kg | Dim A: 30.5 mm | Dim B: 11.5 mm | Dim C: 10 mm | Dim TL: 79 mm | Inlet/Outlet: PT 1/4" / PT 1/4"
ATP-13SVBWith relief valve | Displacement: 4.5 cm3/rev | Flow @1500 rpm: 6.7 L/min | Flow @1800 rpm: 8.1 L/min | Allowable pressure: 0.5 MPa | Speed range: 300-2000 rpm | Relief valve: Yes | Weight: 1.1 kg | Dim A: 45 mm | Dim B: 5 mm | Dim C: 14.5 mm | Dim TL: 91.5 mm | Inlet/Outlet: PT 3/8" / PT 3/8"
