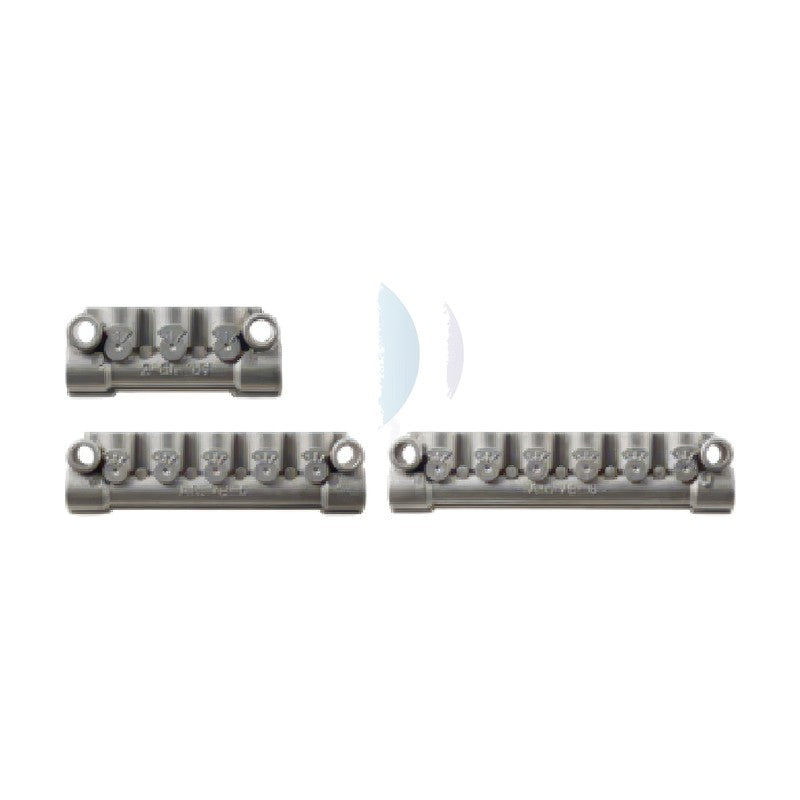

Aryung DB Series Proportional Oil Distributor (3-10 Ports)
Aryung DB Series Proportional Oil Distributor (3-10 Ports)
Proportional oil distribution block used in combination with resistance (proportional) lubrication pumps.
Key features
- Used together with AJB flow units, check valves and similar components
- Available with 3 to 10 ports in M8x1.0p or PT 1/8" thread versions; working pressure 0.8 MPa
Specifications
| Working pressure | 0.8 MPa |
|---|
| DB-3M | Points: 3 | Thread (main / branch): M8x1.0p | Working pressure: 0.8 MPa | A: - | B: - | C: 30 mm | E: 9.5 mm | F: 23.5 mm | G: 14 mm | N: 3 | N1: 1 | Net weight: 31 g | |
| DB-4M | Points: 4 | Thread (main / branch): M8x1.0p | Working pressure: 0.8 MPa | A: 16 mm | B: 36 mm | C: 48 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 4 | N1: 2 | Net weight: 65 g | |
| DB-5M | Points: 5 | Thread (main / branch): M8x1.0p | Working pressure: 0.8 MPa | A: 32 mm | B: 52 mm | C: 64 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 5 | N1: 2 | Net weight: 82 g | |
| DB-6M | Points: 6 | Thread (main / branch): M8x1.0p | Working pressure: 0.8 MPa | A: 48 mm | B: 68 mm | C: 80 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 6 | N1: 2 | Net weight: 102 g | |
| DB-7M | Points: 7 | Thread (main / branch): M8x1.0p | Working pressure: 0.8 MPa | A: 64 mm | B: 84 mm | C: 96 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 7 | N1: 2 | Net weight: 123 g | |
| DB-8M | Points: 8 | Thread (main / branch): M8x1.0p | Working pressure: 0.8 MPa | A: 80 mm | B: 100 mm | C: 112 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 8 | N1: 2 | Net weight: 145 g | |
| DB-10M | Points: 10 | Thread (main / branch): M8x1.0p | Working pressure: 0.8 MPa | A: 112 mm | B: 132 mm | C: 144 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 10 | N1: 2 | Net weight: 186 g | |
| DB-3PT | Points: 3 | Thread (main / branch): PT 1/8" | Working pressure: 0.8 MPa | A: - | B: - | C: 30 mm | E: 9.5 mm | F: 23.5 mm | G: 14 mm | N: 3 | N1: 1 | Net weight: 31 g | |
| DB-4PT | Points: 4 | Thread (main / branch): PT 1/8" | Working pressure: 0.8 MPa | A: 16 mm | B: 36 mm | C: 48 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 4 | N1: 2 | Net weight: 65 g | |
| DB-5PT | Points: 5 | Thread (main / branch): PT 1/8" | Working pressure: 0.8 MPa | A: 32 mm | B: 52 mm | C: 64 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 5 | N1: 2 | Net weight: 82 g | |
| DB-6PT | Points: 6 | Thread (main / branch): PT 1/8" | Working pressure: 0.8 MPa | A: 48 mm | B: 68 mm | C: 80 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 6 | N1: 2 | Net weight: 102 g | |
| DB-7PT | Points: 7 | Thread (main / branch): PT 1/8" | Working pressure: 0.8 MPa | A: 64 mm | B: 84 mm | C: 96 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 7 | N1: 2 | Net weight: 123 g | |
| DB-8PT | Points: 8 | Thread (main / branch): PT 1/8" | Working pressure: 0.8 MPa | A: 80 mm | B: 100 mm | C: 112 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 8 | N1: 2 | Net weight: 145 g | |
| DB-10PT | Points: 10 | Thread (main / branch): PT 1/8" | Working pressure: 0.8 MPa | A: 112 mm | B: 132 mm | C: 144 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 10 | N1: 2 | Net weight: 186 g |
Lubrication DistributorsAryung
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Aryung DB Series Proportional Oil Distributor (3-10 Ports)
Available part numbers (14)
DB-3M, DB-4M, DB-5M, DB-6M, DB-7M, DB-8M, DB-10M, DB-3PT, DB-4PT, DB-5PT + 4 more — see full table ↓
How to order
Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Aryung
Lubrication Distributors
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| DB-3M | Points: 3 | Thread (main / branch): M8x1.0p | Working pressure: 0.8 MPa | A: - | B: - | C: 30 mm | E: 9.5 mm | F: 23.5 mm | G: 14 mm | N: 3 | N1: 1 | Net weight: 31 g | ||
| DB-4M | Points: 4 | Thread (main / branch): M8x1.0p | Working pressure: 0.8 MPa | A: 16 mm | B: 36 mm | C: 48 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 4 | N1: 2 | Net weight: 65 g | ||
| DB-5M | Points: 5 | Thread (main / branch): M8x1.0p | Working pressure: 0.8 MPa | A: 32 mm | B: 52 mm | C: 64 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 5 | N1: 2 | Net weight: 82 g | ||
| DB-6M | Points: 6 | Thread (main / branch): M8x1.0p | Working pressure: 0.8 MPa | A: 48 mm | B: 68 mm | C: 80 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 6 | N1: 2 | Net weight: 102 g | ||
| DB-7M | Points: 7 | Thread (main / branch): M8x1.0p | Working pressure: 0.8 MPa | A: 64 mm | B: 84 mm | C: 96 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 7 | N1: 2 | Net weight: 123 g | ||
| DB-8M | Points: 8 | Thread (main / branch): M8x1.0p | Working pressure: 0.8 MPa | A: 80 mm | B: 100 mm | C: 112 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 8 | N1: 2 | Net weight: 145 g | ||
| DB-10M | Points: 10 | Thread (main / branch): M8x1.0p | Working pressure: 0.8 MPa | A: 112 mm | B: 132 mm | C: 144 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 10 | N1: 2 | Net weight: 186 g | ||
| DB-3PT | Points: 3 | Thread (main / branch): PT 1/8" | Working pressure: 0.8 MPa | A: - | B: - | C: 30 mm | E: 9.5 mm | F: 23.5 mm | G: 14 mm | N: 3 | N1: 1 | Net weight: 31 g | ||
| DB-4PT | Points: 4 | Thread (main / branch): PT 1/8" | Working pressure: 0.8 MPa | A: 16 mm | B: 36 mm | C: 48 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 4 | N1: 2 | Net weight: 65 g | ||
| DB-5PT | Points: 5 | Thread (main / branch): PT 1/8" | Working pressure: 0.8 MPa | A: 32 mm | B: 52 mm | C: 64 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 5 | N1: 2 | Net weight: 82 g | ||
| DB-6PT | Points: 6 | Thread (main / branch): PT 1/8" | Working pressure: 0.8 MPa | A: 48 mm | B: 68 mm | C: 80 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 6 | N1: 2 | Net weight: 102 g | ||
| DB-7PT | Points: 7 | Thread (main / branch): PT 1/8" | Working pressure: 0.8 MPa | A: 64 mm | B: 84 mm | C: 96 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 7 | N1: 2 | Net weight: 123 g | ||
| DB-8PT | Points: 8 | Thread (main / branch): PT 1/8" | Working pressure: 0.8 MPa | A: 80 mm | B: 100 mm | C: 112 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 8 | N1: 2 | Net weight: 145 g | ||
| DB-10PT | Points: 10 | Thread (main / branch): PT 1/8" | Working pressure: 0.8 MPa | A: 112 mm | B: 132 mm | C: 144 mm | E: 11 mm | F: 28 mm | G: 13 mm | N: 10 | N1: 2 | Net weight: 186 g |
