Aryung KD Tee Branch Block (M8/M10)

Aryung KD Tee Branch Block (M8/M10)

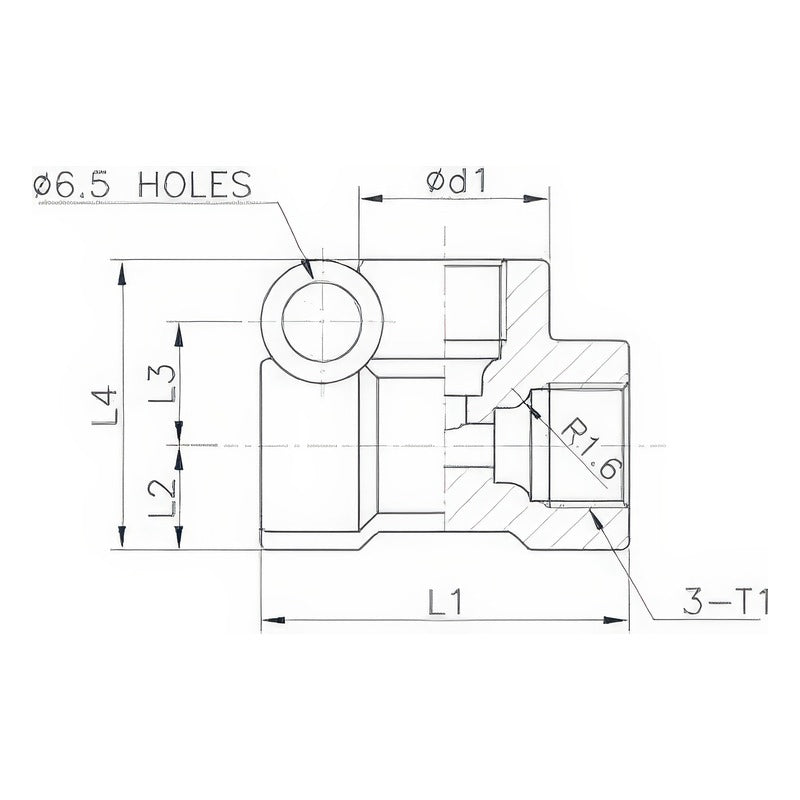

Zinc die-cast tee branch block with three ports and Ø6.5 mounting holes for splitting lubrication lines.

Key features

  • Material ZnDC

Specifications

d1 14 mm
L1 30 mm
L2 8.5 mm
L3 9.5 mm
L4 23.5 mm
Material ZnDC
KD-4 d1: 14 mm | L1: 30 mm | L2: 8.5 mm | L3: 9.5 mm | L4: 23.5 mm | T1: M8x1.0p | Material: ZnDC
KD-6 d1: 14 mm | L1: 30 mm | L2: 8.5 mm | L3: 9.5 mm | L4: 23.5 mm | T1: M10x1.0p | Material: ZnDC
Lubrication FittingsAryung
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung KD Tee Branch Block (M8/M10)

Brand Aryung·Lubrication Fittings

Available part numbers (2)

KD-4, KD-6

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KD-4d1: 14 mm | L1: 30 mm | L2: 8.5 mm | L3: 9.5 mm | L4: 23.5 mm | T1: M8x1.0p | Material: ZnDC
KD-6d1: 14 mm | L1: 30 mm | L2: 8.5 mm | L3: 9.5 mm | L4: 23.5 mm | T1: M10x1.0p | Material: ZnDC
