• Aryung PVG Series Grease Measuring Valve
1 1

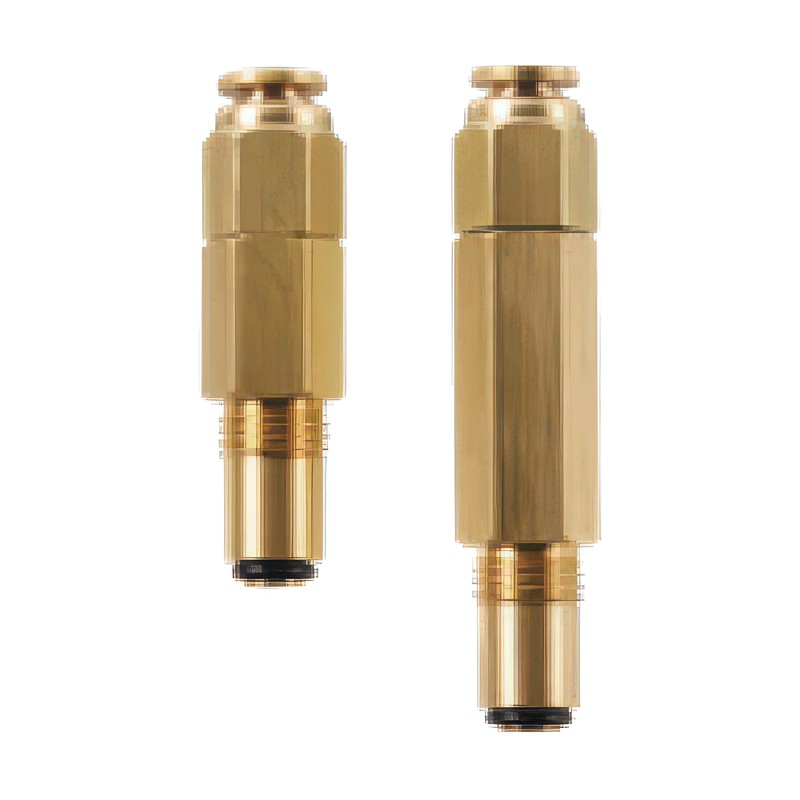

Aryung PVG Series Grease Measuring Valve

Aryung PVG Series Grease Measuring Valve

Fixed-quantity piston metering valve for intermittent grease lubrication systems.

Key features

  • Small flow error makes it suitable for precision lubrication systems
  • Available in one-touch and screwed (-S) piping versions; the one-touch type shortens piping time and reduces cost
  • Used in combination with ARG-M distribution blocks; inlet M10x1.0p, outlet M8x1.0P (one-touch)

Specifications

Working pressure 1.5 MPa or more
NLGI No. #000 ~ #1
Aryung PVG Series Grease Measuring Valve reference 2
PVG-10 Volume: 0.1 cc/stroke | Working pressure: 1.5 MPa or more | NLGI No.: #000 ~ #1 | L: 47 mm
PVG-20 Volume: 0.2 cc/stroke | Working pressure: 1.5 MPa or more | NLGI No.: #000 ~ #1 | L: 55 mm
PVG-30 Volume: 0.3 cc/stroke | Working pressure: 1.5 MPa or more | NLGI No.: #000 ~ #1 | L: 65 mm
PVG-40 Volume: 0.4 cc/stroke | Working pressure: 1.5 MPa or more | NLGI No.: #000 ~ #1 | L: 65 mm
PVG-50 Volume: 0.5 cc/stroke | Working pressure: 1.5 MPa or more | NLGI No.: #000 ~ #1 | L: 65 mm
Lubrication DistributorsAryung
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung PVG Series Grease Measuring Valve

Brand Aryung·Lubrication Distributors

Available part numbers (5)

PVG-10, PVG-20, PVG-30, PVG-40, PVG-50

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung PVG Series Grease Measuring Valve reference 2
0 selected
RFQ List (0)
Product codeSpec
PVG-10Volume: 0.1 cc/stroke | Working pressure: 1.5 MPa or more | NLGI No.: #000 ~ #1 | L: 47 mm
PVG-20Volume: 0.2 cc/stroke | Working pressure: 1.5 MPa or more | NLGI No.: #000 ~ #1 | L: 55 mm
PVG-30Volume: 0.3 cc/stroke | Working pressure: 1.5 MPa or more | NLGI No.: #000 ~ #1 | L: 65 mm
PVG-40Volume: 0.4 cc/stroke | Working pressure: 1.5 MPa or more | NLGI No.: #000 ~ #1 | L: 65 mm
PVG-50Volume: 0.5 cc/stroke | Working pressure: 1.5 MPa or more | NLGI No.: #000 ~ #1 | L: 65 mm
