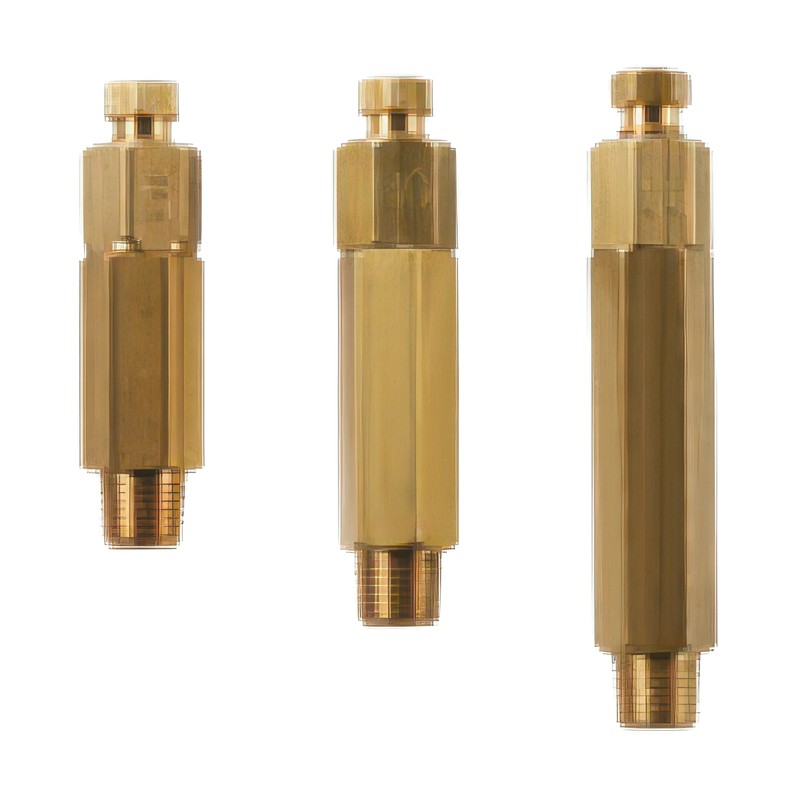

Aryung PVO Series Measuring Valve (Metering Distributor)

Aryung PVO Series Measuring Valve (Metering Distributor)

Fixed-quantity piston metering valve designed for intermittent oil lubrication systems.

Key features

  • Piston operation delivers a fixed quantity of oil with a small flow error, making it suitable for precision lubrication systems
  • Used in combination with DB-type distribution blocks; inlet (A) PT 1/8", M8 or M10 thread, outlet (B) M8x1.0p

Specifications

Working pressure 0.8 ~ 3.0 MPa
Aryung PVO Series Measuring Valve (Metering Distributor) reference 2
PVO-3 Volume code: 3 | Discharge volume: 0.03 cc/stroke | Working pressure: 0.8 ~ 3.0 MPa | L: 44.5 mm
PVO-5 Volume code: 5 | Discharge volume: 0.05 cc/stroke | Working pressure: 0.8 ~ 3.0 MPa | L: 44.5 mm
PVO-10 Volume code: 10 | Discharge volume: 0.1 cc/stroke | Working pressure: 0.8 ~ 3.0 MPa | L: 44.5 mm
PVO-20 Volume code: 20 | Discharge volume: 0.2 cc/stroke | Working pressure: 0.8 ~ 3.0 MPa | L: 53.5 mm
PVO-30 Volume code: 30 | Discharge volume: 0.3 cc/stroke | Working pressure: 0.8 ~ 3.0 MPa | L: 53.5 mm
PVO-40 Volume code: 40 | Discharge volume: 0.4 cc/stroke | Working pressure: 0.8 ~ 3.0 MPa | L: 65.0 mm
PVO-50 Volume code: 50 | Discharge volume: 0.5 cc/stroke | Working pressure: 0.8 ~ 3.0 MPa | L: 65.0 mm
Lubrication DistributorsAryung
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung PVO Series Measuring Valve (Metering Distributor)

Brand Aryung·Lubrication Distributors

Available part numbers (7)

PVO-3, PVO-5, PVO-10, PVO-20, PVO-30, PVO-40, PVO-50

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung PVO Series Measuring Valve (Metering Distributor) reference 2
0 selected
RFQ List (0)
Product codeSpec
PVO-3Volume code: 3 | Discharge volume: 0.03 cc/stroke | Working pressure: 0.8 ~ 3.0 MPa | L: 44.5 mm
PVO-5Volume code: 5 | Discharge volume: 0.05 cc/stroke | Working pressure: 0.8 ~ 3.0 MPa | L: 44.5 mm
PVO-10Volume code: 10 | Discharge volume: 0.1 cc/stroke | Working pressure: 0.8 ~ 3.0 MPa | L: 44.5 mm
PVO-20Volume code: 20 | Discharge volume: 0.2 cc/stroke | Working pressure: 0.8 ~ 3.0 MPa | L: 53.5 mm
PVO-30Volume code: 30 | Discharge volume: 0.3 cc/stroke | Working pressure: 0.8 ~ 3.0 MPa | L: 53.5 mm
PVO-40Volume code: 40 | Discharge volume: 0.4 cc/stroke | Working pressure: 0.8 ~ 3.0 MPa | L: 65.0 mm
PVO-50Volume code: 50 | Discharge volume: 0.5 cc/stroke | Working pressure: 0.8 ~ 3.0 MPa | L: 65.0 mm
