Aryung TAD Plug Bolt for Lubrication Tubing (Ø4/Ø6, Brass or Steel)

Aryung TAD Plug Bolt for Lubrication Tubing (Ø4/Ø6, Brass or Steel)

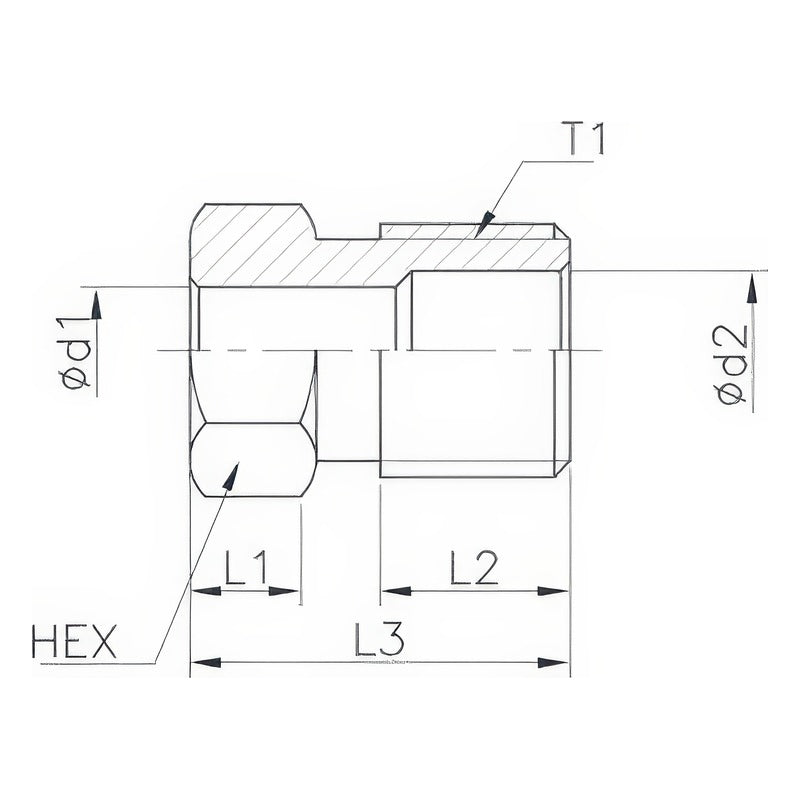

Plug bolt (compression nut) with stepped bore for Ø4 or Ø6 lubrication tubing.

Key features

  • Available in brass (BsBD3) or free-cutting steel (SUM24L, TAD-S types)

Specifications

L1 4 mm
TAD-4 Pipe dia: Ø4 | d1: 4.1 mm | d2: 5 mm | L1: 4 mm | L2: 6 mm | L3: 12 mm | T1: M8x1.0p | Hex: 8 mm | Material: BsBD3
TAD-6 Pipe dia: Ø6 | d1: 6.1 mm | d2: 7 mm | L1: 4 mm | L2: 7 mm | L3: 13 mm | T1: M10x1.0p | Hex: 10 mm | Material: BsBD3
TAD-S4 Pipe dia: Ø4 | d1: 4.1 mm | d2: 5 mm | L1: 4 mm | L2: 6 mm | L3: 12 mm | T1: M8x1.0p | Hex: 8 mm | Material: SUM24L
TAD-S6 Pipe dia: Ø6 | d1: 6.1 mm | d2: 7 mm | L1: 4 mm | L2: 7 mm | L3: 13 mm | T1: M10x1.0p | Hex: 10 mm | Material: SUM24L
Lubrication FittingsAryung
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung TAD Plug Bolt for Lubrication Tubing (Ø4/Ø6, Brass or Steel)

Brand Aryung·Lubrication Fittings

Available part numbers (4)

TAD-4, TAD-6, TAD-S4, TAD-S6

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TAD-4Pipe dia: Ø4 | d1: 4.1 mm | d2: 5 mm | L1: 4 mm | L2: 6 mm | L3: 12 mm | T1: M8x1.0p | Hex: 8 mm | Material: BsBD3
TAD-6Pipe dia: Ø6 | d1: 6.1 mm | d2: 7 mm | L1: 4 mm | L2: 7 mm | L3: 13 mm | T1: M10x1.0p | Hex: 10 mm | Material: BsBD3
TAD-S4Pipe dia: Ø4 | d1: 4.1 mm | d2: 5 mm | L1: 4 mm | L2: 6 mm | L3: 12 mm | T1: M8x1.0p | Hex: 8 mm | Material: SUM24L
TAD-S6Pipe dia: Ø6 | d1: 6.1 mm | d2: 7 mm | L1: 4 mm | L2: 7 mm | L3: 13 mm | T1: M10x1.0p | Hex: 10 mm | Material: SUM24L
