• Aryung TBD Double-Cone Compression Sleeve (Ø4/Ø6)
1 1

Aryung TBD Double-Cone Compression Sleeve (Ø4/Ø6)

Aryung TBD Double-Cone Compression Sleeve (Ø4/Ø6)

Brass double-cone compression sleeve for Ø4 or Ø6 lubrication tubing, used with TAD plug bolts.

Key features

  • Material BsBD3

Specifications

L2 2 mm
Material BsBD3

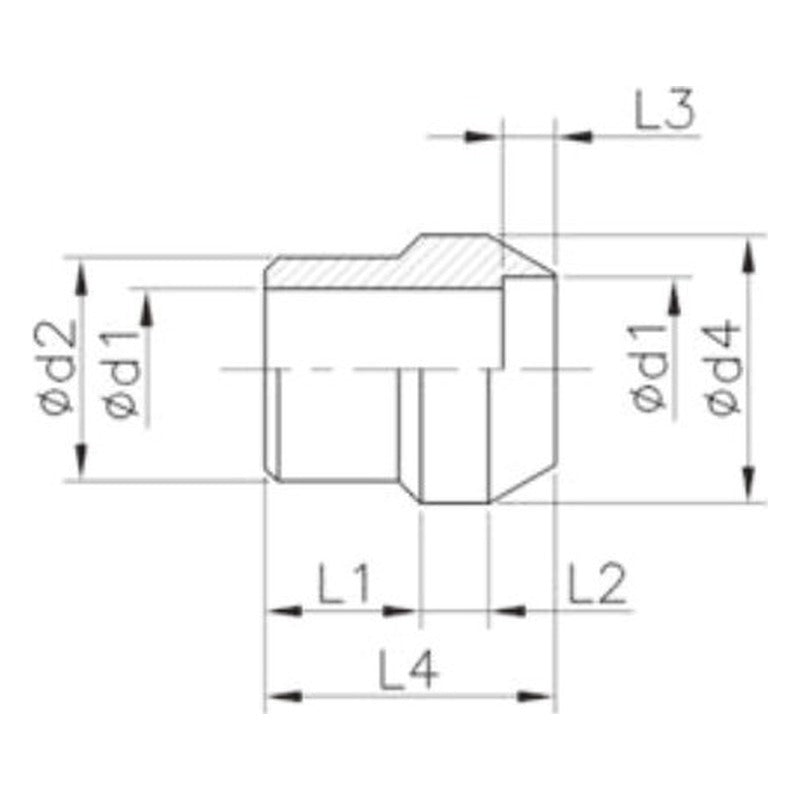

TBD-4 Pipe dia: Ø4 | d1: 4.1 mm | d2: 5 mm | d3: 6 mm | L1: 3 mm | L2: 2 mm | L3: 6.5 mm | Material: BsBD3
TBD-6 Pipe dia: Ø6 | d1: 6.1 mm | d2: 7 mm | d3: 8 mm | L1: 4 mm | L2: 2 mm | L3: 7.5 mm | Material: BsBD3
Lubrication FittingsAryung
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung TBD Double-Cone Compression Sleeve (Ø4/Ø6)

Brand Aryung·Lubrication Fittings

Available part numbers (2)

TBD-4, TBD-6

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TBD-4Pipe dia: Ø4 | d1: 4.1 mm | d2: 5 mm | d3: 6 mm | L1: 3 mm | L2: 2 mm | L3: 6.5 mm | Material: BsBD3
TBD-6Pipe dia: Ø6 | d1: 6.1 mm | d2: 7 mm | d3: 8 mm | L1: 4 mm | L2: 2 mm | L3: 7.5 mm | Material: BsBD3
