Aryung TZ Floor-Mount Steel Oil Tank (3-20 L)

Aryung TZ Floor-Mount Steel Oil Tank (3-20 L)

Floor-mounting steel oil tank for AMGP-01N/02N and AMGP-03/05 lubrication units.

Key features

  • Steel tank with plastic oil level gauge and PT 1/4" drain port
  • Available in 3, 6, 12 and 20 L effective capacity

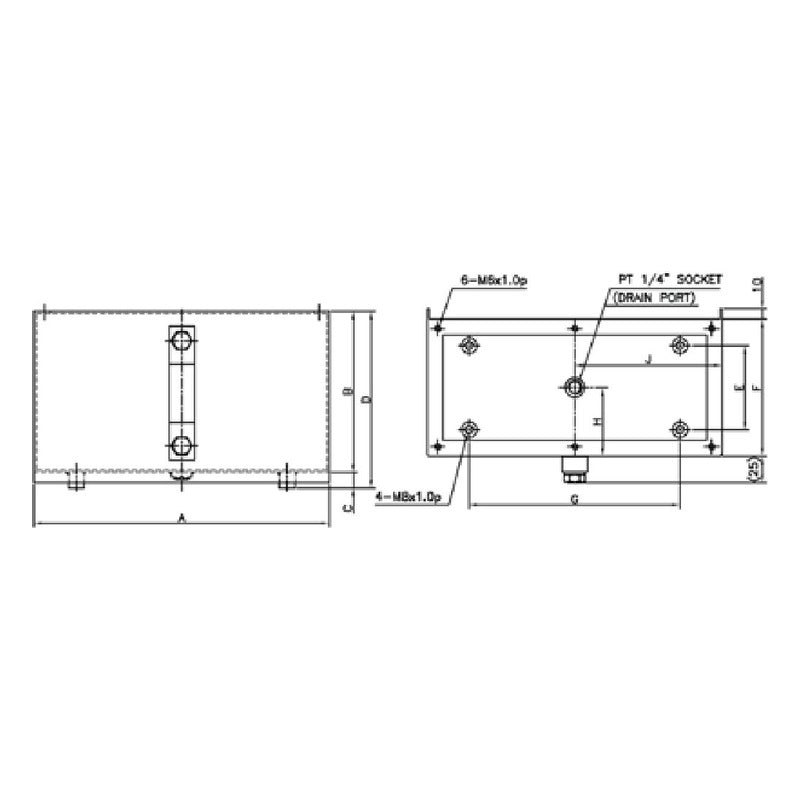

Specifications

C 15 mm
Applicable pump AMGP-01N, 02N, 03, 05
T03-TZ Total capacity: 5 L | Effective capacity: 3 L | A: 280 mm | B: 153 mm | C: 15 mm | D: 168 mm | E: 80 mm | F: 130 mm | G: 200 mm | H: 65 mm | J: 140 mm | Applicable pump: AMGP-01N, 02N, 03, 05
T06-TZ Total capacity: 8 L | Effective capacity: 6 L | A: 300 mm | B: 153 mm | C: 15 mm | D: 168 mm | E: 120 mm | F: 190 mm | G: 240 mm | H: 95 mm | J: 40 mm | Applicable pump: AMGP-01N, 02N, 03, 05
T12-TZ Total capacity: 13 L | Effective capacity: 12 L | A: 383 mm | B: 153 mm | C: 15 mm | D: 168 mm | E: 160 mm | F: 228 mm | G: 280 mm | H: 114 mm | J: 40 mm | Applicable pump: AMGP-01N, 02N, 03, 05
T20-TZ Total capacity: 23 L | Effective capacity: 20 L | A: 470 mm | B: 159 mm | C: 15 mm | D: 174 mm | E: 240 mm | F: 310 mm | G: 390 mm | H: 155 mm | J: 50 mm | Applicable pump: AMGP-01N, 02N, 03, 05
Lubrication Pump AccessoriesAryung
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung TZ Floor-Mount Steel Oil Tank (3-20 L)

Brand Aryung·Lubrication Pump Accessories

Available part numbers (4)

T03-TZ, T06-TZ, T12-TZ, T20-TZ

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
T03-TZTotal capacity: 5 L | Effective capacity: 3 L | A: 280 mm | B: 153 mm | C: 15 mm | D: 168 mm | E: 80 mm | F: 130 mm | G: 200 mm | H: 65 mm | J: 140 mm | Applicable pump: AMGP-01N, 02N, 03, 05
T06-TZTotal capacity: 8 L | Effective capacity: 6 L | A: 300 mm | B: 153 mm | C: 15 mm | D: 168 mm | E: 120 mm | F: 190 mm | G: 240 mm | H: 95 mm | J: 40 mm | Applicable pump: AMGP-01N, 02N, 03, 05
T12-TZTotal capacity: 13 L | Effective capacity: 12 L | A: 383 mm | B: 153 mm | C: 15 mm | D: 168 mm | E: 160 mm | F: 228 mm | G: 280 mm | H: 114 mm | J: 40 mm | Applicable pump: AMGP-01N, 02N, 03, 05
T20-TZTotal capacity: 23 L | Effective capacity: 20 L | A: 470 mm | B: 159 mm | C: 15 mm | D: 174 mm | E: 240 mm | F: 310 mm | G: 390 mm | H: 155 mm | J: 50 mm | Applicable pump: AMGP-01N, 02N, 03, 05
