• Autonics M4Y/M5W/M4W/M4M Series Digital Tachometers (Speed Meters)
1 1

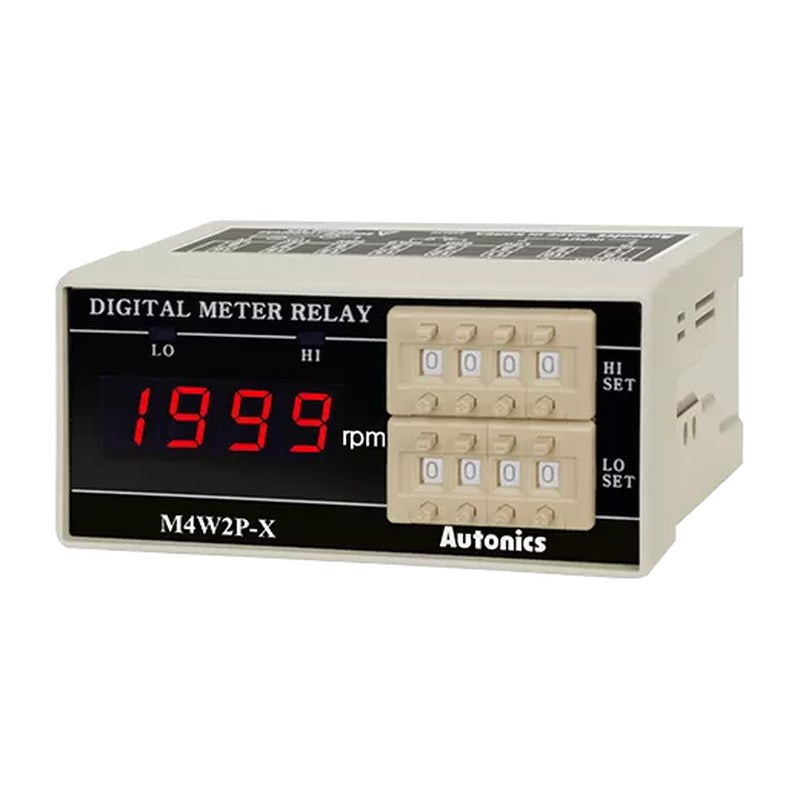

Autonics M4Y/M5W/M4W/M4M Series Digital Tachometers (Speed Meters)

Autonics M4Y/M5W/M4W/M4M Series Digital Tachometers (Speed Meters)

The M4Y/M4W/M5W/M4M series digital tachometers / speed meters can measure rotation speed of a shaft or directional speed and display the values in numeric form.

Key features

  • Max display value : 19999 (M5W), 1999 (all other models)
  • Auto-zero adjustment and hold display value function (except M5W)
  • RMS or AVG value selection (AC voltage)
  • Output options : indicator only, single setting output, dual setting output

Specifications

Brand Autonics (Korea)
Series M4Y, M5W, M4W, M4M (Tachometer / Speed Meter)
Source Autonics official model list (autonics.com, M4Y, M5W, M4W, M4M (Tachometer / Speed Meter) series page)
M5W-S-2 Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999.9 | Status: Discontinued
M5W-S-AX Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: AC INPUT option | Max. display Range: 0 to 19999 | Status: Discontinued
M5W-T-2 Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999.9 | Status: Discontinued
M5W-T-AX Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: AC INPUT option | Max. display Range: 0 to 19999 | Status: Discontinued
M5W-T-DX Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: DC INPUT option | Max. display Range: 0 to 19999 | Status: Discontinued
M5W-T-1 Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999.9
M5W-S-1 Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999.9
M4Y-T-2 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4Y-S-1 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999
M4Y-S-2 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4Y-S-DX Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: DC INPUT option | Max. display Range: 0 to 1999
M4Y-SR-2 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4Y-T-1 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999
M4Y-T-AX Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: AC INPUT option | Max. display Range: 0 to 1999
M4Y-T-DX Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: DC INPUT option | Max. display Range: 0 to 1999
M4W-T-1 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999
M4W-T-2 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4W-T-DX Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: DC INPUT option | Max. display Range: 0 to 1999
M4W-S-1 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999
M4W-S-2 Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4W-S-AX Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: AC INPUT option | Max. display Range: 0 to 1999
M4W-S-DX Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: DC INPUT option | Max. display Range: 0 to 1999
M4W2P-T-1 Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999
M4W2P-T-2 Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4W2P-T-AX Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: AC INPUT option | Max. display Range: 0 to 1999
M4W2P-T-DX Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: DC INPUT option | Max. display Range: 0 to 1999
M4W2P-S-1 Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999
M4W2P-S-DX Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: DC INPUT option | Max. display Range: 0 to 1999
M4W2P-SR-2 Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4W1P-T-1 Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999
M4W1P-T-2 Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4W1P-T-DX Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: DC INPUT option | Max. display Range: 0 to 1999
M4W1P-TR-2 Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4W1P-TR-AX Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: AC INPUT option | Max. display Range: 0 to 1999
M4W1P-S-1 Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999
M4W1P-S-DX Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: DC INPUT option | Max. display Range: 0 to 1999
Panel MeterAutonics
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics M4Y/M5W/M4W/M4M Series Digital Tachometers (Speed Meters)

Brand Autonics·Panel Meter

Available part numbers (36)

M5W-S-2, M5W-S-AX, M5W-T-2, M5W-T-AX, M5W-T-DX, M5W-T-1, M5W-S-1, M4Y-T-2, M4Y-S-1, M4Y-S-2 + 26 more — see full table ↓

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M5W-S-2Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999.9 | Status: Discontinued
M5W-S-AXDisplay method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: AC INPUT option | Max. display Range: 0 to 19999 | Status: Discontinued
M5W-T-2Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999.9 | Status: Discontinued
M5W-T-AXDisplay method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: AC INPUT option | Max. display Range: 0 to 19999 | Status: Discontinued
M5W-T-DXDisplay method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: DC INPUT option | Max. display Range: 0 to 19999 | Status: Discontinued
M5W-T-1Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999.9
M5W-S-1Display method: 4½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999.9
M4Y-T-2Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4Y-S-1Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999
M4Y-S-2Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4Y-S-DXDisplay method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: DC INPUT option | Max. display Range: 0 to 1999
M4Y-SR-2Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4Y-T-1Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999
M4Y-T-AXDisplay method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: AC INPUT option | Max. display Range: 0 to 1999
M4Y-T-DXDisplay method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: DC INPUT option | Max. display Range: 0 to 1999
M4W-T-1Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999
M4W-T-2Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4W-T-DXDisplay method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: DC INPUT option | Max. display Range: 0 to 1999
M4W-S-1Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999
M4W-S-2Display method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4W-S-AXDisplay method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: AC INPUT option | Max. display Range: 0 to 1999
M4W-S-DXDisplay method: 3½-digit 7-segment LED | Character height: 14mm | Input specification: DC INPUT option | Max. display Range: 0 to 1999
M4W2P-T-1Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999
M4W2P-T-2Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4W2P-T-AXDisplay method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: AC INPUT option | Max. display Range: 0 to 1999
M4W2P-T-DXDisplay method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: DC INPUT option | Max. display Range: 0 to 1999
M4W2P-S-1Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999
M4W2P-S-DXDisplay method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: DC INPUT option | Max. display Range: 0 to 1999
M4W2P-SR-2Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4W1P-T-1Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999
M4W1P-T-2Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4W1P-T-DXDisplay method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: DC INPUT option | Max. display Range: 0 to 1999
M4W1P-TR-2Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 0-10VAC | Max. display Range: 0 to 1999
M4W1P-TR-AXDisplay method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: AC INPUT option | Max. display Range: 0 to 1999
M4W1P-S-1Display method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: 0-10VDC | Max. display Range: 0 to 1999
M4W1P-S-DXDisplay method: 3½-digit 7-segment LED | Character height: 10mm | Input specification: DC INPUT option | Max. display Range: 0 to 1999
