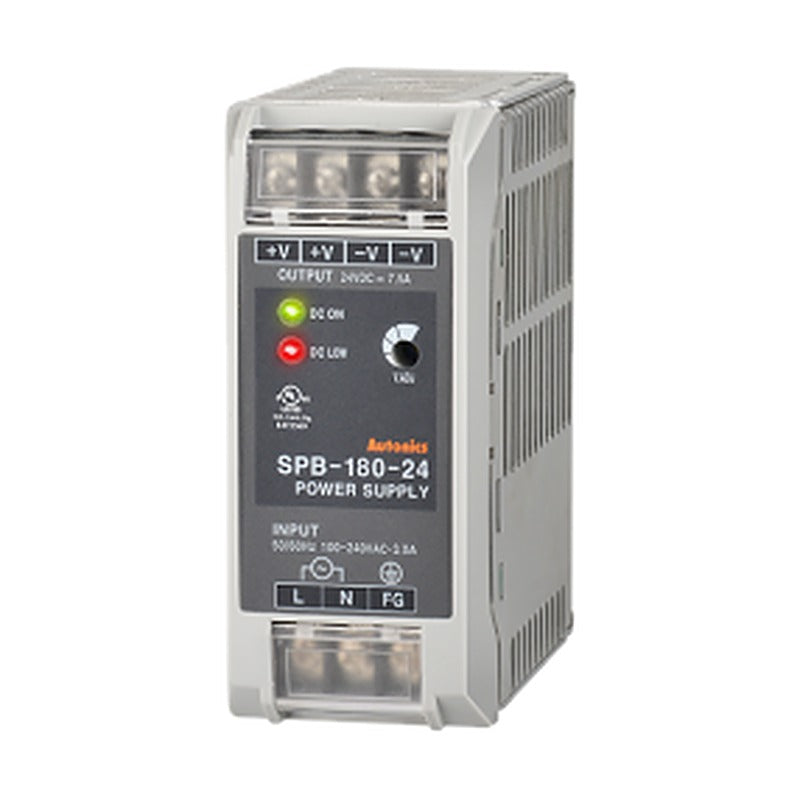

Autonics SPB Series DIN Rail Switching Power Supplies (60-240 W)

Autonics SPB Series DIN Rail Switching Power Supplies (60-240 W)

DIN rail or screw-mount switching mode power supplies rated 60 W, 120 W and 240 W. Low noise and ripple, with overcurrent, short-circuit, overheat and overvoltage protection.

Key features

  • Output power 60 W, 120 W and 240 W
  • Output voltages 12, 24 and 48 VDC
  • Power factor correction on SPB-120/240
  • Low-voltage output indicator (LED)
  • Slim 36 mm width for SPB-060
  • Terminal protection cover for user safety

Specifications

Input voltage 100-240 VAC (85-264 VAC) 50/60 Hz
Output voltage adjust ±5 % (V.ADJ)
Line regulation ±0.5 % max.
Overheat protection Output cut-off at approx. 140 °C internal
Insulation resistance 100 MΩ min. (500 VDC)
Dielectric strength 3000 VAC in/out, 1500 VAC in/FG
EMC EN61000-6-2, EN61000-6-4
Safety IEC60950, EN50178
Ambient temperature -10 to 50 °C
Protection IP20
Source Autonics SPB Series catalogue
SPB-060-12 Output: 12 VDC 5 A | Power: 60 W | Efficiency: 75 % min.
SPB-060-24 Output: 24 VDC 2.5 A | Power: 60 W | Efficiency: 75 % min.
SPB-120-24 Output: 24 VDC 5 A | Power: 120 W | Efficiency: 80 % min.
SPB-240-12 Output: 12 VDC 20 A | Power: 240 W | Efficiency: 86 % min.
SPB-240-24 Output: 24 VDC 10 A | Power: 240 W | Efficiency: 88 % min.
SPB-240-48 Output: 48 VDC 5 A | Power: 240 W | Efficiency: 88 % min.
Switching Power SuppliesAutonics
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics SPB Series DIN Rail Switching Power Supplies (60-240 W)

Brand Autonics·Switching Power Supplies

Available part numbers (6)

SPB-060-12, SPB-060-24, SPB-120-24, SPB-240-12, SPB-240-24, SPB-240-48

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SPB-060-12Output: 12 VDC 5 A | Power: 60 W | Efficiency: 75 % min.
SPB-060-24Output: 24 VDC 2.5 A | Power: 60 W | Efficiency: 75 % min.
SPB-120-24Output: 24 VDC 5 A | Power: 120 W | Efficiency: 80 % min.
SPB-240-12Output: 12 VDC 20 A | Power: 240 W | Efficiency: 86 % min.
SPB-240-24Output: 24 VDC 10 A | Power: 240 W | Efficiency: 88 % min.
SPB-240-48Output: 48 VDC 5 A | Power: 240 W | Efficiency: 88 % min.
