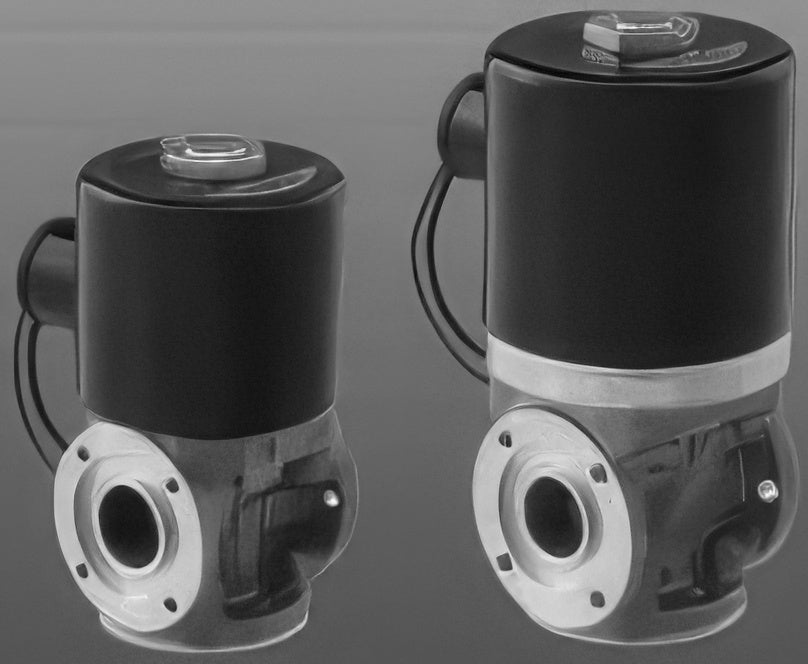

CKD High Vacuum Solenoid Valve HVB612, HVB712 Series (Flange 48/52 mm, NC)

CKD High Vacuum Solenoid Valve HVB612, HVB712 Series (Flange 48/52 mm, NC)

Normally closed solenoid valve for high vacuum and inert gas with flange connection (48 mm or 52 mm flange).

Key features

  • Seat and external leakage 1.0x10^-9 Pa·m3/s (He) or less, FKM seals
  • Coil insulation class B or H; rated voltage AC100-200V or DC24V

Specifications

Type NC
Fluid vacuum, inert gas
Seat leakage (Pa·m3/s He) 1.0x10^-9 or less
Rated voltage AC100-200V (50/60Hz), DC24V
HVB612-12F-8B Port: 48 mm flange | Orifice (mm): 8 | Working pressure (Pa abs): 1.3x10^-6 to 2.0x10^5 | Max op. pressure diff. (MPa): 0.2 | Cv: 1.8 (straight) / 2.1 (L) | Back pressure (MPa): 0.1 | Power (W): 14.3 | Coil insulation class: B | Mass (kg): 1.15 | Type: NC | Fluid: vacuum, inert gas | Seat leakage (Pa·m3/s He): 1.0x10^-9 or less | Rated voltage: AC100-200V (50/60Hz), DC24V
HVB612-12F-8H Port: 48 mm flange | Orifice (mm): 8 | Working pressure (Pa abs): 1.3x10^-6 to 3.0x10^5 | Max op. pressure diff. (MPa): 0.3 | Cv: 1.8 (straight) / 2.1 (L) | Back pressure (MPa): 0.1 | Power (W): 28 | Coil insulation class: H | Mass (kg): 1.15 | Type: NC | Fluid: vacuum, inert gas | Seat leakage (Pa·m3/s He): 1.0x10^-9 or less | Rated voltage: AC100-200V (50/60Hz), DC24V
HVB612-12F-12B Port: 48 mm flange | Orifice (mm): 12 | Working pressure (Pa abs): 1.3x10^-6 to 1.0x10^5 | Max op. pressure diff. (MPa): 0.1 | Cv: 2.7 (straight) / 3.2 (L) | Back pressure (MPa): 0.02 | Power (W): 14.3 | Coil insulation class: B | Mass (kg): 1.15 | Type: NC | Fluid: vacuum, inert gas | Seat leakage (Pa·m3/s He): 1.0x10^-9 or less | Rated voltage: AC100-200V (50/60Hz), DC24V
HVB712-15F-12B Port: 52 mm flange | Orifice (mm): 12 | Working pressure (Pa abs): 1.3x10^-6 to 1.5x10^5 | Max op. pressure diff. (MPa): 0.15 | Cv: 3.2 (straight) / 3.6 (L) | Back pressure (MPa): 0.1 | Power (W): 19 | Coil insulation class: B | Mass (kg): 2.0 | Type: NC | Fluid: vacuum, inert gas | Seat leakage (Pa·m3/s He): 1.0x10^-9 or less | Rated voltage: AC100-200V (50/60Hz), DC24V
HVB712-15F-12H Port: 52 mm flange | Orifice (mm): 12 | Working pressure (Pa abs): 1.3x10^-6 to 3.0x10^5 | Max op. pressure diff. (MPa): 0.3 | Cv: 3.2 (straight) / 3.6 (L) | Back pressure (MPa): 0.1 | Power (W): AC 32.5 / DC 40 | Coil insulation class: H | Mass (kg): 2.0 | Type: NC | Fluid: vacuum, inert gas | Seat leakage (Pa·m3/s He): 1.0x10^-9 or less | Rated voltage: AC100-200V (50/60Hz), DC24V
HVB712-15F-15B Port: 52 mm flange | Orifice (mm): 15 | Working pressure (Pa abs): 1.3x10^-6 to 1.0x10^5 | Max op. pressure diff. (MPa): 0.1 | Cv: 4.3 (straight) / 4.7 (L) | Back pressure (MPa): 0.02 | Power (W): 19 | Coil insulation class: B | Mass (kg): 2.0 | Type: NC | Fluid: vacuum, inert gas | Seat leakage (Pa·m3/s He): 1.0x10^-9 or less | Rated voltage: AC100-200V (50/60Hz), DC24V
HVB712-15F-15H Port: 52 mm flange | Orifice (mm): 15 | Working pressure (Pa abs): 1.3x10^-6 to 1.0x10^5 | Max op. pressure diff. (MPa): 0.1 | Cv: 4.3 (straight) / 4.7 (L) | Back pressure (MPa): 0.1 | Power (W): AC 32.5 / DC 40 | Coil insulation class: H | Mass (kg): 2.0 | Type: NC | Fluid: vacuum, inert gas | Seat leakage (Pa·m3/s He): 1.0x10^-9 or less | Rated voltage: AC100-200V (50/60Hz), DC24V
Vacuum ValvesCKD
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD High Vacuum Solenoid Valve HVB612, HVB712 Series (Flange 48/52 mm, NC)

Brand CKD·Vacuum Valves

Available part numbers (7)

HVB612-12F-8B, HVB612-12F-8H, HVB612-12F-12B, HVB712-15F-12B, HVB712-15F-12H, HVB712-15F-15B, HVB712-15F-15H

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HVB612-12F-8BPort: 48 mm flange | Orifice (mm): 8 | Working pressure (Pa abs): 1.3x10^-6 to 2.0x10^5 | Max op. pressure diff. (MPa): 0.2 | Cv: 1.8 (straight) / 2.1 (L) | Back pressure (MPa): 0.1 | Power (W): 14.3 | Coil insulation class: B | Mass (kg): 1.15 | Type: NC | Fluid: vacuum, inert gas | Seat leakage (Pa·m3/s He): 1.0x10^-9 or less | Rated voltage: AC100-200V (50/60Hz), DC24V
HVB612-12F-8HPort: 48 mm flange | Orifice (mm): 8 | Working pressure (Pa abs): 1.3x10^-6 to 3.0x10^5 | Max op. pressure diff. (MPa): 0.3 | Cv: 1.8 (straight) / 2.1 (L) | Back pressure (MPa): 0.1 | Power (W): 28 | Coil insulation class: H | Mass (kg): 1.15 | Type: NC | Fluid: vacuum, inert gas | Seat leakage (Pa·m3/s He): 1.0x10^-9 or less | Rated voltage: AC100-200V (50/60Hz), DC24V
HVB612-12F-12BPort: 48 mm flange | Orifice (mm): 12 | Working pressure (Pa abs): 1.3x10^-6 to 1.0x10^5 | Max op. pressure diff. (MPa): 0.1 | Cv: 2.7 (straight) / 3.2 (L) | Back pressure (MPa): 0.02 | Power (W): 14.3 | Coil insulation class: B | Mass (kg): 1.15 | Type: NC | Fluid: vacuum, inert gas | Seat leakage (Pa·m3/s He): 1.0x10^-9 or less | Rated voltage: AC100-200V (50/60Hz), DC24V
HVB712-15F-12BPort: 52 mm flange | Orifice (mm): 12 | Working pressure (Pa abs): 1.3x10^-6 to 1.5x10^5 | Max op. pressure diff. (MPa): 0.15 | Cv: 3.2 (straight) / 3.6 (L) | Back pressure (MPa): 0.1 | Power (W): 19 | Coil insulation class: B | Mass (kg): 2.0 | Type: NC | Fluid: vacuum, inert gas | Seat leakage (Pa·m3/s He): 1.0x10^-9 or less | Rated voltage: AC100-200V (50/60Hz), DC24V
HVB712-15F-12HPort: 52 mm flange | Orifice (mm): 12 | Working pressure (Pa abs): 1.3x10^-6 to 3.0x10^5 | Max op. pressure diff. (MPa): 0.3 | Cv: 3.2 (straight) / 3.6 (L) | Back pressure (MPa): 0.1 | Power (W): AC 32.5 / DC 40 | Coil insulation class: H | Mass (kg): 2.0 | Type: NC | Fluid: vacuum, inert gas | Seat leakage (Pa·m3/s He): 1.0x10^-9 or less | Rated voltage: AC100-200V (50/60Hz), DC24V
HVB712-15F-15BPort: 52 mm flange | Orifice (mm): 15 | Working pressure (Pa abs): 1.3x10^-6 to 1.0x10^5 | Max op. pressure diff. (MPa): 0.1 | Cv: 4.3 (straight) / 4.7 (L) | Back pressure (MPa): 0.02 | Power (W): 19 | Coil insulation class: B | Mass (kg): 2.0 | Type: NC | Fluid: vacuum, inert gas | Seat leakage (Pa·m3/s He): 1.0x10^-9 or less | Rated voltage: AC100-200V (50/60Hz), DC24V
HVB712-15F-15HPort: 52 mm flange | Orifice (mm): 15 | Working pressure (Pa abs): 1.3x10^-6 to 1.0x10^5 | Max op. pressure diff. (MPa): 0.1 | Cv: 4.3 (straight) / 4.7 (L) | Back pressure (MPa): 0.1 | Power (W): AC 32.5 / DC 40 | Coil insulation class: H | Mass (kg): 2.0 | Type: NC | Fluid: vacuum, inert gas | Seat leakage (Pa·m3/s He): 1.0x10^-9 or less | Rated voltage: AC100-200V (50/60Hz), DC24V
