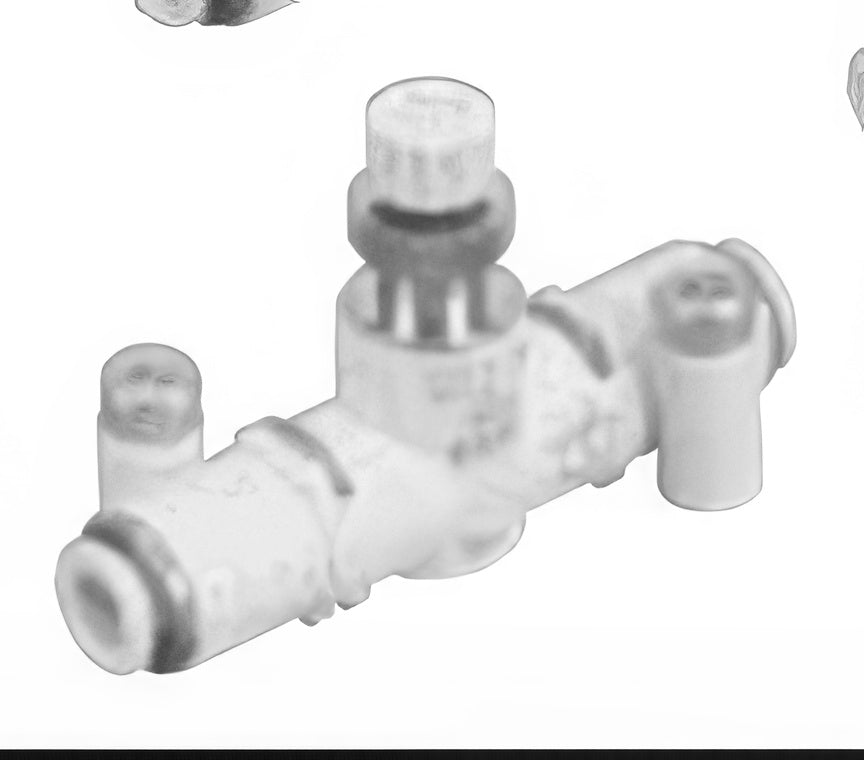

CKD In-Out Line Type Speed Controller with One-Touch Fittings SCD2 Series (Clean Spec)

CKD In-Out Line Type Speed Controller with One-Touch Fittings SCD2 Series (Clean Spec)

In-out (bidirectional) line type speed controllers with one-touch fittings for tube OD 1.8-12 mm, in clean-room specification.

Key features

  • Controls flow in both directions with a single needle, for compact cylinder speed control in the line

Specifications

Free flow eff. area (mm2) -
Free flow (L/min ANR @0.5MPa) -
Max pressure (MPa) 1.0
Clean suffix P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCD2-04-H22-P7※ Port: M5 equivalent body | Tube OD (mm): 1.8 / 1.8 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 0.15 | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 10 | Applicable cylinder bore: phi4-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCD2-04-H42-P7※ Port: M5 equivalent body | Tube OD (mm): 4 / 1.8 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 0.15 | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 10 | Applicable cylinder bore: phi4-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCD2-04-H44-P7※ Port: M5 equivalent body | Tube OD (mm): 4 / 4 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 1.5 (slow 0.2) | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 100 (slow 13) | Applicable cylinder bore: phi4-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCD2-06-H66-P7※ Port: 1/8 equivalent body | Tube OD (mm): 6 / 6 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 3.7 (slow 0.2) | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 250 (slow 13) | Applicable cylinder bore: phi6-40 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCD2-08-H66-P7※ Port: 1/4 equivalent body | Tube OD (mm): 6 / 6 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 5 | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 330 | Applicable cylinder bore: phi20-50 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCD2-08-H88-P7※ Port: 1/4 equivalent body | Tube OD (mm): 8 / 8 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 6 | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 400 | Applicable cylinder bore: phi20-50 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCD2-10-H88-P7※ Port: 3/8 equivalent body | Tube OD (mm): 8 / 8 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 11 | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 750 | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCD2-10-H1010-P7※ Port: 3/8 equivalent body | Tube OD (mm): 10 / 10 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 12.5 | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 850 | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCD2-10-H1212-P7※ Port: 3/8 equivalent body | Tube OD (mm): 12 / 12 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 13 | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 900 | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
Speed ControllersCKD
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD In-Out Line Type Speed Controller with One-Touch Fittings SCD2 Series (Clean Spec)

Brand CKD·Speed Controllers

Available part numbers (9)

SCD2-04-H22-P7※, SCD2-04-H42-P7※, SCD2-04-H44-P7※, SCD2-06-H66-P7※, SCD2-08-H66-P7※, SCD2-08-H88-P7※, SCD2-10-H88-P7※, SCD2-10-H1010-P7※, SCD2-10-H1212-P7※

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCD2-04-H22-P7※Port: M5 equivalent body | Tube OD (mm): 1.8 / 1.8 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 0.15 | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 10 | Applicable cylinder bore: phi4-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCD2-04-H42-P7※Port: M5 equivalent body | Tube OD (mm): 4 / 1.8 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 0.15 | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 10 | Applicable cylinder bore: phi4-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCD2-04-H44-P7※Port: M5 equivalent body | Tube OD (mm): 4 / 4 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 1.5 (slow 0.2) | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 100 (slow 13) | Applicable cylinder bore: phi4-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCD2-06-H66-P7※Port: 1/8 equivalent body | Tube OD (mm): 6 / 6 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 3.7 (slow 0.2) | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 250 (slow 13) | Applicable cylinder bore: phi6-40 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCD2-08-H66-P7※Port: 1/4 equivalent body | Tube OD (mm): 6 / 6 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 5 | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 330 | Applicable cylinder bore: phi20-50 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCD2-08-H88-P7※Port: 1/4 equivalent body | Tube OD (mm): 8 / 8 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 6 | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 400 | Applicable cylinder bore: phi20-50 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCD2-10-H88-P7※Port: 3/8 equivalent body | Tube OD (mm): 8 / 8 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 11 | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 750 | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCD2-10-H1010-P7※Port: 3/8 equivalent body | Tube OD (mm): 10 / 10 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 12.5 | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 850 | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCD2-10-H1212-P7※Port: 3/8 equivalent body | Tube OD (mm): 12 / 12 | Free flow eff. area (mm2): - | Controlled flow eff. area (mm2): 13 | Free flow (L/min ANR @0.5MPa): - | Controlled flow (L/min ANR @0.5MPa): 900 | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
