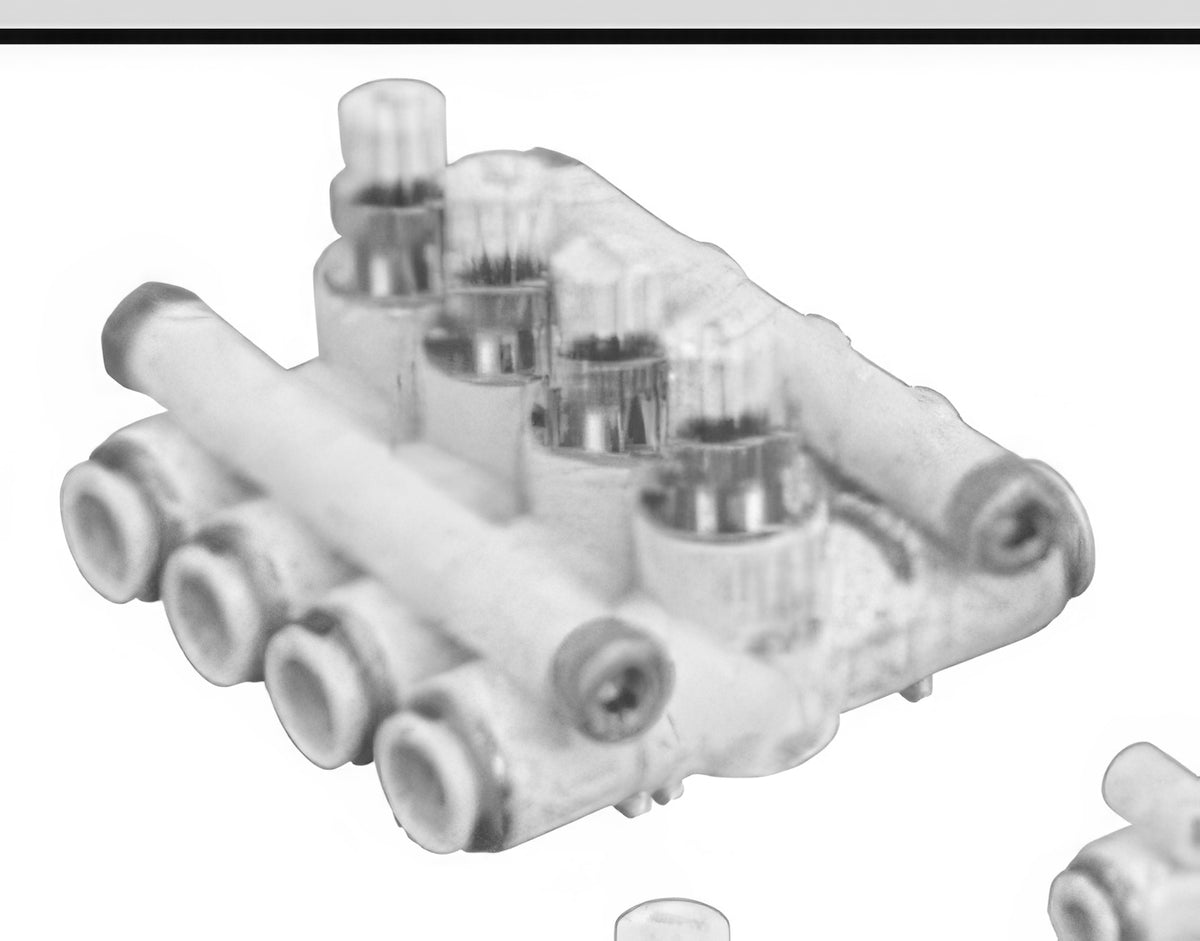

CKD Line Type Speed Controller with One-Touch Fittings SCL2 Series (Clean Spec)

CKD Line Type Speed Controller with One-Touch Fittings SCL2 Series (Clean Spec)

In-line speed controllers with one-touch fittings on both ends for tube OD 1.8-12 mm, in clean-room specification.

Key features

  • Install anywhere in the line between valve and cylinder; slow-speed versions are available for fine adjustment

Specifications

Max pressure (MPa) 1.0
Clean suffix P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-04-H22-P7※ Port: M5 equivalent body | Tube OD (mm): 1.8 / 1.8 | Free flow eff. area (mm2): 0.2 | Controlled flow eff. area (mm2): 0.15 | Free flow (L/min ANR @0.5MPa): 13 | Controlled flow (L/min ANR @0.5MPa): 10 | Applicable cylinder bore: phi4-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-04-H42-P7※ Port: M5 equivalent body | Tube OD (mm): 4 (IN) / 1.8 (OUT) | Free flow eff. area (mm2): 0.2 | Controlled flow eff. area (mm2): 0.15 | Free flow (L/min ANR @0.5MPa): 13 | Controlled flow (L/min ANR @0.5MPa): 10 | Applicable cylinder bore: phi4-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-04-H24-P7※ Port: M5 equivalent body | Tube OD (mm): 1.8 (IN) / 4 (OUT) | Free flow eff. area (mm2): 0.2 | Controlled flow eff. area (mm2): 0.15 | Free flow (L/min ANR @0.5MPa): 13 | Controlled flow (L/min ANR @0.5MPa): 10 | Applicable cylinder bore: phi4-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-04-H44-P7※ Port: M5 equivalent body | Tube OD (mm): 4 / 4 | Free flow eff. area (mm2): 1.9 | Controlled flow eff. area (mm2): 1.9 (slow 0.2) | Free flow (L/min ANR @0.5MPa): 130 | Controlled flow (L/min ANR @0.5MPa): 130 (slow 13) | Applicable cylinder bore: phi4-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-06-H66-P7※ Port: 1/8 equivalent body | Tube OD (mm): 6 / 6 | Free flow eff. area (mm2): 4.5 | Controlled flow eff. area (mm2): 4.5 (slow 0.2) | Free flow (L/min ANR @0.5MPa): 300 | Controlled flow (L/min ANR @0.5MPa): 300 (slow 13) | Applicable cylinder bore: phi6-40 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-08-H66-P7※ Port: 1/4 equivalent body | Tube OD (mm): 6 / 6 | Free flow eff. area (mm2): 6 | Controlled flow eff. area (mm2): 6 | Free flow (L/min ANR @0.5MPa): 400 | Controlled flow (L/min ANR @0.5MPa): 400 | Applicable cylinder bore: phi20-50 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-08-H88-P7※ Port: 1/4 equivalent body | Tube OD (mm): 8 / 8 | Free flow eff. area (mm2): 8 | Controlled flow eff. area (mm2): 8 | Free flow (L/min ANR @0.5MPa): 550 | Controlled flow (L/min ANR @0.5MPa): 550 | Applicable cylinder bore: phi20-50 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-10-H88-P7※ Port: 3/8 equivalent body | Tube OD (mm): 8 / 8 | Free flow eff. area (mm2): 13.5 | Controlled flow eff. area (mm2): 13.5 | Free flow (L/min ANR @0.5MPa): 900 | Controlled flow (L/min ANR @0.5MPa): 900 | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-10-H1010-P7※ Port: 3/8 equivalent body | Tube OD (mm): 10 / 10 | Free flow eff. area (mm2): 16.5 | Controlled flow eff. area (mm2): 16.5 | Free flow (L/min ANR @0.5MPa): 1100 | Controlled flow (L/min ANR @0.5MPa): 1100 | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-10-H1212-P7※ Port: 3/8 equivalent body | Tube OD (mm): 12 / 12 | Free flow eff. area (mm2): 18 | Controlled flow eff. area (mm2): 18 | Free flow (L/min ANR @0.5MPa): 1200 | Controlled flow (L/min ANR @0.5MPa): 1200 | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
Speed ControllersCKD
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Line Type Speed Controller with One-Touch Fittings SCL2 Series (Clean Spec)

Brand CKD·Speed Controllers

Available part numbers (10)

SCL2-04-H22-P7※, SCL2-04-H42-P7※, SCL2-04-H24-P7※, SCL2-04-H44-P7※, SCL2-06-H66-P7※, SCL2-08-H66-P7※, SCL2-08-H88-P7※, SCL2-10-H88-P7※, SCL2-10-H1010-P7※, SCL2-10-H1212-P7※

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCL2-04-H22-P7※Port: M5 equivalent body | Tube OD (mm): 1.8 / 1.8 | Free flow eff. area (mm2): 0.2 | Controlled flow eff. area (mm2): 0.15 | Free flow (L/min ANR @0.5MPa): 13 | Controlled flow (L/min ANR @0.5MPa): 10 | Applicable cylinder bore: phi4-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-04-H42-P7※Port: M5 equivalent body | Tube OD (mm): 4 (IN) / 1.8 (OUT) | Free flow eff. area (mm2): 0.2 | Controlled flow eff. area (mm2): 0.15 | Free flow (L/min ANR @0.5MPa): 13 | Controlled flow (L/min ANR @0.5MPa): 10 | Applicable cylinder bore: phi4-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-04-H24-P7※Port: M5 equivalent body | Tube OD (mm): 1.8 (IN) / 4 (OUT) | Free flow eff. area (mm2): 0.2 | Controlled flow eff. area (mm2): 0.15 | Free flow (L/min ANR @0.5MPa): 13 | Controlled flow (L/min ANR @0.5MPa): 10 | Applicable cylinder bore: phi4-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-04-H44-P7※Port: M5 equivalent body | Tube OD (mm): 4 / 4 | Free flow eff. area (mm2): 1.9 | Controlled flow eff. area (mm2): 1.9 (slow 0.2) | Free flow (L/min ANR @0.5MPa): 130 | Controlled flow (L/min ANR @0.5MPa): 130 (slow 13) | Applicable cylinder bore: phi4-25 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-06-H66-P7※Port: 1/8 equivalent body | Tube OD (mm): 6 / 6 | Free flow eff. area (mm2): 4.5 | Controlled flow eff. area (mm2): 4.5 (slow 0.2) | Free flow (L/min ANR @0.5MPa): 300 | Controlled flow (L/min ANR @0.5MPa): 300 (slow 13) | Applicable cylinder bore: phi6-40 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-08-H66-P7※Port: 1/4 equivalent body | Tube OD (mm): 6 / 6 | Free flow eff. area (mm2): 6 | Controlled flow eff. area (mm2): 6 | Free flow (L/min ANR @0.5MPa): 400 | Controlled flow (L/min ANR @0.5MPa): 400 | Applicable cylinder bore: phi20-50 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-08-H88-P7※Port: 1/4 equivalent body | Tube OD (mm): 8 / 8 | Free flow eff. area (mm2): 8 | Controlled flow eff. area (mm2): 8 | Free flow (L/min ANR @0.5MPa): 550 | Controlled flow (L/min ANR @0.5MPa): 550 | Applicable cylinder bore: phi20-50 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-10-H88-P7※Port: 3/8 equivalent body | Tube OD (mm): 8 / 8 | Free flow eff. area (mm2): 13.5 | Controlled flow eff. area (mm2): 13.5 | Free flow (L/min ANR @0.5MPa): 900 | Controlled flow (L/min ANR @0.5MPa): 900 | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-10-H1010-P7※Port: 3/8 equivalent body | Tube OD (mm): 10 / 10 | Free flow eff. area (mm2): 16.5 | Controlled flow eff. area (mm2): 16.5 | Free flow (L/min ANR @0.5MPa): 1100 | Controlled flow (L/min ANR @0.5MPa): 1100 | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
SCL2-10-H1212-P7※Port: 3/8 equivalent body | Tube OD (mm): 12 / 12 | Free flow eff. area (mm2): 18 | Controlled flow eff. area (mm2): 18 | Free flow (L/min ANR @0.5MPa): 1200 | Controlled flow (L/min ANR @0.5MPa): 1200 | Applicable cylinder bore: phi32-75 | Max pressure (MPa): 1.0 | Clean suffix: P7※ (P70 dust-generation prevention / P74 Cu-Si-halogen free)
