• CKD Regulator 2619 Series (Rc1/8, Rc1/4; P80, P90, P94 Clean Specifications)
1 1

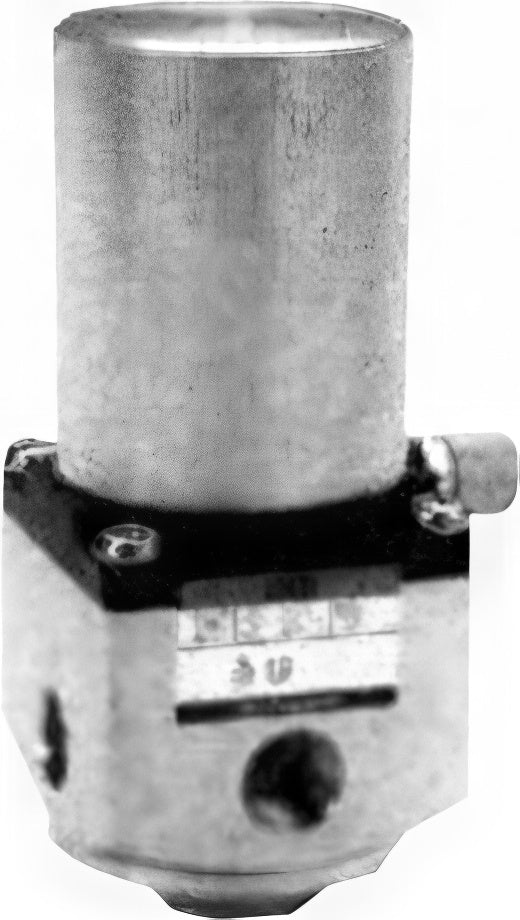

CKD Regulator 2619 Series (Rc1/8, Rc1/4; P80, P90, P94 Clean Specifications)

CKD Regulator 2619 Series (Rc1/8, Rc1/4; P80, P90, P94 Clean Specifications)

Regulator for clean applications.

Specifications

Fluid Compressed air
Ambient/fluid temp. (℃) 5~60
Set pressure range (MPa) 0.04~0.83
Relief With relief mechanism
Port size (Rc) 1/8·1/4
2619-1C-P80 Fluid: Compressed air | Max. working pressure (MPa): 2.06 | Proof pressure (MPa): 3.09 | Ambient/fluid temp. (℃): 5~60 | Set pressure range (MPa): 0.04~0.83 | Relief: With relief mechanism | Port size (Rc): 1/8·1/4 | Mass (kg): 0.27
2619-2C-P80 Fluid: Compressed air | Max. working pressure (MPa): 2.06 | Proof pressure (MPa): 3.09 | Ambient/fluid temp. (℃): 5~60 | Set pressure range (MPa): 0.04~0.83 | Relief: With relief mechanism | Port size (Rc): 1/8·1/4 | Mass (kg): 0.27
2619-1C-P90 Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure range (MPa): 0.04~0.83 | Relief: With relief mechanism | Port size (Rc): 1/8·1/4 | Mass (kg): 0.42
2619-1C-P94 Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure range (MPa): 0.04~0.83 | Relief: With relief mechanism | Port size (Rc): 1/8·1/4 | Mass (kg): 0.42
2619-2C-P90 Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure range (MPa): 0.04~0.83 | Relief: With relief mechanism | Port size (Rc): 1/8·1/4 | Mass (kg): 0.42
2619-2C-P94 Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure range (MPa): 0.04~0.83 | Relief: With relief mechanism | Port size (Rc): 1/8·1/4 | Mass (kg): 0.42
Clean RegulatorsCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Regulator 2619 Series (Rc1/8, Rc1/4; P80, P90, P94 Clean Specifications)

Brand CKD·Clean Regulators

Available part numbers (6)

2619-1C-P80, 2619-2C-P80, 2619-1C-P90, 2619-1C-P94, 2619-2C-P90, 2619-2C-P94

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2619-1C-P80Fluid: Compressed air | Max. working pressure (MPa): 2.06 | Proof pressure (MPa): 3.09 | Ambient/fluid temp. (℃): 5~60 | Set pressure range (MPa): 0.04~0.83 | Relief: With relief mechanism | Port size (Rc): 1/8·1/4 | Mass (kg): 0.27
2619-2C-P80Fluid: Compressed air | Max. working pressure (MPa): 2.06 | Proof pressure (MPa): 3.09 | Ambient/fluid temp. (℃): 5~60 | Set pressure range (MPa): 0.04~0.83 | Relief: With relief mechanism | Port size (Rc): 1/8·1/4 | Mass (kg): 0.27
2619-1C-P90Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure range (MPa): 0.04~0.83 | Relief: With relief mechanism | Port size (Rc): 1/8·1/4 | Mass (kg): 0.42
2619-1C-P94Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure range (MPa): 0.04~0.83 | Relief: With relief mechanism | Port size (Rc): 1/8·1/4 | Mass (kg): 0.42
2619-2C-P90Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure range (MPa): 0.04~0.83 | Relief: With relief mechanism | Port size (Rc): 1/8·1/4 | Mass (kg): 0.42
2619-2C-P94Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Set pressure range (MPa): 0.04~0.83 | Relief: With relief mechanism | Port size (Rc): 1/8·1/4 | Mass (kg): 0.42
