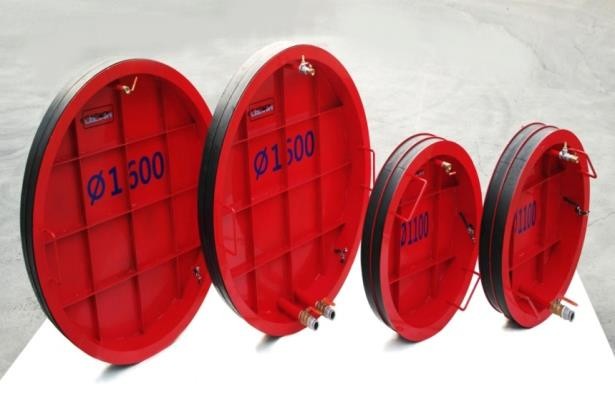

Daewon Industrial Air Release Type Pneumatic Pipe Plug — Low Pressure (80–2000 mm)
Daewon Industrial Air Release Type Pneumatic Pipe Plug — Low Pressure (80–2000 mm)
Air-release pipe plug that vents air from the pipe through a top-mounted by-pass, and can divert limited flow via pump and suction hose during repairs.
Key features
- Low-pressure rating: 1.5 kgf/cm² or less
Specifications
| Inflation pressure | 1.5 kgf/cm² |
|---|
| 880-008 | Pipe size (Ø mm): 80 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.4 kgf/cm² | Weight: 1.3 kg | Deflated diameter: 75 mm | By-pass pipe: 5A (6.5) | |
| 880-010 | Pipe size (Ø mm): 100 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.4 kgf/cm² | Weight: 2 kg | Deflated diameter: 95 mm | By-pass pipe: 8A (1/4) | |
| 880-015 | Pipe size (Ø mm): 150 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.4 kgf/cm² | Weight: 5 kg | Deflated diameter: 127 mm | By-pass pipe: 10A (3/8) | |
| 880-020 | Pipe size (Ø mm): 200 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.4 kgf/cm² | Weight: 7 kg | Deflated diameter: 180 mm | By-pass pipe: 40A (1½) | |
| 880-025 | Pipe size (Ø mm): 250 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.4 kgf/cm² | Weight: 9 kg | Deflated diameter: 230 mm | By-pass pipe: 40A (1½) | |
| 880-030 | Pipe size (Ø mm): 300 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.4 kgf/cm² | Weight: 11 kg | Deflated diameter: 280 mm | By-pass pipe: 40A (1½) | |
| 880-035 | Pipe size (Ø mm): 350 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.5 kgf/cm² | Weight: 13 kg | Deflated diameter: 330 mm | By-pass pipe: 40A (1½) | |
| 880-040 | Pipe size (Ø mm): 400 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.5 kgf/cm² | Weight: 19 kg | Deflated diameter: 380 mm | By-pass pipe: 40A (1½) | |
| 880-045 | Pipe size (Ø mm): 450 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.5 kgf/cm² | Weight: 23 kg | Deflated diameter: 425 mm | By-pass pipe: 40A (1½) | |
| 880-050 | Pipe size (Ø mm): 500 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.5 kgf/cm² | Weight: 25 kg | Deflated diameter: 480 mm | By-pass pipe: 40A (1½) | |
| 880-060 | Pipe size (Ø mm): 600 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 28 kg | Deflated diameter: 580 mm | By-pass pipe: 40A (1½) | |
| 880-070 | Pipe size (Ø mm): 700 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 39 kg | Deflated diameter: 680 mm | By-pass pipe: 50A (2) | |
| 880-080 | Pipe size (Ø mm): 800 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 50 kg | Deflated diameter: 780 mm | By-pass pipe: 50A (2) | |
| 880-090 | Pipe size (Ø mm): 900 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 68 kg | Deflated diameter: 880 mm | By-pass pipe: 50A (2) | |
| 880-100 | Pipe size (Ø mm): 1000 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 74 kg | Deflated diameter: 960 mm | By-pass pipe: 50A (2) | |
| 880-110 | Pipe size (Ø mm): 1100 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 96 kg | Deflated diameter: 1,080 mm | By-pass pipe: 50A (2) | |
| 880-120 | Pipe size (Ø mm): 1200 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.7 kgf/cm² | Weight: 118 kg | Deflated diameter: 1,180 mm | By-pass pipe: 50A (2) | |
| 880-130 | Pipe size (Ø mm): 1300 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.7 kgf/cm² | Weight: 140 kg | Deflated diameter: 1,280 mm | By-pass pipe: 50A (2) | |
| 880-135 | Pipe size (Ø mm): 1350 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.7 kgf/cm² | Weight: 151 kg | Deflated diameter: 1,330 mm | By-pass pipe: 50A (2) | |
| 880-150 | Pipe size (Ø mm): 1500 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.7 kgf/cm² | Weight: 178 kg | Deflated diameter: 1,480 mm | By-pass pipe: 50A (2) X 2EA | |
| 880-180 | Pipe size (Ø mm): 1800 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.7 kgf/cm² | Weight: 216 kg | Deflated diameter: 1,780 mm | By-pass pipe: 50A (2)X 2EA | |
| 880-200 | Pipe size (Ø mm): 2000 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.7 kgf/cm² | Weight: 238 kg | Deflated diameter: 1,980 mm | By-pass pipe: 100A (2)X 2EA |
Pipe Plugs & Test EquipmentDaewon Industrial
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Daewon Industrial Air Release Type Pneumatic Pipe Plug — Low Pressure (80–2000 mm)
Available part numbers (22)
880-008, 880-010, 880-015, 880-020, 880-025, 880-030, 880-035, 880-040, 880-045, 880-050 + 12 more — see full table ↓
How to order
Send the Daewon Industrial part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Daewon Industrial
Pipe Plugs & Test Equipment
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| 880-008 | Pipe size (Ø mm): 80 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.4 kgf/cm² | Weight: 1.3 kg | Deflated diameter: 75 mm | By-pass pipe: 5A (6.5) | ||
| 880-010 | Pipe size (Ø mm): 100 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.4 kgf/cm² | Weight: 2 kg | Deflated diameter: 95 mm | By-pass pipe: 8A (1/4) | ||
| 880-015 | Pipe size (Ø mm): 150 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.4 kgf/cm² | Weight: 5 kg | Deflated diameter: 127 mm | By-pass pipe: 10A (3/8) | ||
| 880-020 | Pipe size (Ø mm): 200 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.4 kgf/cm² | Weight: 7 kg | Deflated diameter: 180 mm | By-pass pipe: 40A (1½) | ||
| 880-025 | Pipe size (Ø mm): 250 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.4 kgf/cm² | Weight: 9 kg | Deflated diameter: 230 mm | By-pass pipe: 40A (1½) | ||
| 880-030 | Pipe size (Ø mm): 300 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.4 kgf/cm² | Weight: 11 kg | Deflated diameter: 280 mm | By-pass pipe: 40A (1½) | ||
| 880-035 | Pipe size (Ø mm): 350 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.5 kgf/cm² | Weight: 13 kg | Deflated diameter: 330 mm | By-pass pipe: 40A (1½) | ||
| 880-040 | Pipe size (Ø mm): 400 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.5 kgf/cm² | Weight: 19 kg | Deflated diameter: 380 mm | By-pass pipe: 40A (1½) | ||
| 880-045 | Pipe size (Ø mm): 450 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.5 kgf/cm² | Weight: 23 kg | Deflated diameter: 425 mm | By-pass pipe: 40A (1½) | ||
| 880-050 | Pipe size (Ø mm): 500 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.5 kgf/cm² | Weight: 25 kg | Deflated diameter: 480 mm | By-pass pipe: 40A (1½) | ||
| 880-060 | Pipe size (Ø mm): 600 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 28 kg | Deflated diameter: 580 mm | By-pass pipe: 40A (1½) | ||
| 880-070 | Pipe size (Ø mm): 700 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 39 kg | Deflated diameter: 680 mm | By-pass pipe: 50A (2) | ||
| 880-080 | Pipe size (Ø mm): 800 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 50 kg | Deflated diameter: 780 mm | By-pass pipe: 50A (2) | ||
| 880-090 | Pipe size (Ø mm): 900 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 68 kg | Deflated diameter: 880 mm | By-pass pipe: 50A (2) | ||
| 880-100 | Pipe size (Ø mm): 1000 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 74 kg | Deflated diameter: 960 mm | By-pass pipe: 50A (2) | ||
| 880-110 | Pipe size (Ø mm): 1100 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 96 kg | Deflated diameter: 1,080 mm | By-pass pipe: 50A (2) | ||
| 880-120 | Pipe size (Ø mm): 1200 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.7 kgf/cm² | Weight: 118 kg | Deflated diameter: 1,180 mm | By-pass pipe: 50A (2) | ||
| 880-130 | Pipe size (Ø mm): 1300 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.7 kgf/cm² | Weight: 140 kg | Deflated diameter: 1,280 mm | By-pass pipe: 50A (2) | ||
| 880-135 | Pipe size (Ø mm): 1350 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.7 kgf/cm² | Weight: 151 kg | Deflated diameter: 1,330 mm | By-pass pipe: 50A (2) | ||
| 880-150 | Pipe size (Ø mm): 1500 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.7 kgf/cm² | Weight: 178 kg | Deflated diameter: 1,480 mm | By-pass pipe: 50A (2) X 2EA | ||
| 880-180 | Pipe size (Ø mm): 1800 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.7 kgf/cm² | Weight: 216 kg | Deflated diameter: 1,780 mm | By-pass pipe: 50A (2)X 2EA | ||
| 880-200 | Pipe size (Ø mm): 2000 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.7 kgf/cm² | Weight: 238 kg | Deflated diameter: 1,980 mm | By-pass pipe: 100A (2)X 2EA |
Need a different model, or a part not listed here? Send us your parts list →
