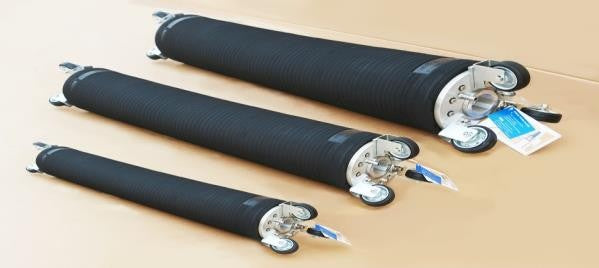

Daewon Industrial By-Pass Packer Assembly for Trenchless Sewer Repair (150–600 mm)

Daewon Industrial By-Pass Packer Assembly for Trenchless Sewer Repair (150–600 mm)

By-pass packer for trenchless sewer repair with water diversion.

Key features

  • Aluminum-steel composite body for low weight; nylon-cord reinforced rubber on both sides
  • Bends to pass the gap between manhole and pipe
  • Available in 1,000 mm or 700 mm length

Specifications

Inflation pressure 1.5 kgf/cm²
Max back pressure 0.6 kgf/cm²
Length 1,000 / 700 mm
By-Pass Packer Assembly for Trenchless Sewer Repair (150–600 mm)
By-Pass Packer Assembly for Trenchless Sewer Repair (150–600 mm)
MU-0125 Pipe size (Ø mm): 150-250 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 7.0 kg | Length: 1,000 / 700 mm | Deflated diameter: 115 mm | By-pass pipe: 20A
MU-0134 Pipe size (Ø mm): 300-400 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 11.0 kg | Length: 1,000 / 700 mm | Deflated diameter: 180 mm | By-pass pipe: 50A (2)
MU-0146 Pipe size (Ø mm): 450-600 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 15.0 kg | Length: 1,000 / 700 mm | Deflated diameter: 320 mm | By-pass pipe: 50A (2)
Pipe Plugs & Test EquipmentDaewon Industrial
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Daewon Industrial By-Pass Packer Assembly for Trenchless Sewer Repair (150–600 mm)

Brand Daewon Industrial·Pipe Plugs & Test Equipment

Available part numbers (3)

MU-0125, MU-0134, MU-0146

How to order

Send the Daewon Industrial part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
By-Pass Packer Assembly for Trenchless Sewer Repair (150–600 mm)
By-Pass Packer Assembly for Trenchless Sewer Repair (150–600 mm)
0 selected
RFQ List (0)
Product codeSpec
MU-0125Pipe size (Ø mm): 150-250 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 7.0 kg | Length: 1,000 / 700 mm | Deflated diameter: 115 mm | By-pass pipe: 20A
MU-0134Pipe size (Ø mm): 300-400 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 11.0 kg | Length: 1,000 / 700 mm | Deflated diameter: 180 mm | By-pass pipe: 50A (2)
MU-0146Pipe size (Ø mm): 450-600 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 15.0 kg | Length: 1,000 / 700 mm | Deflated diameter: 320 mm | By-pass pipe: 50A (2)
