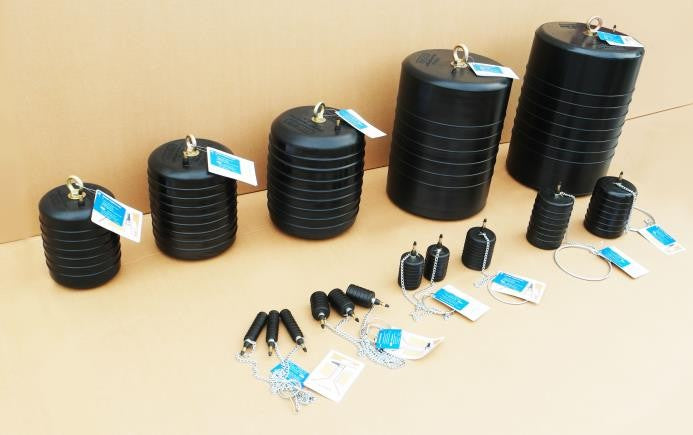

Daewon Industrial Cylinder Type Pneumatic Pipe Plug (30–600 mm)

Cylinder-type pneumatic pipe plug that inflates and deflates quickly, allowing remote operation for worker safety and time savings.

Key features

For water blocking, water-tightness tests and pneumatic pressure tests
Length includes eye-bolt

Cylinder Type Pneumatic Pipe Plug (30–600 mm)

635-031		Pipe size (Ø mm): 30-40 \| Inflation pressure: 2.0 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 0.1 kg \| Deflated length: 140 mm \| Deflated diameter: 26 mm
635-052		Pipe size (Ø mm): 50 \| Inflation pressure: 2.0 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 0.2 kg \| Deflated length: 113 mm \| Deflated diameter: 44 mm
635-073		Pipe size (Ø mm): 75 \| Inflation pressure: 2.0 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 0.3 kg \| Deflated length: 132 mm \| Deflated diameter: 62 mm
635-104		Pipe size (Ø mm): 100 \| Inflation pressure: 2.0 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 0.4 kg \| Deflated length: 150 mm \| Deflated diameter: 81 mm
635-125		Pipe size (Ø mm): 125 \| Inflation pressure: 2.0 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 0.9 kg \| Deflated length: 210 mm \| Deflated diameter: 110 mm
635-156		Pipe size (Ø mm): 150 \| Inflation pressure: 2.0 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 1.0 kg \| Deflated length: 215 mm \| Deflated diameter: 132 mm
635-208		Pipe size (Ø mm): 200 \| Inflation pressure: 2.0 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 1.8 kg \| Deflated length: 260 mm \| Deflated diameter: 170 mm
635-250		Pipe size (Ø mm): 250 \| Inflation pressure: 2.0 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 3.6 kg \| Deflated length: 330 mm \| Deflated diameter: 210 mm
635-312		Pipe size (Ø mm): 300 \| Inflation pressure: 1.5 kgf/cm² \| Max back pressure: 0.67 kgf/cm² \| Weight: 4.7 kg \| Deflated length: 380 mm \| Deflated diameter: 260 mm
635-314		Pipe size (Ø mm): 350 \| Inflation pressure: 1.5 kgf/cm² \| Max back pressure: 0.67 kgf/cm² \| Weight: 8.3 kg \| Deflated length: 520 mm \| Deflated diameter: 335 mm
635-400		Pipe size (Ø mm): 400 \| Inflation pressure: 1.5 kgf/cm² \| Max back pressure: 0.67 kgf/cm² \| Weight: 10 kg \| Deflated length: 600 mm \| Deflated diameter: 360 mm
635-450		Pipe size (Ø mm): 450 \| Inflation pressure: 1.5 kgf/cm² \| Max back pressure: 0.67 kgf/cm² \| Weight: 13.2 kg \| Deflated length: 600 mm \| Deflated diameter: 420 mm
635-500		Pipe size (Ø mm): 500 \| Inflation pressure: 1.5 kgf/cm² \| Max back pressure: 0.67 kgf/cm² \| Weight: 17 kg \| Deflated length: 600 mm \| Deflated diameter: 480 mm
635-600		Pipe size (Ø mm): 600 \| Inflation pressure: 1.5 kgf/cm² \| Max back pressure: 0.67 kgf/cm² \| Weight: 26 kg \| Deflated length: 660 mm \| Deflated diameter: 550 mm

Pipe Plugs & Test EquipmentDaewon Industrial

14 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Daewon Industrial Cylinder Type Pneumatic Pipe Plug (30–600 mm)

Brand Daewon Industrial·Pipe Plugs & Test Equipment

Available part numbers (14)

635-031, 635-052, 635-073, 635-104, 635-125, 635-156, 635-208, 635-250, 635-312, 635-314 + 4 more — see full table ↓

How to order

Send the Daewon Industrial part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	635-031	Pipe size (Ø mm): 30-40 \| Inflation pressure: 2.0 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 0.1 kg \| Deflated length: 140 mm \| Deflated diameter: 26 mm
	635-052	Pipe size (Ø mm): 50 \| Inflation pressure: 2.0 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 0.2 kg \| Deflated length: 113 mm \| Deflated diameter: 44 mm
	635-073	Pipe size (Ø mm): 75 \| Inflation pressure: 2.0 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 0.3 kg \| Deflated length: 132 mm \| Deflated diameter: 62 mm
	635-104	Pipe size (Ø mm): 100 \| Inflation pressure: 2.0 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 0.4 kg \| Deflated length: 150 mm \| Deflated diameter: 81 mm
	635-125	Pipe size (Ø mm): 125 \| Inflation pressure: 2.0 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 0.9 kg \| Deflated length: 210 mm \| Deflated diameter: 110 mm
	635-156	Pipe size (Ø mm): 150 \| Inflation pressure: 2.0 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 1.0 kg \| Deflated length: 215 mm \| Deflated diameter: 132 mm
	635-208	Pipe size (Ø mm): 200 \| Inflation pressure: 2.0 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 1.8 kg \| Deflated length: 260 mm \| Deflated diameter: 170 mm
	635-250	Pipe size (Ø mm): 250 \| Inflation pressure: 2.0 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 3.6 kg \| Deflated length: 330 mm \| Deflated diameter: 210 mm
	635-312	Pipe size (Ø mm): 300 \| Inflation pressure: 1.5 kgf/cm² \| Max back pressure: 0.67 kgf/cm² \| Weight: 4.7 kg \| Deflated length: 380 mm \| Deflated diameter: 260 mm
	635-314	Pipe size (Ø mm): 350 \| Inflation pressure: 1.5 kgf/cm² \| Max back pressure: 0.67 kgf/cm² \| Weight: 8.3 kg \| Deflated length: 520 mm \| Deflated diameter: 335 mm
	635-400	Pipe size (Ø mm): 400 \| Inflation pressure: 1.5 kgf/cm² \| Max back pressure: 0.67 kgf/cm² \| Weight: 10 kg \| Deflated length: 600 mm \| Deflated diameter: 360 mm
	635-450	Pipe size (Ø mm): 450 \| Inflation pressure: 1.5 kgf/cm² \| Max back pressure: 0.67 kgf/cm² \| Weight: 13.2 kg \| Deflated length: 600 mm \| Deflated diameter: 420 mm
	635-500	Pipe size (Ø mm): 500 \| Inflation pressure: 1.5 kgf/cm² \| Max back pressure: 0.67 kgf/cm² \| Weight: 17 kg \| Deflated length: 600 mm \| Deflated diameter: 480 mm
	635-600	Pipe size (Ø mm): 600 \| Inflation pressure: 1.5 kgf/cm² \| Max back pressure: 0.67 kgf/cm² \| Weight: 26 kg \| Deflated length: 660 mm \| Deflated diameter: 550 mm
