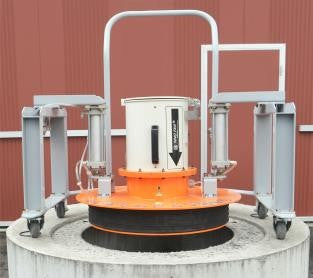

Daewon Industrial Integrated Smoke Testing Equipment for Sewers

Smoke test set for quickly locating inflow points in sewers (roof drains, building drains, faulty pipe joints).

Key features

Fits 648 mm manholes
Blower 220 V / 310 W / 60 Hz, 3,060 m³/h, pneumatic cylinder stroke 170 mm
Smoke cans (made in Korea, Ø58 x 95 mm, 15 g, 40–60 s white smoke, 5 pcs) are sold subject to explosives-safety regulations

Integrated Smoke Testing Equipment for Sewers

SM-0011		Item: Main body \| Weight: 23 kg \| Size (W x L x H): 700 x 500 x 280 mm \| Cover height range: 170–190 mm
AIR-0012		Item: Manhole cover plug (rubber) \| Manhole: Ø600 \| Inflation pressure: 1.5 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 1.8 kg \| Deflated diameter: 550 mm

Pipe Plugs & Test EquipmentDaewon Industrial

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Daewon Industrial Integrated Smoke Testing Equipment for Sewers

Brand Daewon Industrial·Pipe Plugs & Test Equipment

Available part numbers (2)

SM-0011, AIR-0012

How to order

Send the Daewon Industrial part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SM-0011	Item: Main body \| Weight: 23 kg \| Size (W x L x H): 700 x 500 x 280 mm \| Cover height range: 170–190 mm
	AIR-0012	Item: Manhole cover plug (rubber) \| Manhole: Ø600 \| Inflation pressure: 1.5 kgf/cm² \| Max back pressure: 0.6 kgf/cm² \| Weight: 1.8 kg \| Deflated diameter: 550 mm
