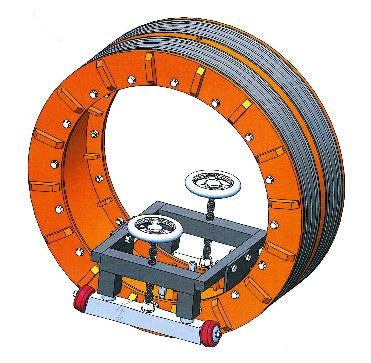

Daewon Industrial Joint Testing Plug Equipment — High Pressure with Control Box (600–3000 mm)
Daewon Industrial Joint Testing Plug Equipment — High Pressure with Control Box (600–3000 mm)
High-pressure joint-testing plug with integrated pneumatic control box, designed to move easily through and test pipes with curved sections.
Key features
- Weight based on standard production thickness
Specifications
| Inflation pressure | 12.0 kgf/cm² |
|---|---|
| Nozzle max pressure | 5.0 kgf/cm² |
| Check width | 278 mm |
| 801-060 | Pipe size (Ø mm): 600 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 4.8 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 120 kg | Deflated diameter: 580 mm | Check width: 278 mm | |
| 801-070 | Pipe size (Ø mm): 700 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 4.8 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 145 kg | Deflated diameter: 680 mm | Check width: 278 mm | |
| 801-080 | Pipe size (Ø mm): 800 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 4.8 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 160 kg | Deflated diameter: 780 mm | Check width: 278 mm | |
| 801-090 | Pipe size (Ø mm): 900 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 4.8 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 200 kg | Deflated diameter: 880 mm | Check width: 278 mm | |
| 801-100 | Pipe size (Ø mm): 1000 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 4.8 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 220 kg | Deflated diameter: 980 mm | Check width: 278 mm | |
| 801-110 | Pipe size (Ø mm): 1100 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 5.4 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 250 kg | Deflated diameter: 1,080 mm | Check width: 278 mm | |
| 801-120 | Pipe size (Ø mm): 1200 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 5.4 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 280 kg | Deflated diameter: 1,180 mm | Check width: 278 mm | |
| 801-130 | Pipe size (Ø mm): 1300 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 5.4 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 330 kg | Deflated diameter: 1,280 mm | Check width: 278 mm | |
| 801-135 | Pipe size (Ø mm): 1350 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 5.4 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 380 kg | Deflated diameter: 1,330 mm | Check width: 278 mm | |
| 801-150 | Pipe size (Ø mm): 1500 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 6.0 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 420 kg | Deflated diameter: 1,480 mm | Check width: 278 mm | |
| 801-180 | Pipe size (Ø mm): 1800 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 6.0 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 470 kg | Deflated diameter: 1,780 mm | Check width: 278 mm | |
| 801-200 | Pipe size (Ø mm): 2000 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 6.0 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 560 kg | Deflated diameter: 1,980 mm | Check width: 278 mm | |
| 801-250 | Pipe size (Ø mm): 2500 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 6.0 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 710 kg | Deflated diameter: 2,480 mm | Check width: 278 mm | |
| 801-300 | Pipe size (Ø mm): 3000 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 6.0 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 930 kg | Deflated diameter: 2,980 mm | Check width: 278 mm |
Pipe Plugs & Test EquipmentDaewon Industrial
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Daewon Industrial Joint Testing Plug Equipment — High Pressure with Control Box (600–3000 mm)
Available part numbers (14)
801-060, 801-070, 801-080, 801-090, 801-100, 801-110, 801-120, 801-130, 801-135, 801-150 + 4 more — see full table ↓
How to order
Send the Daewon Industrial part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Daewon Industrial
Pipe Plugs & Test Equipment
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| 801-060 | Pipe size (Ø mm): 600 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 4.8 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 120 kg | Deflated diameter: 580 mm | Check width: 278 mm | ||
| 801-070 | Pipe size (Ø mm): 700 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 4.8 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 145 kg | Deflated diameter: 680 mm | Check width: 278 mm | ||
| 801-080 | Pipe size (Ø mm): 800 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 4.8 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 160 kg | Deflated diameter: 780 mm | Check width: 278 mm | ||
| 801-090 | Pipe size (Ø mm): 900 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 4.8 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 200 kg | Deflated diameter: 880 mm | Check width: 278 mm | ||
| 801-100 | Pipe size (Ø mm): 1000 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 4.8 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 220 kg | Deflated diameter: 980 mm | Check width: 278 mm | ||
| 801-110 | Pipe size (Ø mm): 1100 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 5.4 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 250 kg | Deflated diameter: 1,080 mm | Check width: 278 mm | ||
| 801-120 | Pipe size (Ø mm): 1200 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 5.4 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 280 kg | Deflated diameter: 1,180 mm | Check width: 278 mm | ||
| 801-130 | Pipe size (Ø mm): 1300 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 5.4 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 330 kg | Deflated diameter: 1,280 mm | Check width: 278 mm | ||
| 801-135 | Pipe size (Ø mm): 1350 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 5.4 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 380 kg | Deflated diameter: 1,330 mm | Check width: 278 mm | ||
| 801-150 | Pipe size (Ø mm): 1500 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 6.0 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 420 kg | Deflated diameter: 1,480 mm | Check width: 278 mm | ||
| 801-180 | Pipe size (Ø mm): 1800 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 6.0 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 470 kg | Deflated diameter: 1,780 mm | Check width: 278 mm | ||
| 801-200 | Pipe size (Ø mm): 2000 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 6.0 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 560 kg | Deflated diameter: 1,980 mm | Check width: 278 mm | ||
| 801-250 | Pipe size (Ø mm): 2500 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 6.0 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 710 kg | Deflated diameter: 2,480 mm | Check width: 278 mm | ||
| 801-300 | Pipe size (Ø mm): 3000 | Inflation pressure: 12.0 kgf/cm² | Max back pressure: 6.0 kgf/cm² | Nozzle max pressure: 5.0 kgf/cm² | Weight: 930 kg | Deflated diameter: 2,980 mm | Check width: 278 mm |
