Daewon Industrial Joint Testing Plug Equipment — Low Pressure (600–2000 mm)
Daewon Industrial Joint Testing Plug Equipment — Low Pressure (600–2000 mm)

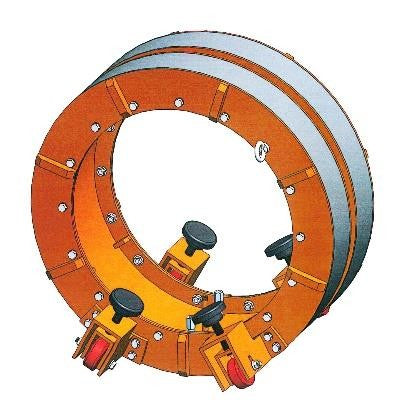

Wheeled joint-testing plug for water-tightness testing of joints in large sewer pipes.
Key features
- Large pipes rarely leak through the barrel, so testing focuses on joints
- Weight based on standard production thickness
Specifications
| Inflation pressure | 2.0 kgf/cm² |
|---|---|
| Nozzle max pressure | 1.5 kgf/cm² |
| Check width | 258 mm |
| 800-060 | Pipe size (Ø mm): 600 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.8 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 58 kg | Deflated diameter: 580 mm | Check width: 258 mm | |
| 800-070 | Pipe size (Ø mm): 700 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.8 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 67 kg | Deflated diameter: 680 mm | Check width: 258 mm | |
| 800-080 | Pipe size (Ø mm): 800 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.8 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 85 kg | Deflated diameter: 780 mm | Check width: 258 mm | |
| 800-090 | Pipe size (Ø mm): 900 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.8 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 100 kg | Deflated diameter: 880 mm | Check width: 258 mm | |
| 800-100 | Pipe size (Ø mm): 1000 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.8 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 116 kg | Deflated diameter: 980 mm | Check width: 258 mm | |
| 800-110 | Pipe size (Ø mm): 1100 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.9 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 138 kg | Deflated diameter: 1,080 mm | Check width: 258 mm | |
| 800-120 | Pipe size (Ø mm): 1200 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.9 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 160 kg | Deflated diameter: 1,180 mm | Check width: 258 mm | |
| 800-130 | Pipe size (Ø mm): 1300 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.9 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 182 kg | Deflated diameter: 1,280 mm | Check width: 258 mm | |
| 800-135 | Pipe size (Ø mm): 1350 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.9 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 195 kg | Deflated diameter: 1,330 mm | Check width: 258 mm | |
| 800-150 | Pipe size (Ø mm): 1500 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.9 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 213 kg | Deflated diameter: 1,480 mm | Check width: 258 mm | |
| 800-180 | Pipe size (Ø mm): 1800 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.9 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 260 kg | Deflated diameter: 1,780 mm | Check width: 258 mm | |
| 800-200 | Pipe size (Ø mm): 2000 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.9 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 292 kg | Deflated diameter: 1,980 mm | Check width: 258 mm |
Pipe Plugs & Test EquipmentDaewon Industrial
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Daewon Industrial Joint Testing Plug Equipment — Low Pressure (600–2000 mm)
Available part numbers (12)
800-060, 800-070, 800-080, 800-090, 800-100, 800-110, 800-120, 800-130, 800-135, 800-150 + 2 more — see full table ↓
How to order
Send the Daewon Industrial part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Daewon Industrial
Pipe Plugs & Test Equipment
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| 800-060 | Pipe size (Ø mm): 600 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.8 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 58 kg | Deflated diameter: 580 mm | Check width: 258 mm | ||
| 800-070 | Pipe size (Ø mm): 700 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.8 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 67 kg | Deflated diameter: 680 mm | Check width: 258 mm | ||
| 800-080 | Pipe size (Ø mm): 800 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.8 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 85 kg | Deflated diameter: 780 mm | Check width: 258 mm | ||
| 800-090 | Pipe size (Ø mm): 900 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.8 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 100 kg | Deflated diameter: 880 mm | Check width: 258 mm | ||
| 800-100 | Pipe size (Ø mm): 1000 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.8 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 116 kg | Deflated diameter: 980 mm | Check width: 258 mm | ||
| 800-110 | Pipe size (Ø mm): 1100 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.9 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 138 kg | Deflated diameter: 1,080 mm | Check width: 258 mm | ||
| 800-120 | Pipe size (Ø mm): 1200 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.9 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 160 kg | Deflated diameter: 1,180 mm | Check width: 258 mm | ||
| 800-130 | Pipe size (Ø mm): 1300 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.9 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 182 kg | Deflated diameter: 1,280 mm | Check width: 258 mm | ||
| 800-135 | Pipe size (Ø mm): 1350 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.9 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 195 kg | Deflated diameter: 1,330 mm | Check width: 258 mm | ||
| 800-150 | Pipe size (Ø mm): 1500 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.9 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 213 kg | Deflated diameter: 1,480 mm | Check width: 258 mm | ||
| 800-180 | Pipe size (Ø mm): 1800 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.9 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 260 kg | Deflated diameter: 1,780 mm | Check width: 258 mm | ||
| 800-200 | Pipe size (Ø mm): 2000 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.9 kgf/cm² | Nozzle max pressure: 1.5 kgf/cm² | Weight: 292 kg | Deflated diameter: 1,980 mm | Check width: 258 mm |
Need a different model, or a part not listed here? Send us your parts list →
