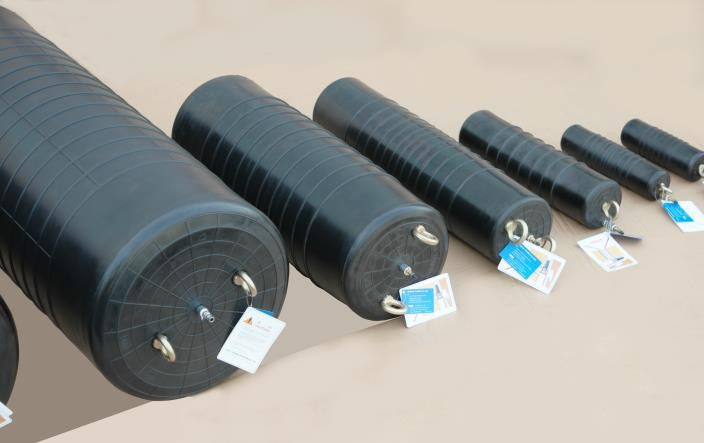

Daewon Industrial Multi Cylinder Type Pneumatic Pipe Plug (80–2000 mm)
Daewon Industrial Multi Cylinder Type Pneumatic Pipe Plug (80–2000 mm)
Multi-size pneumatic pipe plug: one plug seals a range of pipe sizes from 80 mm to 2000 mm.
Key features
- Blocks water, soil and sludge during construction, even through small manholes on large-diameter pipes
- For water blocking, water-tightness tests and pneumatic pressure tests
| 90071 | Pipe size (Ø mm): 80-150 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.37 kgf/cm² | Weight: 0.6 kg | Deflated length: 250 mm | Deflated diameter: 75 mm | |
| 90072 | Pipe size (Ø mm): 100-200 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.37 kgf/cm² | Weight: 0.7 kg | Deflated length: 320 mm | Deflated diameter: 90 mm | |
| 90073 | Pipe size (Ø mm): 150-300 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.37 kgf/cm² | Weight: 2.3 kg | Deflated length: 540 mm | Deflated diameter: 130 mm | |
| 90074 | Pipe size (Ø mm): 200-500 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.37 kgf/cm² | Weight: 5.8 kg | Deflated length: 750 mm | Deflated diameter: 190 mm | |
| 90075 | Pipe size (Ø mm): 300-600 | Inflation pressure: 1.2 kgf/cm² | Max back pressure: 0.42 kgf/cm² | Weight: 10.0 kg | Deflated length: 785 mm | Deflated diameter: 290 mm | |
| 90076 | Pipe size (Ø mm): 450-1000 | Inflation pressure: 1.0 kgf/cm² | Max back pressure: 0.45 kgf/cm² | Weight: 34.0 kg | Deflated length: 1,210 mm | Deflated diameter: 450 mm | |
| 90077 | Pipe size (Ø mm): 600-1200 | Inflation pressure: 1.0 kgf/cm² | Max back pressure: 0.45 kgf/cm² | Weight: 53.0 kg | Deflated length: 1,450 mm | Deflated diameter: 500 mm | |
| 90078 | Pipe size (Ø mm): 600-1500 | Inflation pressure: 0.8 kgf/cm² | Max back pressure: 0.45 kgf/cm² | Weight: 120.0 kg | Deflated length: 2,300 mm | Deflated diameter: 500 mm | |
| 90079 | Pipe size (Ø mm): 800-1500 | Inflation pressure: 0.8 kgf/cm² | Max back pressure: 0.50 kgf/cm² | Weight: 190.0 kg | Deflated length: 1,900 mm | Deflated diameter: 700 mm | |
| 90080 | Pipe size (Ø mm): 1000-2000 | Inflation pressure: 0.8 kgf/cm² | Max back pressure: 0.50 kgf/cm² | Weight: 300.0 kg | Deflated length: 2,800 mm | Deflated diameter: 960 mm |
Pipe Plugs & Test EquipmentDaewon Industrial
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Daewon Industrial Multi Cylinder Type Pneumatic Pipe Plug (80–2000 mm)
Available part numbers (10)
90071, 90072, 90073, 90074, 90075, 90076, 90077, 90078, 90079, 90080
How to order
Send the Daewon Industrial part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Daewon Industrial
Pipe Plugs & Test Equipment
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| 90071 | Pipe size (Ø mm): 80-150 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.37 kgf/cm² | Weight: 0.6 kg | Deflated length: 250 mm | Deflated diameter: 75 mm | ||
| 90072 | Pipe size (Ø mm): 100-200 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.37 kgf/cm² | Weight: 0.7 kg | Deflated length: 320 mm | Deflated diameter: 90 mm | ||
| 90073 | Pipe size (Ø mm): 150-300 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.37 kgf/cm² | Weight: 2.3 kg | Deflated length: 540 mm | Deflated diameter: 130 mm | ||
| 90074 | Pipe size (Ø mm): 200-500 | Inflation pressure: 1.5 kgf/cm² | Max back pressure: 0.37 kgf/cm² | Weight: 5.8 kg | Deflated length: 750 mm | Deflated diameter: 190 mm | ||
| 90075 | Pipe size (Ø mm): 300-600 | Inflation pressure: 1.2 kgf/cm² | Max back pressure: 0.42 kgf/cm² | Weight: 10.0 kg | Deflated length: 785 mm | Deflated diameter: 290 mm | ||
| 90076 | Pipe size (Ø mm): 450-1000 | Inflation pressure: 1.0 kgf/cm² | Max back pressure: 0.45 kgf/cm² | Weight: 34.0 kg | Deflated length: 1,210 mm | Deflated diameter: 450 mm | ||
| 90077 | Pipe size (Ø mm): 600-1200 | Inflation pressure: 1.0 kgf/cm² | Max back pressure: 0.45 kgf/cm² | Weight: 53.0 kg | Deflated length: 1,450 mm | Deflated diameter: 500 mm | ||
| 90078 | Pipe size (Ø mm): 600-1500 | Inflation pressure: 0.8 kgf/cm² | Max back pressure: 0.45 kgf/cm² | Weight: 120.0 kg | Deflated length: 2,300 mm | Deflated diameter: 500 mm | ||
| 90079 | Pipe size (Ø mm): 800-1500 | Inflation pressure: 0.8 kgf/cm² | Max back pressure: 0.50 kgf/cm² | Weight: 190.0 kg | Deflated length: 1,900 mm | Deflated diameter: 700 mm | ||
| 90080 | Pipe size (Ø mm): 1000-2000 | Inflation pressure: 0.8 kgf/cm² | Max back pressure: 0.50 kgf/cm² | Weight: 300.0 kg | Deflated length: 2,800 mm | Deflated diameter: 960 mm |
Need a different model, or a part not listed here? Send us your parts list →
