Daewon Industrial Partial Joint Testing Packer — Integral Type (150–400 mm)

Daewon Industrial Partial Joint Testing Packer — Integral Type (150–400 mm)

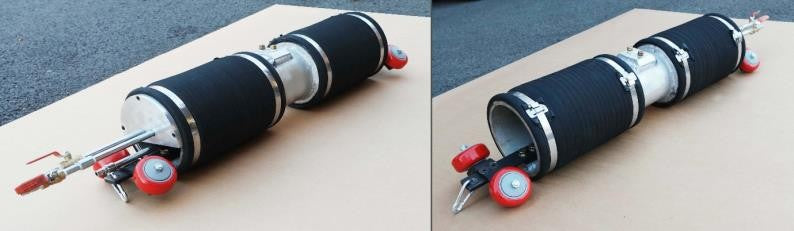

Integral packer for water-tightness and pneumatic testing of short sections and joints in new or repaired sewer pipes, for precise and safe testing of a short check point.

Specifications

Inflation pressure 2.0 kgf/cm²
Max back pressure 0.6 kgf/cm²
Max check pressure (water) 1.0 kgf/cm²
Deflated length 700 mm
Partial Joint Testing Packer — Integral Type (150–400 mm)
LB-150 Pipe size (Ø mm): 150 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 2.8 kg | Deflated length: 700 mm | Deflated diameter: 130 mm
LB-200 Pipe size (Ø mm): 200 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 3.6 kg | Deflated length: 700 mm | Deflated diameter: 160 mm
LB-250 Pipe size (Ø mm): 250 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 6 kg | Deflated length: 700 mm | Deflated diameter: 183 mm
LB-300 Pipe size (Ø mm): 300 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 6.4 kg | Deflated length: 700 mm | Deflated diameter: 236 mm
LB-350 Pipe size (Ø mm): 350 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 7.6 kg | Deflated length: 700 mm | Deflated diameter: 287 mm
LB-400 Pipe size (Ø mm): 400 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 8.8 kg | Deflated length: 700 mm | Deflated diameter: 340 mm
Pipe Plugs & Test EquipmentDaewon Industrial
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Daewon Industrial Partial Joint Testing Packer — Integral Type (150–400 mm)

Brand Daewon Industrial·Pipe Plugs & Test Equipment

Available part numbers (6)

LB-150, LB-200, LB-250, LB-300, LB-350, LB-400

How to order

Send the Daewon Industrial part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Partial Joint Testing Packer — Integral Type (150–400 mm)
0 selected
RFQ List (0)
Product codeSpec
LB-150Pipe size (Ø mm): 150 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 2.8 kg | Deflated length: 700 mm | Deflated diameter: 130 mm
LB-200Pipe size (Ø mm): 200 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 3.6 kg | Deflated length: 700 mm | Deflated diameter: 160 mm
LB-250Pipe size (Ø mm): 250 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 6 kg | Deflated length: 700 mm | Deflated diameter: 183 mm
LB-300Pipe size (Ø mm): 300 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 6.4 kg | Deflated length: 700 mm | Deflated diameter: 236 mm
LB-350Pipe size (Ø mm): 350 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 7.6 kg | Deflated length: 700 mm | Deflated diameter: 287 mm
LB-400Pipe size (Ø mm): 400 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 8.8 kg | Deflated length: 700 mm | Deflated diameter: 340 mm
