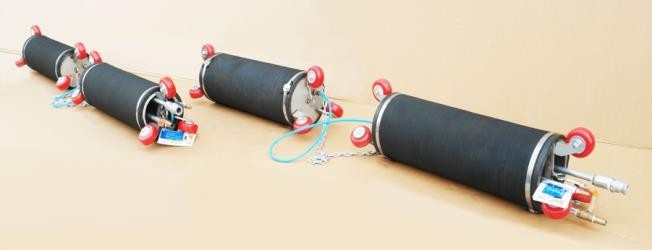

• Daewon Industrial Partial Joint Testing Packer — Separated Type (150–400 mm)
1 1

Daewon Industrial Partial Joint Testing Packer — Separated Type (150–400 mm)

Daewon Industrial Partial Joint Testing Packer — Separated Type (150–400 mm)

Separated (two-frame) packer set for water-tightness and pneumatic testing of joints in new or repaired sewer pipes.

Key features

  • Two frames per set

Specifications

Inflation pressure 2.0 kgf/cm²
Max back pressure 0.6 kgf/cm²
Max check pressure (water) 1.0 kgf/cm²
Length 700 x 2 / 500 x 2 mm
Partial Joint Testing Packer — Separated Type (150–400 mm)
SB-150 Pipe size (Ø mm): 150 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 4.0 kg | Deflated diameter: 130 mm | Length: 700 x 2 / 500 x 2 mm
SB-200 Pipe size (Ø mm): 200 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 6.2 kg | Deflated diameter: 160 mm | Length: 700 x 2 / 500 x 2 mm
SB-250 Pipe size (Ø mm): 250 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 8.0 kg | Deflated diameter: 183 mm | Length: 700 x 2 / 500 x 2 mm
SB-300 Pipe size (Ø mm): 300 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 9.8 kg | Deflated diameter: 236 mm | Length: 700 x 2 / 500 x 2 mm
SB-350 Pipe size (Ø mm): 350 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 12.0 kg | Deflated diameter: 287 mm | Length: 700 x 2 / 500 x 2 mm
SB-400 Pipe size (Ø mm): 400 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 15.0 kg | Deflated diameter: 340 mm | Length: 700 x 2 / 500 x 2 mm
Pipe Plugs & Test EquipmentDaewon Industrial
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Daewon Industrial Partial Joint Testing Packer — Separated Type (150–400 mm)

Brand Daewon Industrial·Pipe Plugs & Test Equipment

Available part numbers (6)

SB-150, SB-200, SB-250, SB-300, SB-350, SB-400

How to order

Send the Daewon Industrial part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Partial Joint Testing Packer — Separated Type (150–400 mm)
0 selected
RFQ List (0)
Product codeSpec
SB-150Pipe size (Ø mm): 150 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 4.0 kg | Deflated diameter: 130 mm | Length: 700 x 2 / 500 x 2 mm
SB-200Pipe size (Ø mm): 200 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 6.2 kg | Deflated diameter: 160 mm | Length: 700 x 2 / 500 x 2 mm
SB-250Pipe size (Ø mm): 250 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 8.0 kg | Deflated diameter: 183 mm | Length: 700 x 2 / 500 x 2 mm
SB-300Pipe size (Ø mm): 300 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 9.8 kg | Deflated diameter: 236 mm | Length: 700 x 2 / 500 x 2 mm
SB-350Pipe size (Ø mm): 350 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 12.0 kg | Deflated diameter: 287 mm | Length: 700 x 2 / 500 x 2 mm
SB-400Pipe size (Ø mm): 400 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Max check pressure (water): 1.0 kgf/cm² | Weight: 15.0 kg | Deflated diameter: 340 mm | Length: 700 x 2 / 500 x 2 mm

Need a different model, or a part not listed here? Send us your parts list →
