Daewon Industrial Rubber Connection Sheet (Protection Cap) for Manhole Inlet Pipes

Daewon Industrial Rubber Connection Sheet (Protection Cap) for Manhole Inlet Pipes

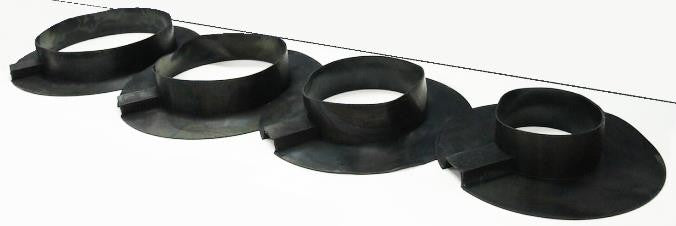

Rubber protection cap bonded into the manhole opening for a simple manhole-to-pipe connection.

Key features

  • Non-woven fabric on the inner face: peel, fix, and fill with non-shrink mortar to complete the joint
  • Dimensions A–C in mm

Specifications

C 80 mm
Rubber Connection Sheet (Protection Cap) for Manhole Inlet Pipes
Protection Cap 150 Nominal size (Ø): 150 | Pipe range: 190-200 mm | Borehole: 275 mm | A: 390 mm | B: 185 mm | C: 80 mm
Protection Cap 200 Nominal size (Ø): 200 | Pipe range: 220-240 mm | Borehole: 340 mm | A: 440 mm | B: 250 mm | C: 80 mm
Protection Cap 250 Nominal size (Ø): 250 | Pipe range: 280-305 mm | Borehole: 400 mm | A: 520 mm | B: 320 mm | C: 80 mm
Protection Cap 300 Nominal size (Ø): 300 | Pipe range: 350-370 mm | Borehole: 460 mm | A: 520 mm | B: 370 mm | C: 80 mm
Pipe Plugs & Test EquipmentDaewon Industrial
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Daewon Industrial Rubber Connection Sheet (Protection Cap) for Manhole Inlet Pipes

Brand Daewon Industrial·Pipe Plugs & Test Equipment

Available part numbers (4)

Protection Cap 150, Protection Cap 200, Protection Cap 250, Protection Cap 300

How to order

Send the Daewon Industrial part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Rubber Connection Sheet (Protection Cap) for Manhole Inlet Pipes
0 selected
RFQ List (0)
Product codeSpec
Protection Cap 150Nominal size (Ø): 150 | Pipe range: 190-200 mm | Borehole: 275 mm | A: 390 mm | B: 185 mm | C: 80 mm
Protection Cap 200Nominal size (Ø): 200 | Pipe range: 220-240 mm | Borehole: 340 mm | A: 440 mm | B: 250 mm | C: 80 mm
Protection Cap 250Nominal size (Ø): 250 | Pipe range: 280-305 mm | Borehole: 400 mm | A: 520 mm | B: 320 mm | C: 80 mm
Protection Cap 300Nominal size (Ø): 300 | Pipe range: 350-370 mm | Borehole: 460 mm | A: 520 mm | B: 370 mm | C: 80 mm
