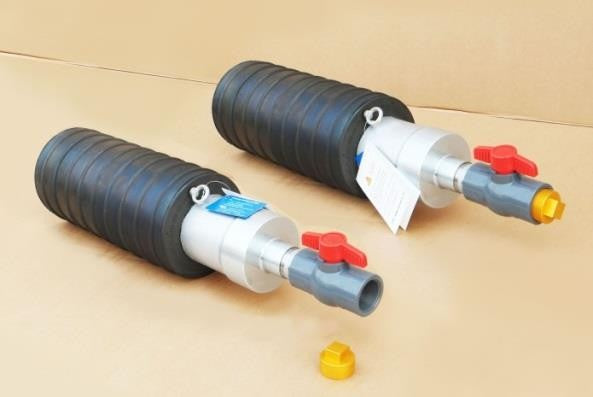

Daewon Industrial Small By-Pass Type Pipe Plug (100–350 mm)

Daewon Industrial Small By-Pass Type Pipe Plug (100–350 mm)

Compact water-diverting pipe plug for repairing damaged pipe between manholes: block both ends and divert flow through the by-pass, or block one pipe and pump from it.

Key features

  • Widely used for small-pipeline repair in congested areas
  • Length includes eye-bolt

Specifications

Inflation pressure 2.0 kgf/cm²
Max back pressure 0.6 kgf/cm²
Small By-Pass Type Pipe Plug (100–350 mm)
808-014 Pipe size (Ø mm): 100 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 0.5 kg | Deflated length: 150 mm | Deflated diameter: 81 mm | By-pass pipe: 10A(3/8)
808-016 Pipe size (Ø mm): 150 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 1.3 kg | Deflated length: 215 mm | Deflated diameter: 132 mm | By-pass pipe: 32A(1 ¼)
808-018 Pipe size (Ø mm): 200 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 1.9 kg | Deflated length: 260 mm | Deflated diameter: 170 mm | By-pass pipe: 50A(2)
808-128 Pipe size (Ø mm): 250 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 3.8 kg | Deflated length: 330 mm | Deflated diameter: 210 mm | By-pass pipe: 50A(2)
808-130 Pipe size (Ø mm): 300 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 6.2 kg | Deflated length: 380 mm | Deflated diameter: 260 mm | By-pass pipe: 50A(2)
808-135 Pipe size (Ø mm): 350 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 10 kg | Deflated length: 520 mm | Deflated diameter: 335 mm | By-pass pipe: 50A(2)
808-225 Pipe size (Ø mm): 200-300 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 8 kg | Deflated length: 520 mm | Deflated diameter: 170 mm | By-pass pipe: 100A(4)
Pipe Plugs & Test EquipmentDaewon Industrial
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Daewon Industrial Small By-Pass Type Pipe Plug (100–350 mm)

Brand Daewon Industrial·Pipe Plugs & Test Equipment

Available part numbers (7)

808-014, 808-016, 808-018, 808-128, 808-130, 808-135, 808-225

How to order

Send the Daewon Industrial part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Small By-Pass Type Pipe Plug (100–350 mm)
0 selected
RFQ List (0)
Product codeSpec
808-014Pipe size (Ø mm): 100 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 0.5 kg | Deflated length: 150 mm | Deflated diameter: 81 mm | By-pass pipe: 10A(3/8)
808-016Pipe size (Ø mm): 150 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 1.3 kg | Deflated length: 215 mm | Deflated diameter: 132 mm | By-pass pipe: 32A(1 ¼)
808-018Pipe size (Ø mm): 200 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 1.9 kg | Deflated length: 260 mm | Deflated diameter: 170 mm | By-pass pipe: 50A(2)
808-128Pipe size (Ø mm): 250 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 3.8 kg | Deflated length: 330 mm | Deflated diameter: 210 mm | By-pass pipe: 50A(2)
808-130Pipe size (Ø mm): 300 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 6.2 kg | Deflated length: 380 mm | Deflated diameter: 260 mm | By-pass pipe: 50A(2)
808-135Pipe size (Ø mm): 350 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 10 kg | Deflated length: 520 mm | Deflated diameter: 335 mm | By-pass pipe: 50A(2)
808-225Pipe size (Ø mm): 200-300 | Inflation pressure: 2.0 kgf/cm² | Max back pressure: 0.6 kgf/cm² | Weight: 8 kg | Deflated length: 520 mm | Deflated diameter: 170 mm | By-pass pipe: 100A(4)
