Dongil Engineering WS-601 Backup Tape

Dongil Engineering WS-601 Backup Tape

Dongil Engineering WS-601 Backup Tape is a welding consumable designed to support and protect the weld root during joint formation, sourced direct from Korea.

Key features

  • Backup tape is commonly used in single-sided welding applications where access to the reverse side of the joint is limited, helping fabricators achieve clean, consistent root passes on sheet metal and plate assemblies

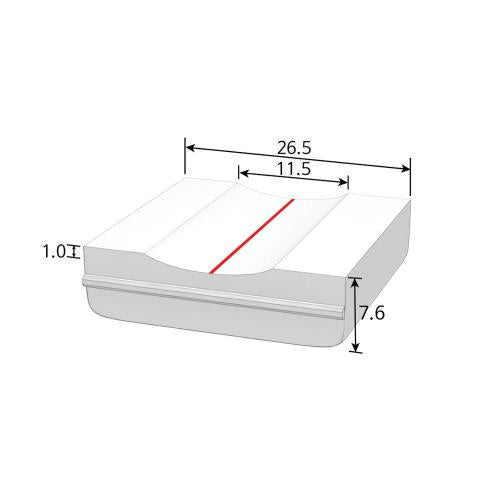

760-2223 MPN: WS-601 | WS-601 | Spec: 26.5x11.5x7.6 | Use: Standard Product for Shipbuilding/Steel Structure/Water/Marine Applications (Compatible with CBM8061 and Cretos CT2712)
760-2232 MPN: WS-601B | WS-601B | Spec: 26.2x8x7.8 | Use: Applicable to welding with root gap of 6mm or less or thin plate welding of base metal specification 12mm or less (Compatible with CBM8062 and Cretos CT2709)
760-2241 MPN: WS-602 | WS-602 | Spec: 26.5x7.6 | Use: Ceramic Flat Type without Groove, Back Bead not required for Upper Section (Compatible with CBM8065 and Kratos CT27F)
760-2250 MPN: WS-602W | WS-602W | Spec: 40x8.2 | Use: Wide Gap buildup application product (compatible with CBM8065W and Kratos CT42F)
760-2269 MPN: WS-604A | WS-604A | Spec: 31.6x8x8 | Use: Applied to upper chamfer ring due to base metal thickness difference (Square 19°) (Compatible with CBM8066)
760-2278 MPN: WS-605 | WS-605 | Spec: 25.5x2x8 | Use: Beam/Iron Structure Water Box/Plant Fillet Welding Application (Compatible with CBM8071 and Kratos CT27090)
760-2287 MPN: WS-607B | WS-607B | Spec: 42°/55°/83° | Use: For X/K improvement application, select 42°/55°/83° according to improvement angle (Compatible with CBM8064)
760-2296 MPN: WS-606 | WS-606 Circular 7MM | Spec: 7Φ | Use: Applicable for Thick Plate Iron Structure Water/High Pressure Machine/Pipe Fabrication (Compatible with CBM8063 and CT07/10/12R)
760-2302 MPN: WS-606 | WS-606 Round 10MM | Spec: 10Φ | Use: Applicable for Iron Structure, Water/High Pressure Equipment, and Pipe Fabrication of Thick Plate (Compatible with CBM8063 and CT07/10/12R)
760-2311 MPN: WS-606 | WS-606 Circular 12MM | Spec: 12Φ | Use: Applied to Iron Structure Water/High Pressure Equipment/Pipe Fabrication (Compatible with CBM8063 and CT07/10/12R)
760-2339 MPN: WS-611 | WS-611 | Spec: 36.7x18x8.8 | Use: Applied to Root Gap 10~20mm Large Gap (Compatible with CBM8070)
760-2348 MPN: WS-612 | WS-612 150R | Spec: 25x11.1x8.2 | Use: Ship Passageway Hatchway/Hatch cover - Select per specification (Compatible with CBM8067)
760-2357 MPN: WS-612 | WS-612 200R | Spec: 25x11.1x8.2 | Use: Marine Passageway Hatchway/Hatch cover - select according to specification (Compatible with CBM8067)
Backup TapeDongil Engineering
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongil Engineering WS-601 Backup Tape

Brand Dongil Engineering·Backup Tape

Available part numbers (13)

760-2223, 760-2232, 760-2241, 760-2250, 760-2269, 760-2278, 760-2287, 760-2296, 760-2302, 760-2311 + 3 more — see full table ↓

How to order

Send the Dongil Engineering part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
760-2223MPN: WS-601 | WS-601 | Spec: 26.5x11.5x7.6 | Use: Standard Product for Shipbuilding/Steel Structure/Water/Marine Applications (Compatible with CBM8061 and Cretos CT2712)
760-2232MPN: WS-601B | WS-601B | Spec: 26.2x8x7.8 | Use: Applicable to welding with root gap of 6mm or less or thin plate welding of base metal specification 12mm or less (Compatible with CBM8062 and Cretos CT2709)
760-2241MPN: WS-602 | WS-602 | Spec: 26.5x7.6 | Use: Ceramic Flat Type without Groove, Back Bead not required for Upper Section (Compatible with CBM8065 and Kratos CT27F)
760-2250MPN: WS-602W | WS-602W | Spec: 40x8.2 | Use: Wide Gap buildup application product (compatible with CBM8065W and Kratos CT42F)
760-2269MPN: WS-604A | WS-604A | Spec: 31.6x8x8 | Use: Applied to upper chamfer ring due to base metal thickness difference (Square 19°) (Compatible with CBM8066)
760-2278MPN: WS-605 | WS-605 | Spec: 25.5x2x8 | Use: Beam/Iron Structure Water Box/Plant Fillet Welding Application (Compatible with CBM8071 and Kratos CT27090)
760-2287MPN: WS-607B | WS-607B | Spec: 42°/55°/83° | Use: For X/K improvement application, select 42°/55°/83° according to improvement angle (Compatible with CBM8064)
760-2296MPN: WS-606 | WS-606 Circular 7MM | Spec: 7Φ | Use: Applicable for Thick Plate Iron Structure Water/High Pressure Machine/Pipe Fabrication (Compatible with CBM8063 and CT07/10/12R)
760-2302MPN: WS-606 | WS-606 Round 10MM | Spec: 10Φ | Use: Applicable for Iron Structure, Water/High Pressure Equipment, and Pipe Fabrication of Thick Plate (Compatible with CBM8063 and CT07/10/12R)
760-2311MPN: WS-606 | WS-606 Circular 12MM | Spec: 12Φ | Use: Applied to Iron Structure Water/High Pressure Equipment/Pipe Fabrication (Compatible with CBM8063 and CT07/10/12R)
760-2339MPN: WS-611 | WS-611 | Spec: 36.7x18x8.8 | Use: Applied to Root Gap 10~20mm Large Gap (Compatible with CBM8070)
760-2348MPN: WS-612 | WS-612 150R | Spec: 25x11.1x8.2 | Use: Ship Passageway Hatchway/Hatch cover - Select per specification (Compatible with CBM8067)
760-2357MPN: WS-612 | WS-612 200R | Spec: 25x11.1x8.2 | Use: Marine Passageway Hatchway/Hatch cover - select according to specification (Compatible with CBM8067)
