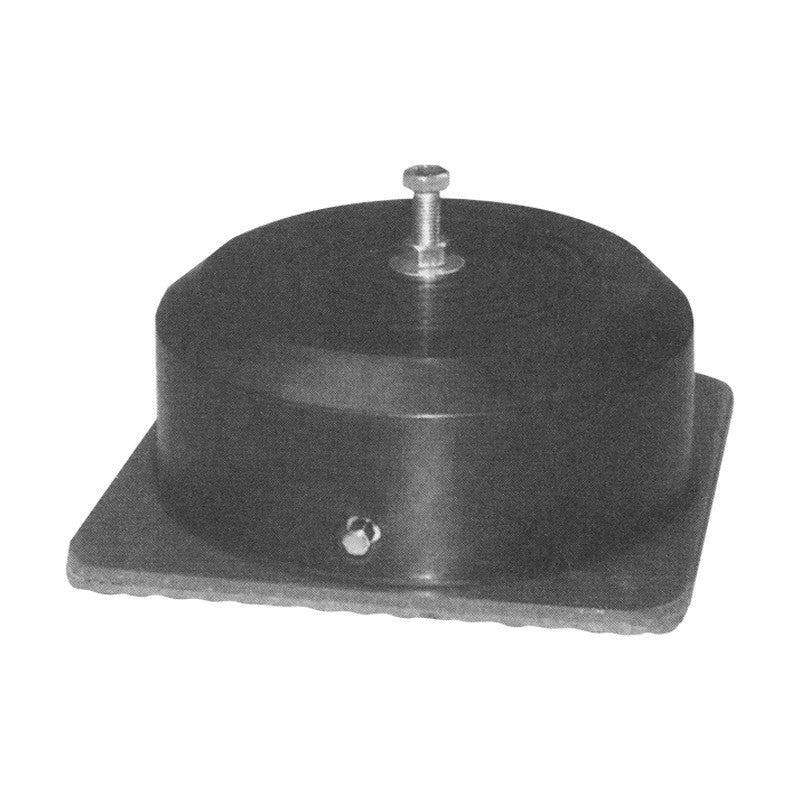

ENIDINE AMC Series Air Mount with Viscous Damper

ENIDINE AMC Series Air Mount with Viscous Damper

Round air mounts with built-in viscous damper and M16 x 110 mounting bolt for heavy machinery isolation.

Key features

  • Viscous damper limits motion at resonance
  • Air valve for pressure adjustment

Specifications

Resilient element Neoprene
Metal structure Structural steel
Operating temperature -10 to 60 C (15 to 140 F)
Inflation pressure 1-7 bar
AMC-25 Load range: 1400-2500 lbs | A (square): 9.84 in | B: 7.87 in | Bolt: M16x110
AMC-45 Load range: 2400-4500 lbs | A (square): 13.78 in | B: 11.81 in | Bolt: M16x110
Vibration IsolatorsENIDINE
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENIDINE AMC Series Air Mount with Viscous Damper

Brand ENIDINE·Vibration Isolators

Available part numbers (2)

AMC-25, AMC-45

How to order

Send the ENIDINE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AMC-25Load range: 1400-2500 lbs | A (square): 9.84 in | B: 7.87 in | Bolt: M16x110
AMC-45Load range: 2400-4500 lbs | A (square): 13.78 in | B: 11.81 in | Bolt: M16x110
