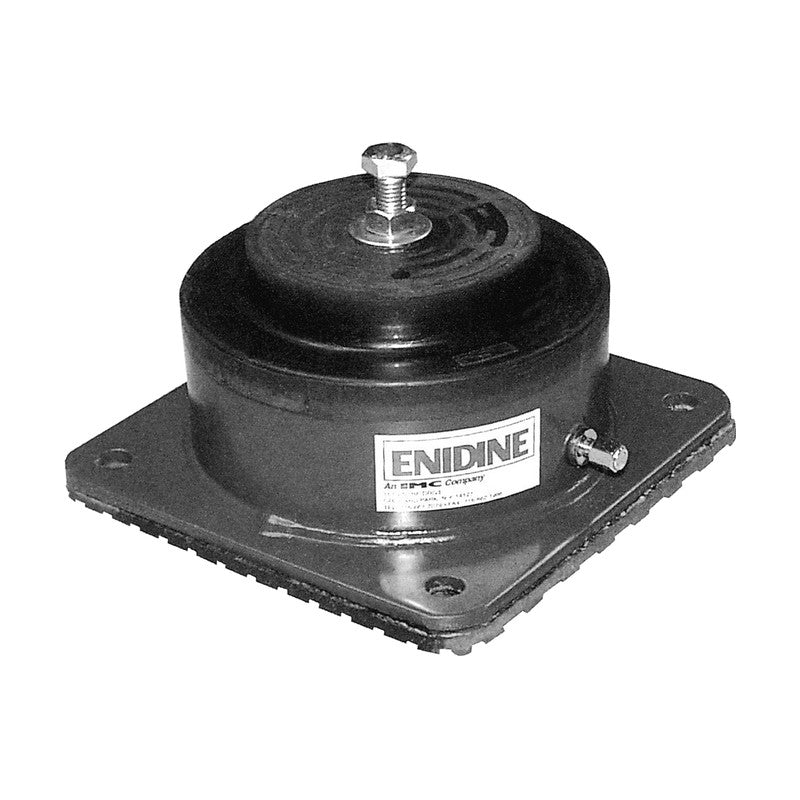

ENIDINE EMA Series Air Mount

ENIDINE EMA Series Air Mount

Inflatable neoprene air mounts with low natural frequency (2-3 Hz) for isolating CMMs, air compressors, presses and precision machines.

Key features

  • Air-inflated (1-7 bar) vibration isolation mount
  • Low natural frequency of 2-3 Hz isolates both low and high frequency vibration
  • Load range 50-4000 kg across the series

Specifications

Resilient element Neoprene
Metal structure Structural steel
Operating temperature -10 to 60 C (15 to 140 F)
Inflation pressure 1-7 bar
ENIDINE EMA Series Air Mount
EMA-2 Load range: 100-200 lbs | Base A: 4.92 in | Bolt: M10x40 | Weight: 4.2 lbs
EMA-4 Load range: 200-400 lbs | Base A: 4.92 in | Bolt: M12x50 | Weight: 4.4 lbs
EMA-8 Load range: 400-800 lbs | Base A: 6.30 in | Bolt: M12x50 | Weight: 7.7 lbs
EMA-15 Load range: 800-1500 lbs | Base A: 7.87 in | Bolt: M12x50 | Weight: 11.7 lbs
EMA-25 Load range: 1400-2500 lbs | Base A: 9.84 in | Bolt: M16x60 | Weight: 15.4 lbs
EMA-45 Load range: 2400-4500 lbs | Base A: 13.78 in | Bolt: M16x60 | Weight: 34.2 lbs
EMA-75 Load range: 4000-7500 lbs | Base A: 17.72 in | Bolt: M16x60 | Weight: 83.3 lbs
Vibration IsolatorsENIDINE
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENIDINE EMA Series Air Mount

Brand ENIDINE·Vibration Isolators

Available part numbers (7)

EMA-2, EMA-4, EMA-8, EMA-15, EMA-25, EMA-45, EMA-75

How to order

Send the ENIDINE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
ENIDINE EMA Series Air Mount
0 selected
RFQ List (0)
Product codeSpec
EMA-2Load range: 100-200 lbs | Base A: 4.92 in | Bolt: M10x40 | Weight: 4.2 lbs
EMA-4Load range: 200-400 lbs | Base A: 4.92 in | Bolt: M12x50 | Weight: 4.4 lbs
EMA-8Load range: 400-800 lbs | Base A: 6.30 in | Bolt: M12x50 | Weight: 7.7 lbs
EMA-15Load range: 800-1500 lbs | Base A: 7.87 in | Bolt: M12x50 | Weight: 11.7 lbs
EMA-25Load range: 1400-2500 lbs | Base A: 9.84 in | Bolt: M16x60 | Weight: 15.4 lbs
EMA-45Load range: 2400-4500 lbs | Base A: 13.78 in | Bolt: M16x60 | Weight: 34.2 lbs
EMA-75Load range: 4000-7500 lbs | Base A: 17.72 in | Bolt: M16x60 | Weight: 83.3 lbs
