ENIDINE CR Series Compact Wire Rope Isolator
ENIDINE CR Series Compact Wire Rope Isolator

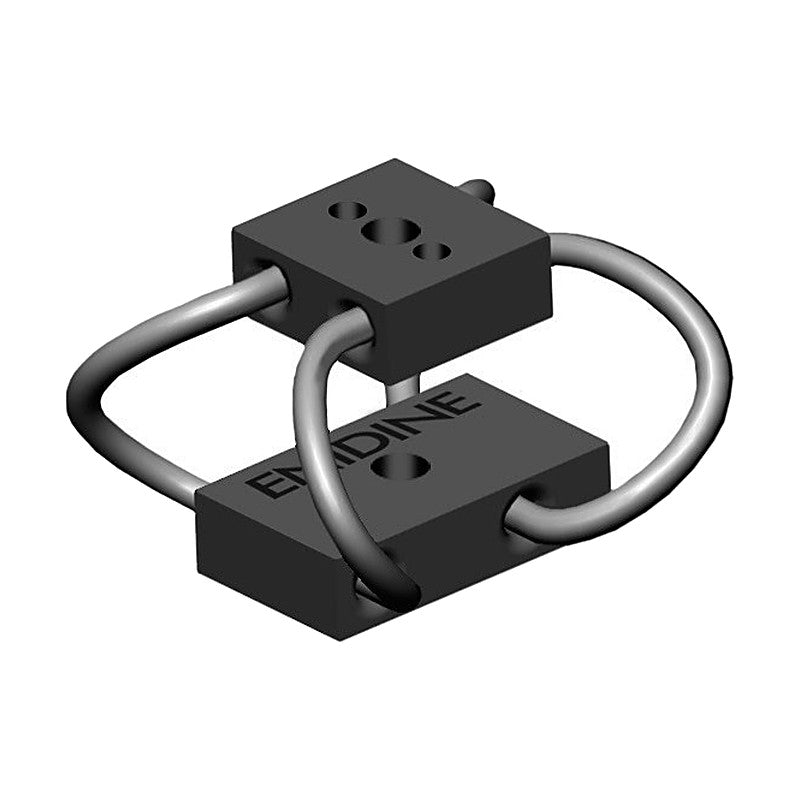

Compact wire rope isolators (CR1 to CR6) for protecting small electronics, disk drives and instruments from shock and vibration.
Key features
- Compact stranded stainless-steel wire rope design
- Mounting options A, B, C, D, E, S
- Max. recommended torque for tapped aluminium bar 1.2 Nm (CR1)
- Operating temperature -100 to 260 C
Specifications
| Wire rope | Stranded 300-series stainless steel |
|---|---|
| Mount bars | 6061-T6 aluminium (anodized or stainless optional) |
| Operating temperature | -100 to 260 C |
| CR1-100 | Height H: 17 mm | Width W: 19 mm | Max. static load (compression): 3.3 N | Max. deflection (compression): 6.4 mm | Kv / Ks (compression): 3.9 / 1.9 kN/m | Mounting thread: #4-40 UNC (M3x0.5) | Unit weight: 3.1 g | |
| CR1-200 | Height H: 19 mm | Width W: 20 mm | Max. static load (compression): 2.4 N | Max. deflection (compression): 8.4 mm | Kv / Ks (compression): 2.8 / 1.2 kN/m | Mounting thread: #4-40 UNC (M3x0.5) | Unit weight: 3.1 g | |
| CR1-300 | Height H: 23 mm | Width W: 23 mm | Max. static load (compression): 1.8 N | Max. deflection (compression): 11.9 mm | Kv / Ks (compression): 1.75 / 0.61 kN/m | Mounting thread: #4-40 UNC (M3x0.5) | Unit weight: 3.4 g | |
| CR1-400 | Height H: 26 mm | Width W: 26 mm | Max. static load (compression): 1.3 N | Max. deflection (compression): 15.0 mm | Kv / Ks (compression): 1.31 / 0.39 kN/m | Mounting thread: #4-40 UNC (M3x0.5) | Unit weight: 3.4 g | |
| CR2-100 | Height H: 16 mm | Width W: 20 mm | Max. static load (compression): 12 N | Max. deflection (compression): 5.8 mm | Kv / Ks (compression): 11 / 6.1 kN/m | Mounting thread: #4-40 UNC (M3x0.5) | Unit weight: 3.7 g | |
| CR2-200 | Height H: 19 mm | Width W: 21 mm | Max. static load (compression): 9.3 N | Max. deflection (compression): 8.4 mm | Kv / Ks (compression): 8.8 / 4.0 kN/m | Mounting thread: #4-40 UNC (M3x0.5) | Unit weight: 4.0 g | |
| CR2-300 | Height H: 23 mm | Width W: 24 mm | Max. static load (compression): 6.7 N | Max. deflection (compression): 11.7 mm | Kv / Ks (compression): 5.3 / 1.9 kN/m | Mounting thread: #4-40 UNC (M3x0.5) | Unit weight: 4.3 g | |
| CR2-400 | Height H: 27 mm | Width W: 27 mm | Max. static load (compression): 4.9 N | Max. deflection (compression): 15.7 mm | Kv / Ks (compression): 3.5 / 1.2 kN/m | Mounting thread: #4-40 UNC (M3x0.5) | Unit weight: 4.5 g | |
| CR3-100 | Height H: 19 mm | Width W: 22 mm | Max. static load (compression): 29 N | Max. deflection (compression): 7.1 mm | Kv / Ks (compression): 24 / 12 kN/m | Mounting thread: #4-40 UNC (M3x0.5) | Unit weight: 5.7 g | |
| CR3-200 | Height H: 23 mm | Width W: 24 mm | Max. static load (compression): 22 N | Max. deflection (compression): 10.4 mm | Kv / Ks (compression): 12 / 6.1 kN/m | Mounting thread: #4-40 UNC (M3x0.5) | Unit weight: 6.2 g | |
| CR3-300 | Height H: 27 mm | Width W: 27 mm | Max. static load (compression): 18 N | Max. deflection (compression): 14.2 mm | Kv / Ks (compression): 8.4 / 3.5 kN/m | Mounting thread: #4-40 UNC (M3x0.5) | Unit weight: 6.8 g | |
| CR3-400 | Height H: 33 mm | Width W: 30 mm | Max. static load (compression): 11 N | Max. deflection (compression): 19.3 mm | Kv / Ks (compression): 5.8 / 1.9 kN/m | Mounting thread: #4-40 UNC (M3x0.5) | Unit weight: 7.4 g | |
| CR4-100 | Height H: 42 mm | Width W: 47 mm | Max. static load (compression): 24 N | Max. deflection (compression): 19.6 mm | Kv / Ks (compression): 12 / 5.8 kN/m | Mounting thread: #10-32 UNF (M6x1.0) | Unit weight: 40 g | |
| CR4-200 | Height H: 53 mm | Width W: 54 mm | Max. static load (compression): 18 N | Max. deflection (compression): 29.7 mm | Kv / Ks (compression): 6.0 / 2.5 kN/m | Mounting thread: #10-32 UNF (M6x1.0) | Unit weight: 40 g | |
| CR4-300 | Height H: 60 mm | Width W: 59 mm | Max. static load (compression): 13 N | Max. deflection (compression): 35.8 mm | Kv / Ks (compression): 4.4 / 1.6 kN/m | Mounting thread: #10-32 UNF (M6x1.0) | Unit weight: 43 g | |
| CR4-400 | Height H: 75 mm | Width W: 68 mm | Max. static load (compression): 6.7 N | Max. deflection (compression): 49.3 mm | Kv / Ks (compression): 2.2 / 0.7 kN/m | Mounting thread: #10-32 UNF (M6x1.0) | Unit weight: 48 g | |
| CR5-100 | Height H: 41 mm | Width W: 48 mm | Max. static load (compression): 80 N | Max. deflection (compression): 19.6 mm | Kv / Ks (compression): 22 / 11 kN/m | Mounting thread: #10-32 UNF (M6x1.0) | Unit weight: 45 g | |
| CR5-200 | Height H: 53 mm | Width W: 54 mm | Max. static load (compression): 38 N | Max. deflection (compression): 28.7 mm | Kv / Ks (compression): 11 / 4.4 kN/m | Mounting thread: #10-32 UNF (M6x1.0) | Unit weight: 48 g | |
| CR5-300 | Height H: 60 mm | Width W: 59 mm | Max. static load (compression): 27 N | Max. deflection (compression): 34.8 mm | Kv / Ks (compression): 7.9 / 3.2 kN/m | Mounting thread: #10-32 UNF (M6x1.0) | Unit weight: 51 g | |
| CR5-400 | Height H: 76 mm | Width W: 67 mm | Max. static load (compression): 16 N | Max. deflection (compression): 49.3 mm | Kv / Ks (compression): 4.4 / 1.4 kN/m | Mounting thread: #10-32 UNF (M6x1.0) | Unit weight: 57 g | |
| CR6-100 | Height H: 47 mm | Width W: 54 mm | Max. static load (compression): 142 N | Max. deflection (compression): 22.1 mm | Kv / Ks (compression): 32 / 16 kN/m | Mounting thread: #10-32 UNF (M6x1.0) | Unit weight: 57 g | |
| CR6-200 | Height H: 55 mm | Width W: 59 mm | Max. static load (compression): 93 N | Max. deflection (compression): 29.5 mm | Kv / Ks (compression): 20 / 9.6 kN/m | Mounting thread: #10-32 UNF (M6x1.0) | Unit weight: 62 g | |
| CR6-300 | Height H: 64 mm | Width W: 64 mm | Max. static load (compression): 67 N | Max. deflection (compression): 37.6 mm | Kv / Ks (compression): 15 / 5.3 kN/m | Mounting thread: #10-32 UNF (M6x1.0) | Unit weight: 65 g | |
| CR6-400 | Height H: 79 mm | Width W: 73 mm | Max. static load (compression): 36 N | Max. deflection (compression): 51.6 mm | Kv / Ks (compression): 7.9 / 2.6 kN/m | Mounting thread: #10-32 UNF (M6x1.0) | Unit weight: 74 g |
