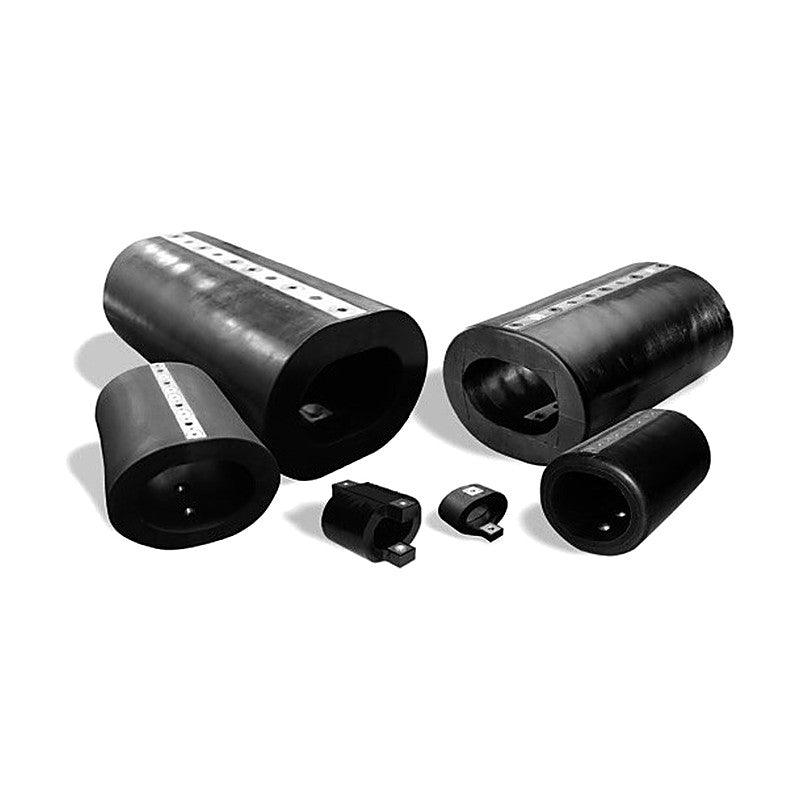

ENIDINE HR Series HERM High Energy Rope Mount
ENIDINE HR Series HERM High Energy Rope Mount
High Energy Rope Mounts (HERM) that combine wire rope isolation with high shock energy capacity for military and heavy industrial equipment.
Key features
- Wire rope construction for high shock energy absorption
- Meets environmental requirements of MIL-M-17185A (HR6)
- Sizes HR6 to HR40 with three stiffness ratings each
- Mount bar options: chem-film or anodized aluminium, passivated stainless steel
Specifications
| Operating temperature | -100 to 260 C |
|---|
| HR6-600 | Max. static load (compression): 107 N | Max. deflection (compression): 28.4 mm | Kv / Ks (compression): 38 / 25 kN/m | Mounting options: B, D, E, F | Mounting thread: #1/4-20 UNF (M6x1.0) | Unit weight: 0.2 kg | |
| HR6-400 | Max. static load (compression): 80 N | Max. deflection (compression): 28.4 mm | Kv / Ks (compression): 29 / 19 kN/m | Mounting options: B, D, E, F | Mounting thread: #1/4-20 UNF (M6x1.0) | Unit weight: 0.2 kg | |
| HR6-200 | Max. static load (compression): 62 N | Max. deflection (compression): 28.4 mm | Kv / Ks (compression): 23 / 15 kN/m | Mounting options: B, D, E, F | Mounting thread: #1/4-20 UNF (M6x1.0) | Unit weight: 0.2 kg | |
| HR12-600 | Max. static load (compression): 689 N | Max. deflection (compression): 38.1 mm | Kv / Ks (compression): 204 / 121 kN/m | Mounting options: B, D, E | Mounting thread: 5/16-18 UNC (M8x1.25) | Unit weight: 0.8 kg | |
| HR12-400 | Max. static load (compression): 512 N | Max. deflection (compression): 38.1 mm | Kv / Ks (compression): 151 / 89 kN/m | Mounting options: B, D, E | Mounting thread: 5/16-18 UNC (M8x1.25) | Unit weight: 0.8 kg | |
| HR12-200 | Max. static load (compression): 356 N | Max. deflection (compression): 38.1 mm | Kv / Ks (compression): 102 / 60 kN/m | Mounting options: B, D, E | Mounting thread: 5/16-18 UNC (M8x1.25) | Unit weight: 0.8 kg | |
| HR16-606 | Max. static load (compression): 1624 N | Max. deflection (compression): 88.9 mm | Kv / Ks (compression): 261 / 123 kN/m | Mounting options: B | Unit weight: 4.0 kg | |
| HR16-406 | Max. static load (compression): 1001 N | Max. deflection (compression): 88.9 mm | Kv / Ks (compression): 159 / 74 kN/m | Mounting options: B | Unit weight: 3.4 kg | |
| HR16-206 | Max. static load (compression): 556 N | Max. deflection (compression): 88.9 mm | Kv / Ks (compression): 91 / 43 kN/m | Mounting options: B | Unit weight: 2.7 kg | |
| HR16-600 | Max. static load (compression): 2424 N | Max. deflection (compression): 88.9 mm | Kv / Ks (compression): 389 / 181 kN/m | Mounting options: B | Unit weight: 4.8 kg | |
| HR16-400 | Max. static load (compression): 1379 N | Max. deflection (compression): 88.9 mm | Kv / Ks (compression): 221 / 103 kN/m | Mounting options: B | Unit weight: 4.1 kg | |
| HR16-200 | Max. static load (compression): 623 N | Max. deflection (compression): 88.9 mm | Kv / Ks (compression): 100 / 47 kN/m | Mounting options: B | Unit weight: 3.4 kg | |
| HR20-600 | Max. static load (compression): 3114 N | Max. deflection (compression): 101.6 mm | Kv / Ks (compression): 415 / 218 kN/m | Mounting options: B | Unit weight: 9.5 kg | |
| HR20-400 | Max. static load (compression): 1935 N | Max. deflection (compression): 101.6 mm | Kv / Ks (compression): 259 / 136 kN/m | Mounting options: B | Unit weight: 8.2 kg | |
| HR20-200 | Max. static load (compression): 734 N | Max. deflection (compression): 101.6 mm | Kv / Ks (compression): 99 / 52 kN/m | Mounting options: B | Unit weight: 6.4 kg | |
| HR28-600 | Max. static load (compression): 17790 N | Max. deflection (compression): 95.3 mm | Kv / Ks (compression): 2603 / 1266 kN/m | Mounting options: B | Unit weight: 23 kg | |
| HR28-400 | Max. static load (compression): 10560 N | Max. deflection (compression): 95.3 mm | Kv / Ks (compression): 1562 / 759 kN/m | Mounting options: B | Unit weight: 18 kg | |
| HR28-200 | Max. static load (compression): 3870 N | Max. deflection (compression): 95.3 mm | Kv / Ks (compression): 573 / 278 kN/m | Mounting options: B | Unit weight: 14 kg | |
| HR40-600 | Max. static load (compression): 23800 N | Max. deflection (compression): 120.7 mm | Kv / Ks (compression): 2793 / 1403 kN/m | Mounting options: B | Unit weight: 45 kg | |
| HR40-400 | Max. static load (compression): 12900 N | Max. deflection (compression): 120.7 mm | Kv / Ks (compression): 1513 / 760 kN/m | Mounting options: B | Unit weight: 38 kg | |
| HR40-200 | Max. static load (compression): 4560 N | Max. deflection (compression): 120.7 mm | Kv / Ks (compression): 535 / 269 kN/m | Mounting options: B | Unit weight: 30 kg |
