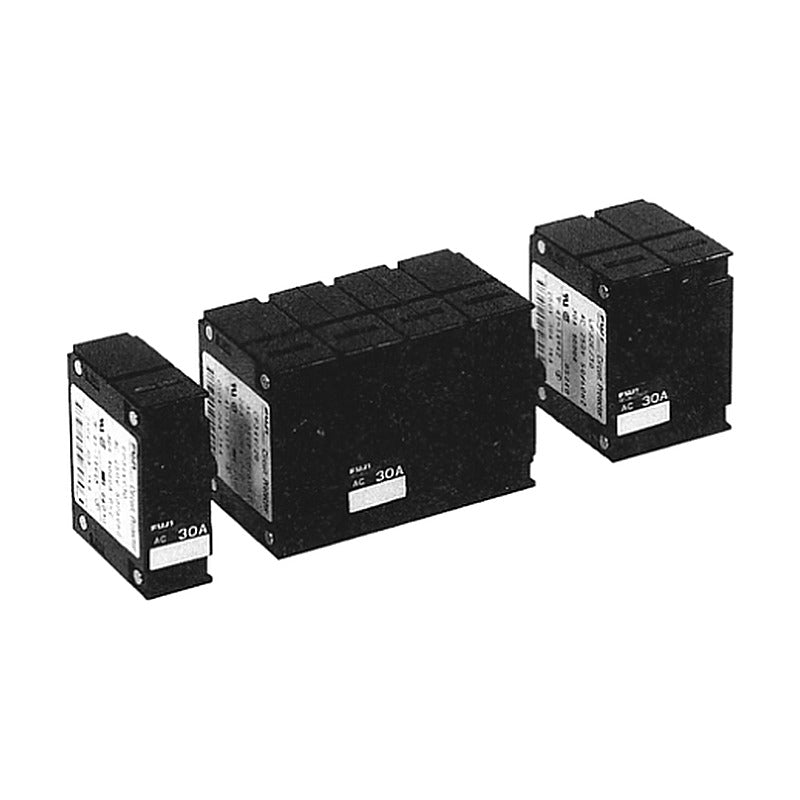

Fuji Electric CP-E / CP-V Series Circuit Protectors (1-4 Pole)

Fuji Electric CP-E / CP-V Series Circuit Protectors (1-4 Pole)

CP-E and CP-V series circuit protectors for OA and FA electronic equipment, 19 mm thick, 1 to 4 poles, with 0.05-30 A ratings.

Key features

  • UL, CSA and TUV approved; IEC insulation distances (catalogue)
  • Thin 19 mm design
  • Four trip characteristics, five internal circuits
  • 16 rated currents from 0.05 A to 30 A
  • Alarm/aux switch and inertia delay options; shock 100 G, vibration 10 G

Specifications

Frame 30 AF
Internal circuits Series, parallel, relay (current/voltage), switch, dual coil
Relay/dual-coil types CP-E only
Ordering Type + circuit + curve / current + options
Example CP31E2M/30WDDCN(AC200V)
Source Fuji Electric control devices catalogue (circuit protectors), p. 45-46
CP31E Series: CP-E (UL/CSA) | Poles: 1P | Rated current: 0.05-30 A (16 ratings)
CP32E Series: CP-E (UL/CSA) | Poles: 2P | Rated current: 0.05-30 A (16 ratings)
CP33E Series: CP-E (UL/CSA) | Poles: 3P | Rated current: 0.05-30 A (16 ratings)
CP34E Series: CP-E (UL/CSA) | Poles: 4P | Rated current: 0.05-30 A (16 ratings)
CP31V Series: CP-V (UL/CSA/IEC) | Poles: 1P | Rated current: 0.05-30 A (16 ratings)
CP32V Series: CP-V (UL/CSA/IEC) | Poles: 2P | Rated current: 0.05-30 A (16 ratings)
CP33V Series: CP-V (UL/CSA/IEC) | Poles: 3P | Rated current: 0.05-30 A (16 ratings)
CP34V Series: CP-V (UL/CSA/IEC) | Poles: 4P | Rated current: 0.05-30 A (16 ratings)
Circuit ProtectorsFuji Electric
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric CP-E / CP-V Series Circuit Protectors (1-4 Pole)

Brand Fuji Electric·Circuit Protectors

Available part numbers (8)

CP31E, CP32E, CP33E, CP34E, CP31V, CP32V, CP33V, CP34V

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CP31ESeries: CP-E (UL/CSA) | Poles: 1P | Rated current: 0.05-30 A (16 ratings)
CP32ESeries: CP-E (UL/CSA) | Poles: 2P | Rated current: 0.05-30 A (16 ratings)
CP33ESeries: CP-E (UL/CSA) | Poles: 3P | Rated current: 0.05-30 A (16 ratings)
CP34ESeries: CP-E (UL/CSA) | Poles: 4P | Rated current: 0.05-30 A (16 ratings)
CP31VSeries: CP-V (UL/CSA/IEC) | Poles: 1P | Rated current: 0.05-30 A (16 ratings)
CP32VSeries: CP-V (UL/CSA/IEC) | Poles: 2P | Rated current: 0.05-30 A (16 ratings)
CP33VSeries: CP-V (UL/CSA/IEC) | Poles: 3P | Rated current: 0.05-30 A (16 ratings)
CP34VSeries: CP-V (UL/CSA/IEC) | Poles: 4P | Rated current: 0.05-30 A (16 ratings)
