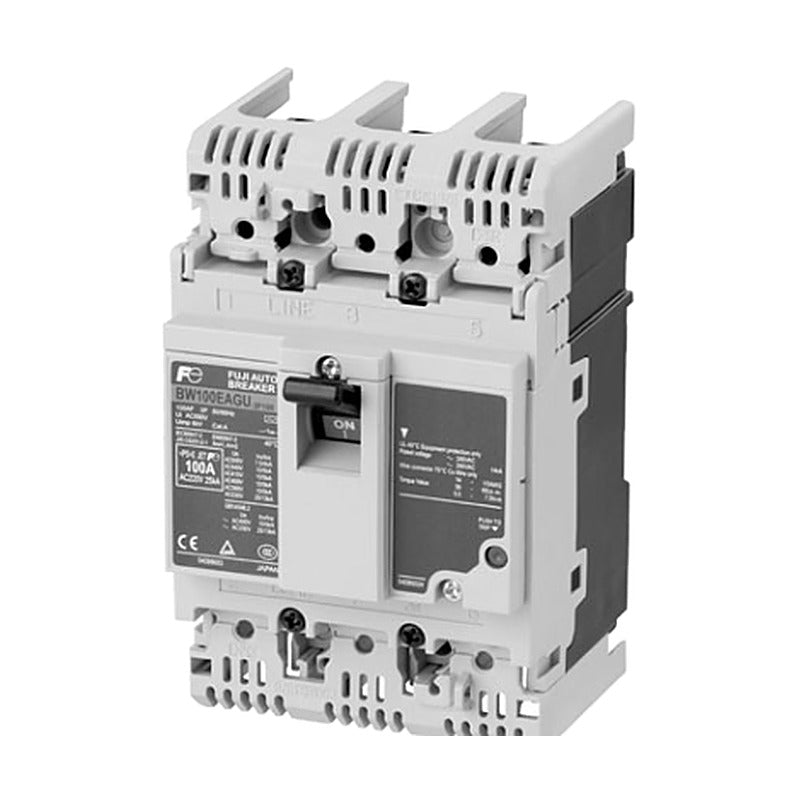

Fuji Electric G-TWIN BW Global MCCBs, UL 489 Listed (50-800AF)

Fuji Electric G-TWIN BW Global MCCBs, UL 489 Listed (50-800AF)

G-TWIN BW series Global-type (U suffix) molded case circuit breakers, UL 489 listed and also rated to IEC/JIS/EN/GB standards, for machines and panels exported worldwide.

Key features

  • UL 489 Listed and CAN/CSA C22.2 No.5 rated (catalogue)
  • Also rated to IEC 60947-2, JIS C 8201-2-1, EN 60947-2, GB 14048.2
  • Frames 50 to 800 AF
  • Terminal combination options (screw, flat bar, box terminals)
  • Shares accessories with the Standard G-TWIN range

Specifications

Series G-TWIN Global (U)
Standards UL 489, CAN/CSA C22.2 No.5, IEC 60947-2, JIS, EN, GB
Rated frequency 50-60 Hz
Ordering Specify poles, rated current and terminal combination
Frame range 50-800 AF
Source Fuji Electric G-TWIN MCCB/ELCB catalogue, p. 9-10, 20-25
BW50RAGU Frame: 50 AF | Icu 230/440V JIS: 25/10 kA | Poles: 2P, 3P | In: 3-50 A
BW100EAGU Frame: 100 AF | Icu 230/440V JIS: 25/10 kA | Poles: 2P, 3P | In: 60-100 A
BW125JAGU Frame: 125 AF | Icu 230/440V JIS: 50/30 kA | Poles: 2P, 3P | In: 15-125 A
BW125RAGU Frame: 125 AF | Icu 230/440V JIS: 100/50 kA | Poles: 2P, 3P | In: 15-125 A
BW250EAGU Frame: 250 AF | Icu 230/440V JIS: 36/18 kA | Poles: 2P, 3P | In: 125-250 A
BW250JAGU Frame: 250 AF | Icu 230/440V JIS: 50/30 kA | Poles: 2P, 3P | In: 125-250 A
BW250RAGU Frame: 250 AF | Icu 230/440V JIS: 100/50 kA | Poles: 2P, 3P | In: 125-250 A
BW400EAGU Frame: 400 AF | Icu 230/440V JIS: 50/30 kA | Poles: 2P, 3P | In: 250-400 A
BW400HAGU Frame: 400 AF | Icu 230/440V JIS: 125/70 kA | Poles: 2P, 3P | In: 250-400 A
BW400RAGU Frame: 400 AF | Icu 230/440V JIS: 100/50 kA | Poles: 2P, 3P | In: 250-400 A
BW400SAGU Frame: 400 AF | Icu 230/440V JIS: 85/36 kA | Poles: 2P, 3P | In: 250-400 A
BW630HAGU Frame: 630 AF | Icu 230/440V JIS: 125/70 kA | Poles: 3P | In: 500-630 A
BW630RAGU Frame: 630 AF | Icu 230/440V JIS: 100/50 kA | Poles: 3P | In: 500-630 A
BW800HAGU Frame: 800 AF | Icu 230/440V JIS: 125/70 kA | Poles: 3P | In: 700-800 A
BW800RAGU Frame: 800 AF | Icu 230/440V JIS: 100/50 kA | Poles: 3P | In: 700-800 A
Molded Case Circuit BreakersFuji Electric
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric G-TWIN BW Global MCCBs, UL 489 Listed (50-800AF)

Brand Fuji Electric·Molded Case Circuit Breakers

Available part numbers (15)

BW50RAGU, BW100EAGU, BW125JAGU, BW125RAGU, BW250EAGU, BW250JAGU, BW250RAGU, BW400EAGU, BW400HAGU, BW400RAGU + 5 more — see full table ↓

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BW50RAGUFrame: 50 AF | Icu 230/440V JIS: 25/10 kA | Poles: 2P, 3P | In: 3-50 A
BW100EAGUFrame: 100 AF | Icu 230/440V JIS: 25/10 kA | Poles: 2P, 3P | In: 60-100 A
BW125JAGUFrame: 125 AF | Icu 230/440V JIS: 50/30 kA | Poles: 2P, 3P | In: 15-125 A
BW125RAGUFrame: 125 AF | Icu 230/440V JIS: 100/50 kA | Poles: 2P, 3P | In: 15-125 A
BW250EAGUFrame: 250 AF | Icu 230/440V JIS: 36/18 kA | Poles: 2P, 3P | In: 125-250 A
BW250JAGUFrame: 250 AF | Icu 230/440V JIS: 50/30 kA | Poles: 2P, 3P | In: 125-250 A
BW250RAGUFrame: 250 AF | Icu 230/440V JIS: 100/50 kA | Poles: 2P, 3P | In: 125-250 A
BW400EAGUFrame: 400 AF | Icu 230/440V JIS: 50/30 kA | Poles: 2P, 3P | In: 250-400 A
BW400HAGUFrame: 400 AF | Icu 230/440V JIS: 125/70 kA | Poles: 2P, 3P | In: 250-400 A
BW400RAGUFrame: 400 AF | Icu 230/440V JIS: 100/50 kA | Poles: 2P, 3P | In: 250-400 A
BW400SAGUFrame: 400 AF | Icu 230/440V JIS: 85/36 kA | Poles: 2P, 3P | In: 250-400 A
BW630HAGUFrame: 630 AF | Icu 230/440V JIS: 125/70 kA | Poles: 3P | In: 500-630 A
BW630RAGUFrame: 630 AF | Icu 230/440V JIS: 100/50 kA | Poles: 3P | In: 500-630 A
BW800HAGUFrame: 800 AF | Icu 230/440V JIS: 125/70 kA | Poles: 3P | In: 700-800 A
BW800RAGUFrame: 800 AF | Icu 230/440V JIS: 100/50 kA | Poles: 3P | In: 700-800 A
