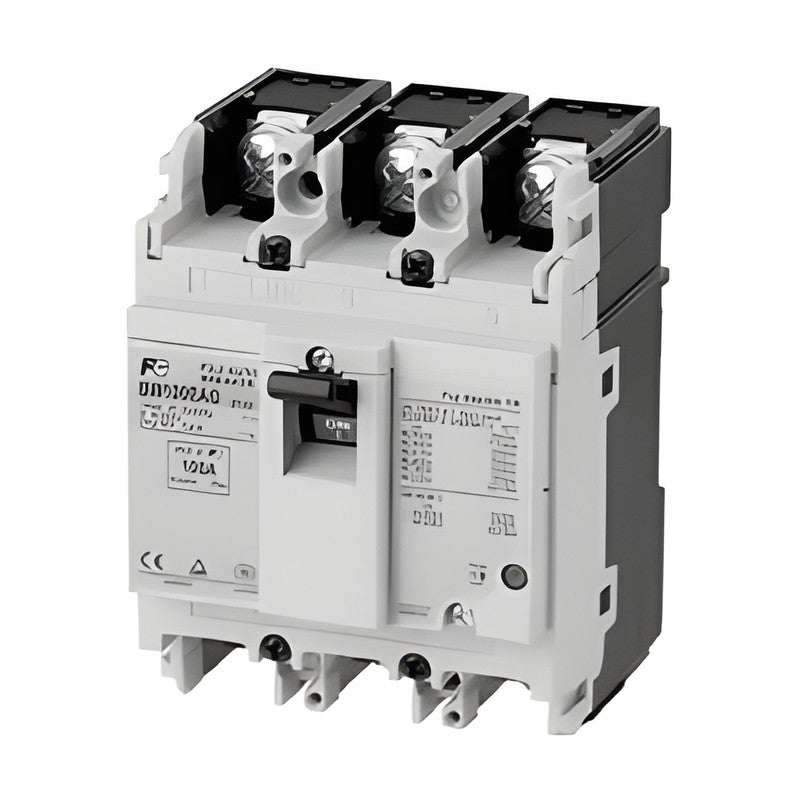

Fuji Electric G-TWIN BW Standard MCCBs (32-800AF)

Fuji Electric G-TWIN BW Standard MCCBs (32-800AF)

G-TWIN BW series general-purpose molded case circuit breakers (Standard type) from 32 AF to 800 AF, with instantaneous-fixed (G) and instantaneous-adjustable (A) versions in several breaking-capacity classes.

Key features

  • Frames 32, 50, 63, 100, 125, 250, 400, 630 and 800 AF
  • Breaking-capacity classes AA, EA, JA, SA, RA and HA
  • 2-, 3- and (selected frames) 4-pole versions
  • Common internal accessories (auxiliary/alarm switches, shunt and undervoltage trips)
  • Front, rear, flush and plug-in connection variants

Specifications

Series G-TWIN
Standards IEC 60947-2, JIS C 8201-2-1, EN 60947-2, GB 14048.2
Rated frequency 50-60 Hz
Mounting Front connection (standard), rear, flush, plug-in options
Frame range 32-800 AF
Ordering Specify poles and rated current (e.g. 3P 225 A)
Source Fuji Electric G-TWIN MCCB/ELCB catalogue, p. 9-10, 14-19
BW32AAG Frame: 32 AF | Icu 230/440V: 2.5/1.5 kA | Poles: 2P, 3P | In: 3-32 A | Instantaneous: fixed
BW32SAG Frame: 32 AF | Icu 230/440V: 5/2.5 kA | Poles: 2P, 3P | In: 3-32 A | Instantaneous: fixed
BW50AAG Frame: 50 AF | Icu 230/440V: 2.5/1.5 kA | Poles: 2P, 3P | In: 5-50 A | Instantaneous: fixed
BW50EAG Frame: 50 AF | Icu 230/440V: 5/2.5 kA | Poles: 2P, 3P | In: 5-50 A | Instantaneous: fixed
BW50HAG Frame: 50 AF | Icu 230/440V: 125/65 kA | Poles: 2P, 3P | In: 15-50 A | Instantaneous: fixed
BW50RAG Frame: 50 AF | Icu 230/440V: 25/10 kA | Poles: 2P, 3P | In: 10-50 A | Instantaneous: fixed
BW50SAG Frame: 50 AF | Icu 230/440V: 10/7.5 kA | Poles: 2P, 3P | In: 5-50 A | Instantaneous: fixed
BW63EAG Frame: 63 AF | Icu 230/440V: 5/2.5 kA | Poles: 2P, 3P | In: 60-63 A | Instantaneous: fixed
BW63RAG Frame: 63 AF | Icu 230/440V: 25/10 kA | Poles: 2P, 3P | In: 60-63 A | Instantaneous: fixed
BW63SAG Frame: 63 AF | Icu 230/440V: 10/7.5 kA | Poles: 2P, 3P | In: 60-63 A | Instantaneous: fixed
BW100AAG Frame: 100 AF | Icu 230/440V: 5/1.5 kA | Poles: 3P | In: 60-100 A | Instantaneous: fixed
BW100EAG Frame: 100 AF | Icu 230/440V: 25/10 kA | Poles: 2P, 3P | In: 50-100 A | Instantaneous: fixed
BW125HAG Frame: 125 AF | Icu 230/440V: 125/65 kA | Poles: 2P, 3P | In: 15-125 A | Instantaneous: fixed
BW125JAG Frame: 125 AF | Icu 230/440V: 50/30 kA | Poles: 2P, 3P, 4P | In: 15-125 A | Instantaneous: fixed
BW125RAG Frame: 125 AF | Icu 230/440V: 100/50 kA | Poles: 2P, 3P, 4P | In: 15-125 A | Instantaneous: fixed
BW250EAG Frame: 250 AF | Icu 230/440V: 36/18 kA | Poles: 2P, 3P | In: 125-250 A | Instantaneous: fixed
BW250HAG Frame: 250 AF | Icu 230/440V: 125/65 kA | Poles: 2P, 3P | In: 125-250 A | Instantaneous: fixed
BW250JAG Frame: 250 AF | Icu 230/440V: 50/30 kA | Poles: 2P, 3P, 4P | In: 125-250 A | Instantaneous: fixed
BW250RAG Frame: 250 AF | Icu 230/440V: 100/50 kA | Poles: 2P, 3P, 4P | In: 125-250 A | Instantaneous: fixed
BW400EAA Frame: 400 AF | Icu 230/440V: 50/30 kA | Poles: 2P, 3P | In: 250-400 A | Instantaneous: adjustable
BW400EAG Frame: 400 AF | Icu 230/440V: 50/30 kA | Poles: 2P, 3P | In: 250-400 A | Instantaneous: fixed
BW400HAA Frame: 400 AF | Icu 230/440V: 125/70 kA | Poles: 2P, 3P, 4P | In: 250-400 A | Instantaneous: adjustable
BW400HAG Frame: 400 AF | Icu 230/440V: 125/70 kA | Poles: 2P, 3P, 4P | In: 250-400 A | Instantaneous: fixed
BW400RAA Frame: 400 AF | Icu 230/440V: 100/50 kA | Poles: 2P, 3P, 4P | In: 250-400 A | Instantaneous: adjustable
BW400RAG Frame: 400 AF | Icu 230/440V: 100/50 kA | Poles: 2P, 3P, 4P | In: 250-400 A | Instantaneous: fixed
BW400SAA Frame: 400 AF | Icu 230/440V: 85/36 kA | Poles: 2P, 3P | In: 250-400 A | Instantaneous: adjustable
BW400SAG Frame: 400 AF | Icu 230/440V: 85/36 kA | Poles: 2P, 3P | In: 250-400 A | Instantaneous: fixed
BW630EAA Frame: 630 AF | Icu 230/440V: 50/36 kA | Poles: 3P | In: 500-630 A | Instantaneous: adjustable
BW630EAG Frame: 630 AF | Icu 230/440V: 50/36 kA | Poles: 3P | In: 500-630 A | Instantaneous: fixed
BW630HAA Frame: 630 AF | Icu 230/440V: 125/70 kA | Poles: 3P, 4P | In: 500-630 A | Instantaneous: adjustable
BW630HAG Frame: 630 AF | Icu 230/440V: 125/70 kA | Poles: 3P, 4P | In: 500-630 A | Instantaneous: fixed
BW630RAA Frame: 630 AF | Icu 230/440V: 100/50 kA | Poles: 3P, 4P | In: 500-630 A | Instantaneous: adjustable
BW630RAG Frame: 630 AF | Icu 230/440V: 100/50 kA | Poles: 3P, 4P | In: 500-630 A | Instantaneous: fixed
BW800EAA Frame: 800 AF | Icu 230/440V: 50/36 kA | Poles: 3P | In: 700-800 A | Instantaneous: adjustable
BW800EAG Frame: 800 AF | Icu 230/440V: 50/36 kA | Poles: 3P | In: 700-800 A | Instantaneous: fixed
BW800HAA Frame: 800 AF | Icu 230/440V: 125/70 kA | Poles: 3P, 4P | In: 700-800 A | Instantaneous: adjustable
BW800HAG Frame: 800 AF | Icu 230/440V: 125/70 kA | Poles: 3P, 4P | In: 700-800 A | Instantaneous: fixed
BW800RAA Frame: 800 AF | Icu 230/440V: 100/50 kA | Poles: 3P, 4P | In: 700-800 A | Instantaneous: adjustable
BW800RAG Frame: 800 AF | Icu 230/440V: 100/50 kA | Poles: 3P, 4P | In: 700-800 A | Instantaneous: fixed
