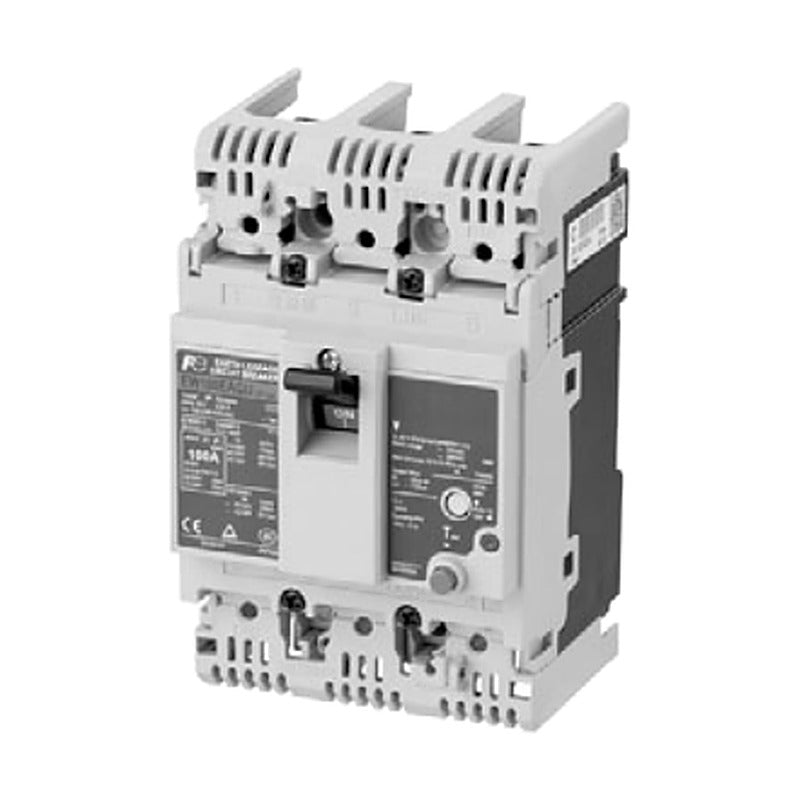

Fuji Electric G-TWIN EW Global ELCBs, UL 489 Listed (50-630AF)

Fuji Electric G-TWIN EW Global ELCBs, UL 489 Listed (50-630AF)

G-TWIN EW series Global-type (U suffix) earth leakage circuit breakers, UL 489 listed, for equipment exported to North America and other markets.

Key features

  • UL 489 Listed (catalogue)
  • Also rated to IEC/JIS/EN/GB standards
  • Frames 50 to 630 AF
  • Terminal combination options
  • Common accessories with BW/EW Standard

Specifications

Series G-TWIN Global (U)
Standards UL 489, CAN/CSA C22.2 No.5, IEC 60947-2, JIS, EN, GB
Rated frequency 50-60 Hz
Ordering Specify poles, rated current, sensitivity
Frame range 50-630 AF
Source Fuji Electric G-TWIN MCCB/ELCB catalogue, p. 9-10, 34-38
EW50RAGU Frame: 50 AF | Icu 230/440V JIS: 25/10 kA | In: 3-50 A
EW100EAGU Frame: 100 AF | Icu 230/440V JIS: 25/10 kA | In: 60-100 A
EW125JAGU Frame: 125 AF | Icu 230/440V JIS: 50/30 kA | In: 15-125 A
EW125RAGU Frame: 125 AF | Icu 230/440V JIS: 100/50 kA | In: 15-125 A
EW250JAGU Frame: 250 AF | Icu 230/440V JIS: 50/30 kA | In: 125-250 A
EW250RAGU Frame: 250 AF | Icu 230/440V JIS: 100/50 kA | In: 125-250 A
EW400HAGU Frame: 400 AF | Icu 230/440V JIS: 100/50 kA | In: 250-400 A
EW400RAGU Frame: 400 AF | Icu 230/440V JIS: 85/36 kA | In: 250-400 A
EW400SAGU Frame: 400 AF | Icu 230/440V JIS: 50/30 kA | In: 250-400 A
EW630RAGU Frame: 630 AF | Icu 230/440V JIS: 50/36 kA | In: 500-630 A
Earth Leakage Circuit BreakersFuji Electric
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric G-TWIN EW Global ELCBs, UL 489 Listed (50-630AF)

Brand Fuji Electric·Earth Leakage Circuit Breakers

Available part numbers (10)

EW50RAGU, EW100EAGU, EW125JAGU, EW125RAGU, EW250JAGU, EW250RAGU, EW400HAGU, EW400RAGU, EW400SAGU, EW630RAGU

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EW50RAGUFrame: 50 AF | Icu 230/440V JIS: 25/10 kA | In: 3-50 A
EW100EAGUFrame: 100 AF | Icu 230/440V JIS: 25/10 kA | In: 60-100 A
EW125JAGUFrame: 125 AF | Icu 230/440V JIS: 50/30 kA | In: 15-125 A
EW125RAGUFrame: 125 AF | Icu 230/440V JIS: 100/50 kA | In: 15-125 A
EW250JAGUFrame: 250 AF | Icu 230/440V JIS: 50/30 kA | In: 125-250 A
EW250RAGUFrame: 250 AF | Icu 230/440V JIS: 100/50 kA | In: 125-250 A
EW400HAGUFrame: 400 AF | Icu 230/440V JIS: 100/50 kA | In: 250-400 A
EW400RAGUFrame: 400 AF | Icu 230/440V JIS: 85/36 kA | In: 250-400 A
EW400SAGUFrame: 400 AF | Icu 230/440V JIS: 50/30 kA | In: 250-400 A
EW630RAGUFrame: 630 AF | Icu 230/440V JIS: 50/36 kA | In: 500-630 A
