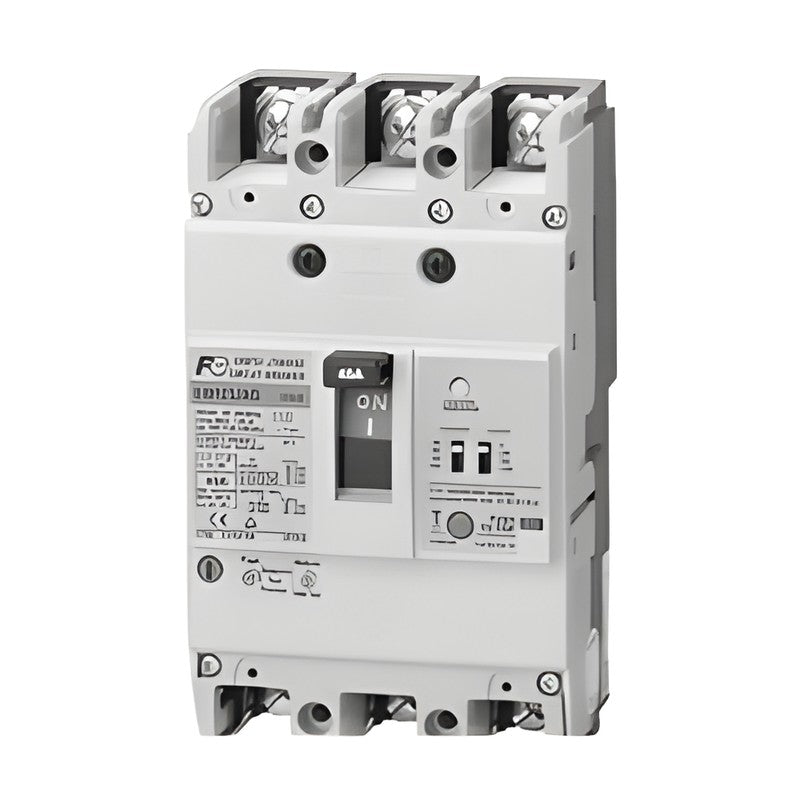

Fuji Electric G-TWIN EW Special-Purpose ELCBs

Fuji Electric G-TWIN EW Special-Purpose ELCBs

Special-application G-TWIN EW earth leakage breakers from the catalogue model table: single-phase 3-wire neutral open-phase protection (N) and resistance-welder (W) types.

Key features

  • N: single-phase 3-wire neutral open-phase protection
  • W: for resistance welder circuits
  • Same footprint as standard EW breakers
  • Frames 50 to 400 AF

Specifications

Series G-TWIN
Ordering Specify poles, rated current, sensitivity
Frame range 50-400 AF
N-type Icu basis AC100/200V
Sensitivity Specify when ordering
Source Fuji Electric G-TWIN MCCB/ELCB catalogue, p. 9-10
EW50EAN Frame: 50 AF | Icu: 5 kA at AC100/200V | Function: 1-ph 3-wire neutral open-phase prot.
EW100EAN Frame: 100 AF | Icu: 25 kA at AC100/200V | Function: 1-ph 3-wire neutral open-phase prot.
EW250EAN Frame: 250 AF | Icu: 35 kA at AC100/200V | Function: 1-ph 3-wire neutral open-phase prot.
EW250RAW Frame: 250 AF | Icu: 100/50 kA | Function: Resistance welder circuits
EW400EAN Frame: 400 AF | Icu: 50 kA at AC100/200V | Function: 1-ph 3-wire neutral open-phase prot.
EW400RAW Frame: 400 AF | Icu: 85/36 kA | Function: Resistance welder circuits
Earth Leakage Circuit BreakersFuji Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric G-TWIN EW Special-Purpose ELCBs

Brand Fuji Electric·Earth Leakage Circuit Breakers

Available part numbers (6)

EW50EAN, EW100EAN, EW250EAN, EW250RAW, EW400EAN, EW400RAW

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
