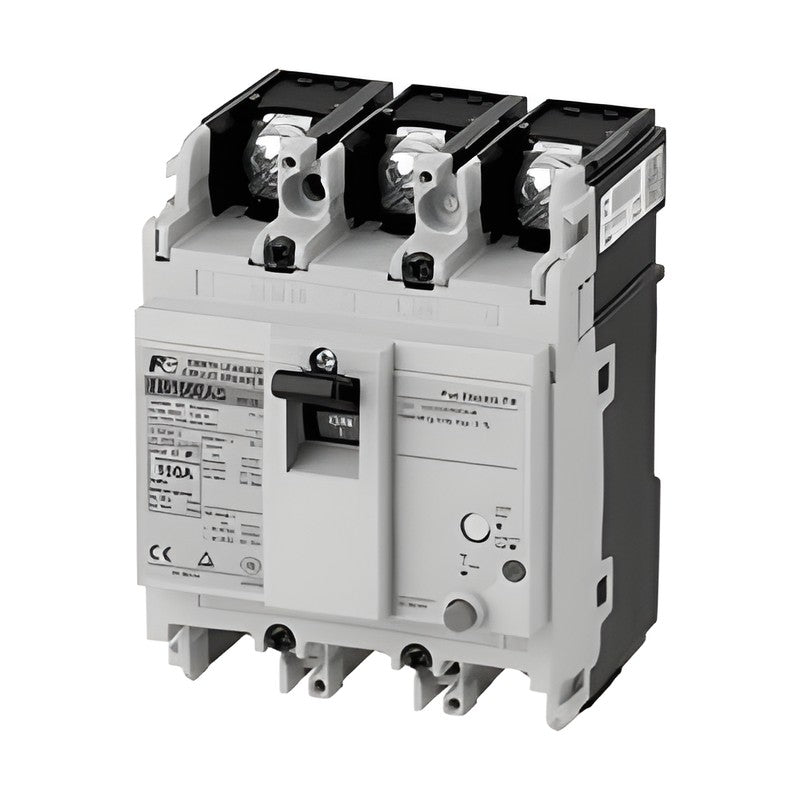

Fuji Electric G-TWIN EW Standard ELCBs (32-800AF)

Fuji Electric G-TWIN EW Standard ELCBs (32-800AF)

G-TWIN EW series general-purpose earth leakage circuit breakers (Standard type) from 32 AF to 800 AF, combining overcurrent and earth-leakage protection in the same footprint as the BW MCCBs.

Key features

  • Frames 32 to 800 AF in AA, EA, JA, SA, RA and HA classes
  • Selectable rated sensitivity currents (e.g. 30, 100/200/500 mA)
  • Same external dimensions as the corresponding BW MCCB
  • Time-delay type EW100EAD available
  • Common accessory system with BW breakers

Specifications

Series G-TWIN
Standards IEC 60947-2, JIS C 8201-2-2, EN 60947-2, GB 14048.2
Rated frequency 50-60 Hz
Ordering Specify poles, rated current and sensitivity
Frame range 32-800 AF
Source Fuji Electric G-TWIN MCCB/ELCB catalogue, p. 9-10, 26-33
EW32AAG Frame: 32 AF | Icu 230/440V: 2.5/- kA | In: 5-32 A | Type: High-speed
EW32EAG Frame: 32 AF | Icu 230/440V: 2.5/1.5 kA | In: 5-32 A | Type: High-speed
EW32SAG Frame: 32 AF | Icu 230/440V: 5/2.5 kA | In: 3-32 A | Type: High-speed
EW50AAG Frame: 50 AF | Icu 230/440V: 2.5/- kA | In: 5-50 A | Type: High-speed
EW50EAG Frame: 50 AF | Icu 230/440V: 5/2.5 kA | In: 5-50 A | Type: High-speed
EW50HAG Frame: 50 AF | Icu 230/440V: 125/65 kA | In: 15-50 A | Type: High-speed
EW50RAG Frame: 50 AF | Icu 230/440V: 25/10 kA | In: 10-50 A | Type: High-speed
EW50SAG Frame: 50 AF | Icu 230/440V: 10/7.5 kA | In: 5-50 A | Type: High-speed
EW63EAG Frame: 63 AF | Icu 230/440V: 5/2.5 kA | In: 60-63 A | Type: High-speed
EW63RAG Frame: 63 AF | Icu 230/440V: 25/10 kA | In: 60-63 A | Type: High-speed
EW63SAG Frame: 63 AF | Icu 230/440V: 10/7.5 kA | In: 60-63 A | Type: High-speed
EW100AAG Frame: 100 AF | Icu 230/440V: 5/- kA | In: 60-100 A | Type: High-speed
EW100EAD Frame: 100 AF | Icu 230/440V: 25/10 kA | In: 50-100 A | Type: Time-delay
EW100EAG Frame: 100 AF | Icu 230/440V: 25/10 kA | In: 50-100 A | Type: High-speed
EW125HAG Frame: 125 AF | Icu 230/440V: 125/65 kA | In: 15-125 A | Type: High-speed
EW125JAG Frame: 125 AF | Icu 230/440V: 50/30 kA | In: 15-125 A | Type: High-speed
EW125RAG Frame: 125 AF | Icu 230/440V: 100/50 kA | In: 15-125 A | Type: High-speed
EW250EAG Frame: 250 AF | Icu 230/440V: 36/18 kA | In: 125-250 A | Type: High-speed
EW250HAG Frame: 250 AF | Icu 230/440V: 125/65 kA | In: 125-250 A | Type: High-speed
EW250JAG Frame: 250 AF | Icu 230/440V: 50/30 kA | In: 125-250 A | Type: High-speed
EW250RAG Frame: 250 AF | Icu 230/440V: 100/50 kA | In: 125-250 A | Type: High-speed
EW400EAG Frame: 400 AF | Icu 230/440V: 50/30 kA | In: 250-400 A | Type: High-speed
EW400HAG Frame: 400 AF | Icu 230/440V: 125/70 kA | In: 250-400 A | Type: High-speed
EW400RAG Frame: 400 AF | Icu 230/440V: 100/50 kA | In: 250-400 A | Type: High-speed
EW400SAG Frame: 400 AF | Icu 230/440V: 85/36 kA | In: 250-400 A | Type: High-speed
EW630EAG Frame: 630 AF | Icu 230/440V: 50/36 kA | In: 500-630 A | Type: High-speed
EW630HAG Frame: 630 AF | Icu 230/440V: 125/70 kA | In: 500-630 A | Type: High-speed
EW630RAG Frame: 630 AF | Icu 230/440V: 100/50 kA | In: 500-630 A | Type: High-speed
EW800EAG Frame: 800 AF | Icu 230/440V: 50/36 kA | In: 700-800 A | Type: High-speed
EW800HAG Frame: 800 AF | Icu 230/440V: 125/70 kA | In: 700-800 A | Type: High-speed
EW800RAG Frame: 800 AF | Icu 230/440V: 100/50 kA | In: 700-800 A | Type: High-speed
Earth Leakage Circuit BreakersFuji Electric
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric G-TWIN EW Standard ELCBs (32-800AF)

Brand Fuji Electric·Earth Leakage Circuit Breakers

Available part numbers (31)

EW32AAG, EW32EAG, EW32SAG, EW50AAG, EW50EAG, EW50HAG, EW50RAG, EW50SAG, EW63EAG, EW63RAG + 21 more — see full table ↓

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EW32AAGFrame: 32 AF | Icu 230/440V: 2.5/- kA | In: 5-32 A | Type: High-speed
EW32EAGFrame: 32 AF | Icu 230/440V: 2.5/1.5 kA | In: 5-32 A | Type: High-speed
EW32SAGFrame: 32 AF | Icu 230/440V: 5/2.5 kA | In: 3-32 A | Type: High-speed
EW50AAGFrame: 50 AF | Icu 230/440V: 2.5/- kA | In: 5-50 A | Type: High-speed
EW50EAGFrame: 50 AF | Icu 230/440V: 5/2.5 kA | In: 5-50 A | Type: High-speed
EW50HAGFrame: 50 AF | Icu 230/440V: 125/65 kA | In: 15-50 A | Type: High-speed
EW50RAGFrame: 50 AF | Icu 230/440V: 25/10 kA | In: 10-50 A | Type: High-speed
EW50SAGFrame: 50 AF | Icu 230/440V: 10/7.5 kA | In: 5-50 A | Type: High-speed
EW63EAGFrame: 63 AF | Icu 230/440V: 5/2.5 kA | In: 60-63 A | Type: High-speed
EW63RAGFrame: 63 AF | Icu 230/440V: 25/10 kA | In: 60-63 A | Type: High-speed
EW63SAGFrame: 63 AF | Icu 230/440V: 10/7.5 kA | In: 60-63 A | Type: High-speed
EW100AAGFrame: 100 AF | Icu 230/440V: 5/- kA | In: 60-100 A | Type: High-speed
EW100EADFrame: 100 AF | Icu 230/440V: 25/10 kA | In: 50-100 A | Type: Time-delay
EW100EAGFrame: 100 AF | Icu 230/440V: 25/10 kA | In: 50-100 A | Type: High-speed
EW125HAGFrame: 125 AF | Icu 230/440V: 125/65 kA | In: 15-125 A | Type: High-speed
EW125JAGFrame: 125 AF | Icu 230/440V: 50/30 kA | In: 15-125 A | Type: High-speed
EW125RAGFrame: 125 AF | Icu 230/440V: 100/50 kA | In: 15-125 A | Type: High-speed
EW250EAGFrame: 250 AF | Icu 230/440V: 36/18 kA | In: 125-250 A | Type: High-speed
EW250HAGFrame: 250 AF | Icu 230/440V: 125/65 kA | In: 125-250 A | Type: High-speed
EW250JAGFrame: 250 AF | Icu 230/440V: 50/30 kA | In: 125-250 A | Type: High-speed
EW250RAGFrame: 250 AF | Icu 230/440V: 100/50 kA | In: 125-250 A | Type: High-speed
EW400EAGFrame: 400 AF | Icu 230/440V: 50/30 kA | In: 250-400 A | Type: High-speed
EW400HAGFrame: 400 AF | Icu 230/440V: 125/70 kA | In: 250-400 A | Type: High-speed
EW400RAGFrame: 400 AF | Icu 230/440V: 100/50 kA | In: 250-400 A | Type: High-speed
EW400SAGFrame: 400 AF | Icu 230/440V: 85/36 kA | In: 250-400 A | Type: High-speed
EW630EAGFrame: 630 AF | Icu 230/440V: 50/36 kA | In: 500-630 A | Type: High-speed
EW630HAGFrame: 630 AF | Icu 230/440V: 125/70 kA | In: 500-630 A | Type: High-speed
EW630RAGFrame: 630 AF | Icu 230/440V: 100/50 kA | In: 500-630 A | Type: High-speed
EW800EAGFrame: 800 AF | Icu 230/440V: 50/36 kA | In: 700-800 A | Type: High-speed
EW800HAGFrame: 800 AF | Icu 230/440V: 125/70 kA | In: 700-800 A | Type: High-speed
EW800RAGFrame: 800 AF | Icu 230/440V: 100/50 kA | In: 700-800 A | Type: High-speed
