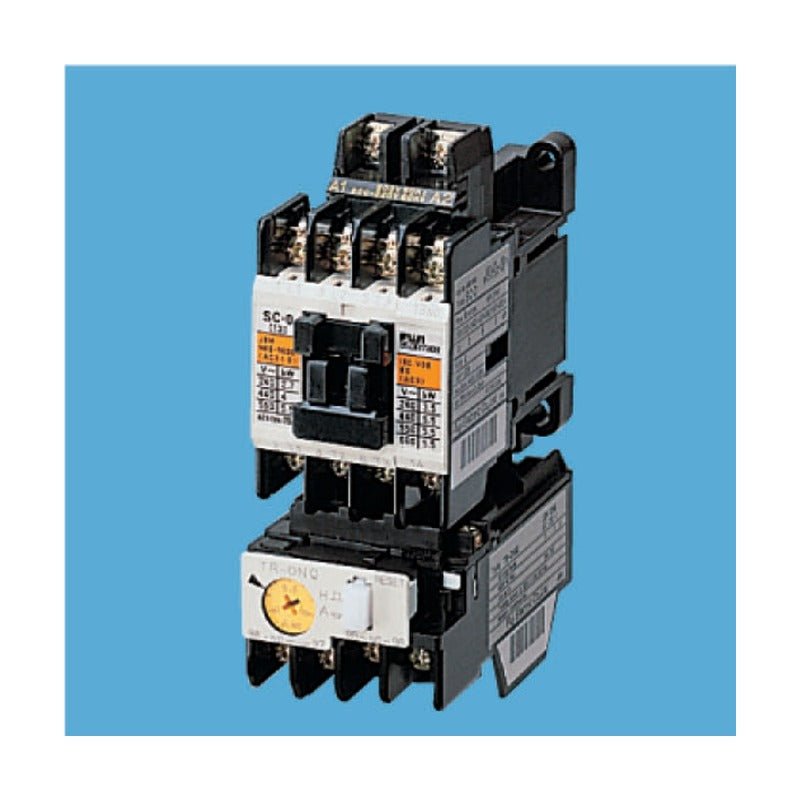

Fuji Electric New SC / NEO SC Magnetic Starters (SW-03 to SW-N14)

Fuji Electric New SC / NEO SC Magnetic Starters (SW-03 to SW-N14)

SW magnetic starters combining a New SC or NEO SC contactor with a matching TR thermal overload relay, frames 03 to N14.

Key features

  • Contactor plus thermal overload relay as one ordered unit
  • Frames SW-03 to SW-N14
  • Order with main circuit voltage, motor capacity, coil voltage and aux contacts
  • Enclosed (case cover) and reversing versions in the type designation
  • Only the SC and TR types are marked on the product

Specifications

Series New SC / NEO SC
Ordering Type + main voltage + motor kW + coil voltage + aux
Example SW-N5 AC200V 22kW coil 200V 4A4B
Frame range 03-N14
Aux contact default 2a2b if unspecified
Source Fuji Electric New SC / NEO SC contactor catalogue, p. 20-23
SW-03 Contactor: SC-03 | Thermal relay: TR-0N | AC-3 200-240V: 2.2kW/11A | AC-3 380-440V: 2.7kW/7A
SW-0 Contactor: SC-0 | Thermal relay: TR-0N | AC-3 200-240V: 2.7kW/13A | AC-3 380-440V: 4kW/9A
SW-05 Contactor: SC-05 | Thermal relay: TR-0N | AC-3 200-240V: 2.7kW/13A | AC-3 380-440V: 4kW/9A
SW-4-0 Contactor: SC-4-0 | Thermal relay: TR-5-1N | AC-3 200-240V: 3.7kW/18A | AC-3 380-440V: 5.5kW/13A
SW-4-1 Contactor: SC-4-1 | Thermal relay: TR-5-1N | AC-3 200-240V: 4kW/19A | AC-3 380-440V: 7.5kW/17A
SW-5-1 Contactor: SC-5-1 | Thermal relay: TR-5-1N | AC-3 200-240V: 4kW/19A | AC-3 380-440V: 7.5kW/17A
SW-N1 Contactor: SC-N1 | Thermal relay: TR-N2 | AC-3 200-240V: 5.5kW/26A | AC-3 380-440V: 11kW/25A
SW-N2 Contactor: SC-N2 | Thermal relay: TR-N2 | AC-3 200-240V: 7.5kW/35A | AC-3 380-440V: 15kW/32A
SW-N2S Contactor: SC-N2S | Thermal relay: TR-N3 | AC-3 200-240V: 11kW/50A | AC-3 380-440V: 22kW/48A
SW-N3 Contactor: SC-N3 | Thermal relay: TR-N3 | AC-3 200-240V: 15kW/65A | AC-3 380-440V: 30kW/65A
SW-N4 Contactor: SC-N4 | Thermal relay: TR-N5 | AC-3 200-240V: 18.5kW/80A | AC-3 380-440V: 37kW/80A
SW-N5A Contactor: SC-N5A | Thermal relay: TR-N5 | AC-3 200-240V: 22kW/93A | AC-3 380-440V: 45kW/90A
SW-N6 Contactor: SC-N6 | Thermal relay: TR-N6 | AC-3 200-240V: 30kW/125A | AC-3 380-440V: 55kW/110A
SW-N7 Contactor: SC-N7 | Thermal relay: TR-N7 | AC-3 200-240V: 37kW/152A | AC-3 380-440V: 75kW/150A
SW-N8 Contactor: SC-N8 | Thermal relay: TR-N8 | AC-3 200-240V: 45kW/180A | AC-3 380-440V: 90kW/180A
SW-N10 Contactor: SC-N10 | Thermal relay: TR-N10 | AC-3 200-240V: 55kW/220A | AC-3 380-440V: 110kW/220A
SW-N11 Contactor: SC-N11 | Thermal relay: TR-N12 | AC-3 200-240V: 75kW/300A | AC-3 380-440V: 150kW/300A
SW-N12 Contactor: SC-N12 | Thermal relay: TR-N12 | AC-3 200-240V: 110kW/400A | AC-3 380-440V: 200kW/400A
SW-N14 Contactor: SC-N14 | Thermal relay: TR-N14 | AC-3 200-240V: 150kW/600A | AC-3 380-440V: 300kW/600A
Magnetic ContactorsFuji Electric
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric New SC / NEO SC Magnetic Starters (SW-03 to SW-N14)

Brand Fuji Electric·Magnetic Contactors

Available part numbers (19)

SW-03, SW-0, SW-05, SW-4-0, SW-4-1, SW-5-1, SW-N1, SW-N2, SW-N2S, SW-N3 + 9 more — see full table ↓

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SW-03Contactor: SC-03 | Thermal relay: TR-0N | AC-3 200-240V: 2.2kW/11A | AC-3 380-440V: 2.7kW/7A
SW-0Contactor: SC-0 | Thermal relay: TR-0N | AC-3 200-240V: 2.7kW/13A | AC-3 380-440V: 4kW/9A
SW-05Contactor: SC-05 | Thermal relay: TR-0N | AC-3 200-240V: 2.7kW/13A | AC-3 380-440V: 4kW/9A
SW-4-0Contactor: SC-4-0 | Thermal relay: TR-5-1N | AC-3 200-240V: 3.7kW/18A | AC-3 380-440V: 5.5kW/13A
SW-4-1Contactor: SC-4-1 | Thermal relay: TR-5-1N | AC-3 200-240V: 4kW/19A | AC-3 380-440V: 7.5kW/17A
SW-5-1Contactor: SC-5-1 | Thermal relay: TR-5-1N | AC-3 200-240V: 4kW/19A | AC-3 380-440V: 7.5kW/17A
SW-N1Contactor: SC-N1 | Thermal relay: TR-N2 | AC-3 200-240V: 5.5kW/26A | AC-3 380-440V: 11kW/25A
SW-N2Contactor: SC-N2 | Thermal relay: TR-N2 | AC-3 200-240V: 7.5kW/35A | AC-3 380-440V: 15kW/32A
SW-N2SContactor: SC-N2S | Thermal relay: TR-N3 | AC-3 200-240V: 11kW/50A | AC-3 380-440V: 22kW/48A
SW-N3Contactor: SC-N3 | Thermal relay: TR-N3 | AC-3 200-240V: 15kW/65A | AC-3 380-440V: 30kW/65A
SW-N4Contactor: SC-N4 | Thermal relay: TR-N5 | AC-3 200-240V: 18.5kW/80A | AC-3 380-440V: 37kW/80A
SW-N5AContactor: SC-N5A | Thermal relay: TR-N5 | AC-3 200-240V: 22kW/93A | AC-3 380-440V: 45kW/90A
SW-N6Contactor: SC-N6 | Thermal relay: TR-N6 | AC-3 200-240V: 30kW/125A | AC-3 380-440V: 55kW/110A
SW-N7Contactor: SC-N7 | Thermal relay: TR-N7 | AC-3 200-240V: 37kW/152A | AC-3 380-440V: 75kW/150A
SW-N8Contactor: SC-N8 | Thermal relay: TR-N8 | AC-3 200-240V: 45kW/180A | AC-3 380-440V: 90kW/180A
SW-N10Contactor: SC-N10 | Thermal relay: TR-N10 | AC-3 200-240V: 55kW/220A | AC-3 380-440V: 110kW/220A
SW-N11Contactor: SC-N11 | Thermal relay: TR-N12 | AC-3 200-240V: 75kW/300A | AC-3 380-440V: 150kW/300A
SW-N12Contactor: SC-N12 | Thermal relay: TR-N12 | AC-3 200-240V: 110kW/400A | AC-3 380-440V: 200kW/400A
SW-N14Contactor: SC-N14 | Thermal relay: TR-N14 | AC-3 200-240V: 150kW/600A | AC-3 380-440V: 300kW/600A
