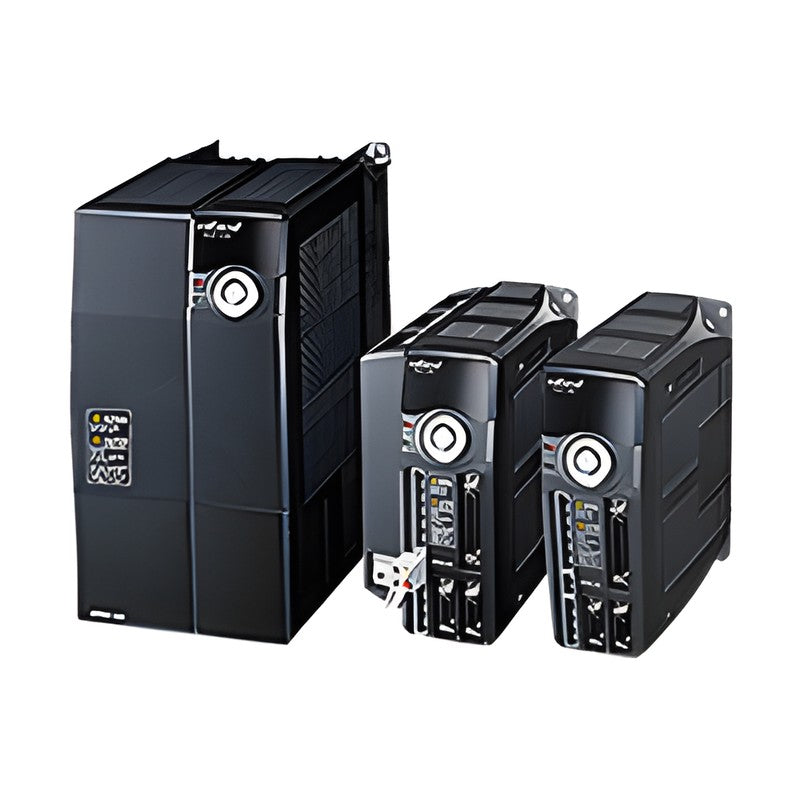

Higen FDA7000 AC Servo Drives (220 V, 100 W-15 kW)

Higen FDA7000 AC Servo Drives (220 V, 100 W-15 kW)

Higen FDA7000 series AC servo drives for 220 VAC, 100 W to 15 kW, matched to Higen FMA CN/CJ, KN, TN, LN, KF, TF and LF servo motors.

Key features

  • Position, speed and torque control
  • Motor ID and drive ID parameter setup
  • Incremental and 11/13/17-bit absolute encoder support
  • Analog monitor, jog operation and alarm history
  • Explosion-proof versions with EX suffix

Specifications

Series FDA7000
Input 3-ph AC 200-230 V (1-ph 230 V on small sizes)
Capacity 100 W to 15 kW
Motors FMA-CN/CJ/KN/TN/LN/KF/TF/LF
Encoder Incremental, absolute 11/13-bit, serial 17-bit
Model format FDA7 + capacity code
Source Higen FDA7000 Series Operation Manual Ver1.7, pp.1-1..1-3
FDA7001 Capacity: 100 W | Input: AC 220 V
FDA7002 Capacity: 200 W | Input: AC 220 V
FDA7004 Capacity: 400 W | Input: AC 220 V
FDA7004B Capacity: 400 W | Input: AC 220 V
FDA7005 Capacity: 500 W | Input: AC 220 V
FDA7010 Capacity: 1 kW | Input: AC 220 V
FDA7015 Capacity: 1.5 kW | Input: AC 220 V
FDA7015B Capacity: 1.5 kW | Input: AC 220 V
FDA7020 Capacity: 2 kW | Input: AC 220 V
FDA7020B Capacity: 2 kW | Input: AC 220 V
FDA7030 Capacity: 3 kW | Input: AC 220 V
FDA7030B Capacity: 3 kW | Input: AC 220 V
FDA7045 Capacity: 4.5 kW | Input: AC 220 V
FDA7075 Capacity: 7.5 kW | Input: AC 220 V
FDA7110 Capacity: 11 kW | Input: AC 220 V
FDA7150 Capacity: 15 kW | Input: AC 220 V
Servo DrivesHigen
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Higen FDA7000 AC Servo Drives (220 V, 100 W-15 kW)

Brand Higen·Servo Drives

Available part numbers (16)

FDA7001, FDA7002, FDA7004, FDA7004B, FDA7005, FDA7010, FDA7015, FDA7015B, FDA7020, FDA7020B + 6 more — see full table ↓

How to order

Send the Higen part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FDA7001Capacity: 100 W | Input: AC 220 V
FDA7002Capacity: 200 W | Input: AC 220 V
FDA7004Capacity: 400 W | Input: AC 220 V
FDA7004BCapacity: 400 W | Input: AC 220 V
FDA7005Capacity: 500 W | Input: AC 220 V
FDA7010Capacity: 1 kW | Input: AC 220 V
FDA7015Capacity: 1.5 kW | Input: AC 220 V
FDA7015BCapacity: 1.5 kW | Input: AC 220 V
FDA7020Capacity: 2 kW | Input: AC 220 V
FDA7020BCapacity: 2 kW | Input: AC 220 V
FDA7030Capacity: 3 kW | Input: AC 220 V
FDA7030BCapacity: 3 kW | Input: AC 220 V
FDA7045Capacity: 4.5 kW | Input: AC 220 V
FDA7075Capacity: 7.5 kW | Input: AC 220 V
FDA7110Capacity: 11 kW | Input: AC 220 V
FDA7150Capacity: 15 kW | Input: AC 220 V
